PR Elecronics 9116 Handbuch Seite 154

LERBAKKEN 10, 8410 ROENDE DENMARK

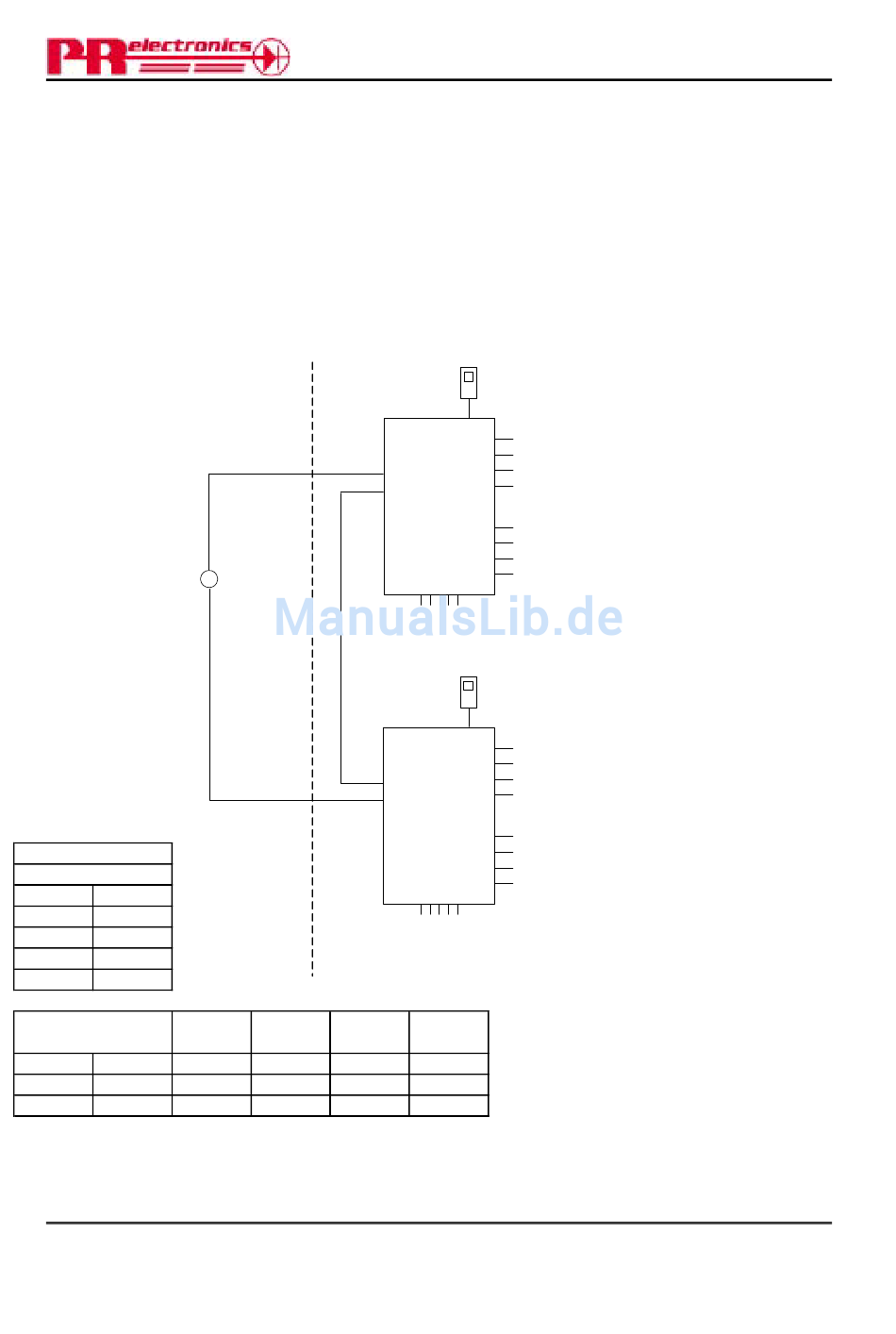

Hazardous Classified Location
Class I / II / III, Division 1, Group A,B,C,D,E,F,G
Class I Zone 0 / 1 / 2 Group IIC, IIB, IIA or
Class I Zone 20 / 21
0/4-20 mA
Current Source
Module 9116B 1/2
Terminal 51-52
Ui, Vmax 30 V
Ii, Imax 120 mA
Pi 900 mW
Ci 3 nF
Li 2 μH
Module 9116B 1/2
Term. 52-51, 51-52
Uo, Voc 16.6 V
IIC or A,B
Io, Isc 0.2 mA
IIB or C,E,F
Po 0.8 mW
IIA or D,G
Revision date:
2010-02-12
54
53
52
51
44
43
42
+
41
-
54
53
52
51
44
43
42
41
Group Co
0.4 μF 100 mH
2.3 μF 100 mH 100mH/Ω
9.5 μF 100 mH 200mH/Ω
Version Revision
V5 R0
Unclassified Location
Hazardous Classified Location
Class I, Division 2 Group A,B,C,D T4
Class I, Zone 2, Group IIC, IIB, IIA T4
-20 ºC ≤Ta ≤ +60ºC
4501
34
33
32
31
14
13
12
11
9116
Power Rail
4501
34
33
32
31
14
13
12
11
9116
Power Rail
Lo Lo/Ro
25mH/Ω
9116QF01
or
Status relay, terminal (33,34)
Non hazardous area installation
Voltage max: 125 VAC / 110 VDC
Power max: 62.5 VA / 32 W
Current max: 0.5 A AC / 0.3 ADC
Zone 2 installation:
Voltage max: 32 VAC/ 32 VDC
Power max: 16 VA / 32 W
Current max: 0.5 A AC / 1 A DC
Relay output, terminal (13,14)
Non hazardous area installation
Voltage max: 250 VAC / 30 VDC
Power max: 500 VA / 60 W
Current max: 2 A AC / 2 ADC
Zone 2 installation
Voltage max: 32 VAC / 30 VDC
Power max: 64 VA / 60 W
Current max: 2 A AC / 2 ADC
(terminal 11,12,13,14)
(terminal 31,32,33,34)
(terminal 91,92,93,94,95)
U 253 V max. 400 Hz
m:
Prepared by:
PB
Page:
4/4
