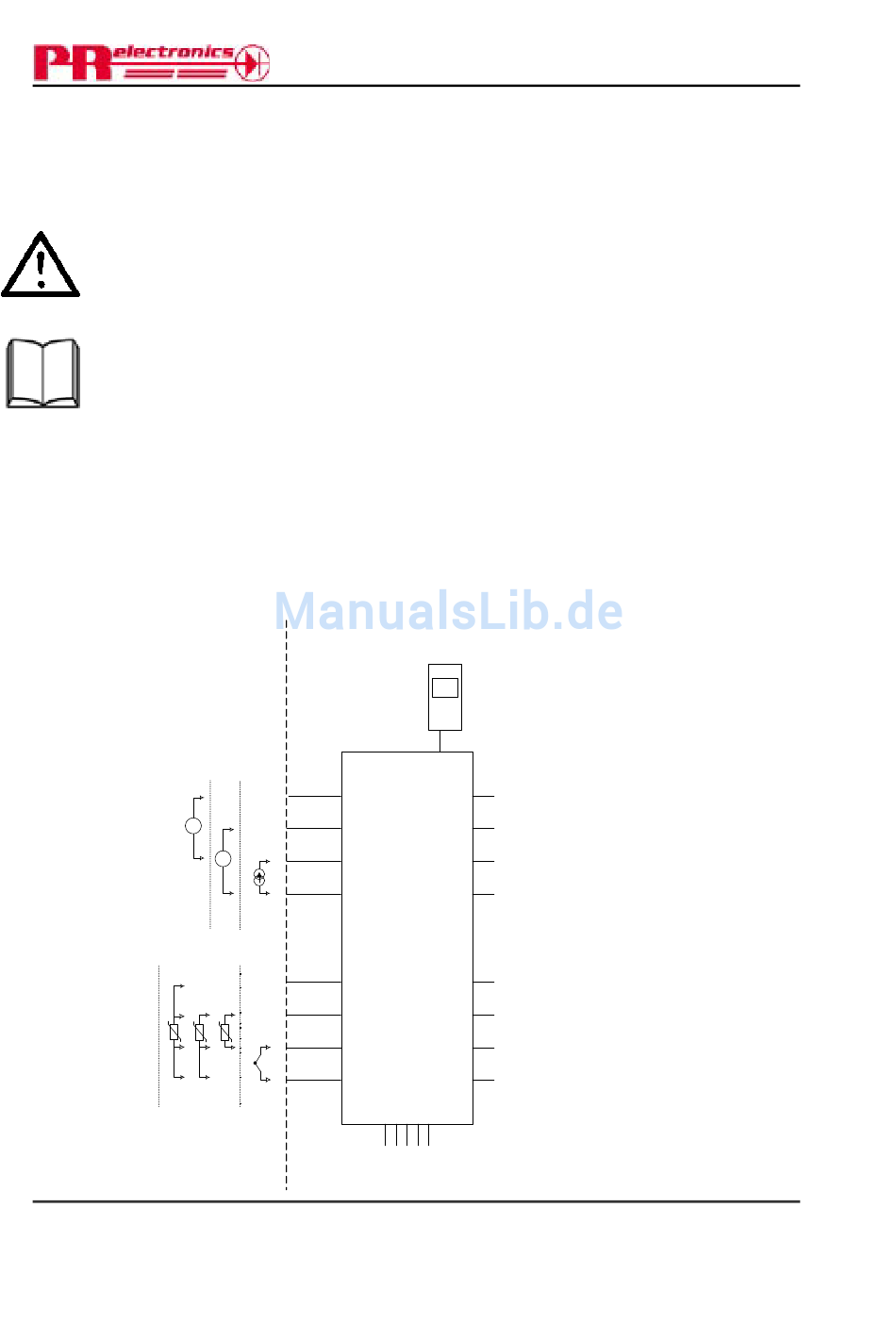

iECEx installation Drawing

LERBAKKEN 10, 8410 ROENDE DENMARK
9116
For safe installation of 9116B the following must be observed. The module shall only be installed by
qualified personnel who are familiar with the national and international laws, directives and
standards that apply to this area.
Year of manufacture can be taken from the first two digits in the serial number.
4501
For Installation in Zone 2 / Division 2 the following must be observed.
The 4501 programming module is to be used solely with PR electronics modules. It is important
that the module is undamaged and has not been altered or modified in any way. Only 4501
modules free of dust and moisture shall be installed.
IECEx Certificate: ...................................................................... .KEM 10.0022X
Marking:.....................................................................................
Standards
Hazardous area
Zone 0, 1, 2, 20, 21 and 22
4- wire
Potm . 2
Potm . 3
Potm . 1
Revision date:
2010-02-12

IECEx Installation drawing

IEC60079-15:2005, IEC60079-11:2006, IEC60079-0:2007
IEC60079-26:2006, IEC61241-0:2004, IEC61241-11:2005
-20 ≤Ta ≤ +60ºC
54
+
+
53
T
+
-
52
+
-
-
51
Loop V mA
44
3- wire 2- wire
43
42
-
+
41
RTD / LinR TC
Version Revision
V5 R0
Ex nA nC IIC T4 Gc
[Ex ia Ga] IIC/IIB/IIA
[Ex ia Da] IIIC
Non Hazardous area
or Zone 2
4501
34
33
32
31
14
13
12
11
9116
Power Rail
Prepared by:
9116QI01
Status relay, terminal (33,34)
Non hazardous area installation
Voltage max: 125 VAC / 110 VDC
Power max: 62.5 VA / 32 W
Current max: 0.5 A AC / 0.3 ADC
Zone 2 installation:
Voltage max: 32 VAC/ 32 VDC
Power max: 16 VA / 32 W
Current max: 0.5 A AC / 1 A DC
Relay output, terminal (13,14)
Non hazardous area installation
Voltage max: 250VAC / 30VDC
Power max: 500VA / 60W
Current max: 2A AC / 2ADC
Zone 2 installation
Voltage max: 32 VAC / 30 VDC
Power max: 64 VA / 60 W
Current max: 2 A AC / 2 ADC
(terminal 11,12,13,14)
(terminal 31,32,33,34)
(terminal 91,92,93,94,95)
U : 253 V; max. 400 Hz
m
PB
Page:
1/4
