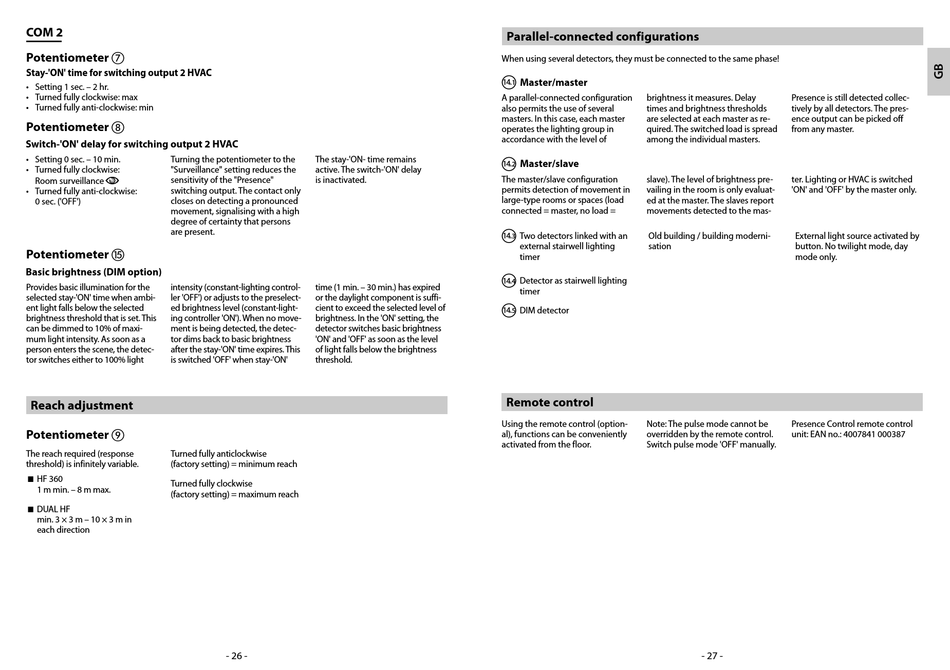

Remote Control - STEINEL HF 360 COM 1 Information

COM 2
Potentiometer g
Stay-'ON' time for switching output 2 HVAC
• Setting 1 sec. – 2 hr.
• Turned fully clockwise: max
• Turned fully anti-clockwise: min
Potentiometer h
Switch-'ON' delay for switching output 2 HVAC
• Setting 0 sec. – 10 min. Turning the potentiometer to the
• T urned fully clockwise: "Surveillance" setting reduces the
sensitivity of the "Presence"
Room surveillance
switching output. The contact only
• Turned fully anti-clockwise:
closes on detecting a pronounced
0 sec. ('OFF')
movement, signalising with a high
degree of certainty that persons
are present.
Potentiometer o
Basic brightness (DIM option)
Provides basic illumination for the intensity (constant-lighting control-
selected stay-'ON' time when ambi- ler 'OFF') or adjusts to the preselect-
ent light falls below the selected ed brightness level (constant-light-
brightness threshold that is set. This ing controller 'ON'). When no move-
can be dimmed to 10% of maxi- ment is being detected, the detec-
mum light intensity. As soon as a tor dims back to basic brightness
person enters the scene, the detec- after the stay-'ON' time expires. This
tor switches either to 100% light is switched 'OFF' when stay-'ON'
Reach adjustment
Potentiometer i
The reach required (response Turned fully anticlockwise
threshold) is infinitely variable. (factory setting) = minimum reach
< HF 360
Turned fully clockwise
1 m min. – 8 m max.
(factory setting) = maximum reach
< DUAL HF
min. 3 × 3 m – 10 × 3 m in
each direction
The stay-'ON- time remains
active. The switch-'ON' delay
is inactivated.
time (1 min. – 30 min.) has expired
or the daylight component is suffi-
cient to exceed the selected level of
brightness. In the 'ON' setting, the
detector switches basic brightness
'ON' and 'OFF' as soon as the level
of light falls below the brightness
threshold.
- 26 -
Parallel-connected configurations
When using several detectors, they must be connected to the same phase!

Master/master
1 4.
1
A parallel-connected configuration brightness it measures. Delay
also permits the use of several times and brightness thresholds
masters. In this case, each master are selected at each master as re-
operates the lighting group in
quired. The switched load is spread
accordance with the level of among the individual masters.

Master/slave
1 4.
2
The master/slave configuration slave). The level of brightness pre-
permits detection of movement in vailing in the room is only evaluat-
large-type rooms or spaces (load ed at the master. The slaves report
connected = master, no load = movements detected to the mas-

Two detectors linked with an Old building / building moderni-
1 4.
3
external stairwell lighting sation
timer

Detector as stairwell lighting
1 4.
4
timer

1 4. DIM detector
5

Remote control

Using the remote control (option- Note: The pulse mode cannot be
al), functions can be conveniently overridden by the remote control.
activated from the floor. Switch pulse mode 'OFF' manually.
Presence is still detected collec-
tively by all detectors. The pres-
ence output can be picked off
from any master.
ter. Lighting or HVAC is switched
'ON' and 'OFF' by the master only.
External light source activated by
button. No twilight mode, day
mode only.
Presence Control remote control
unit: EAN no.: 4007841 000387
