3. ASSEMBLY INSTRUCTIONS

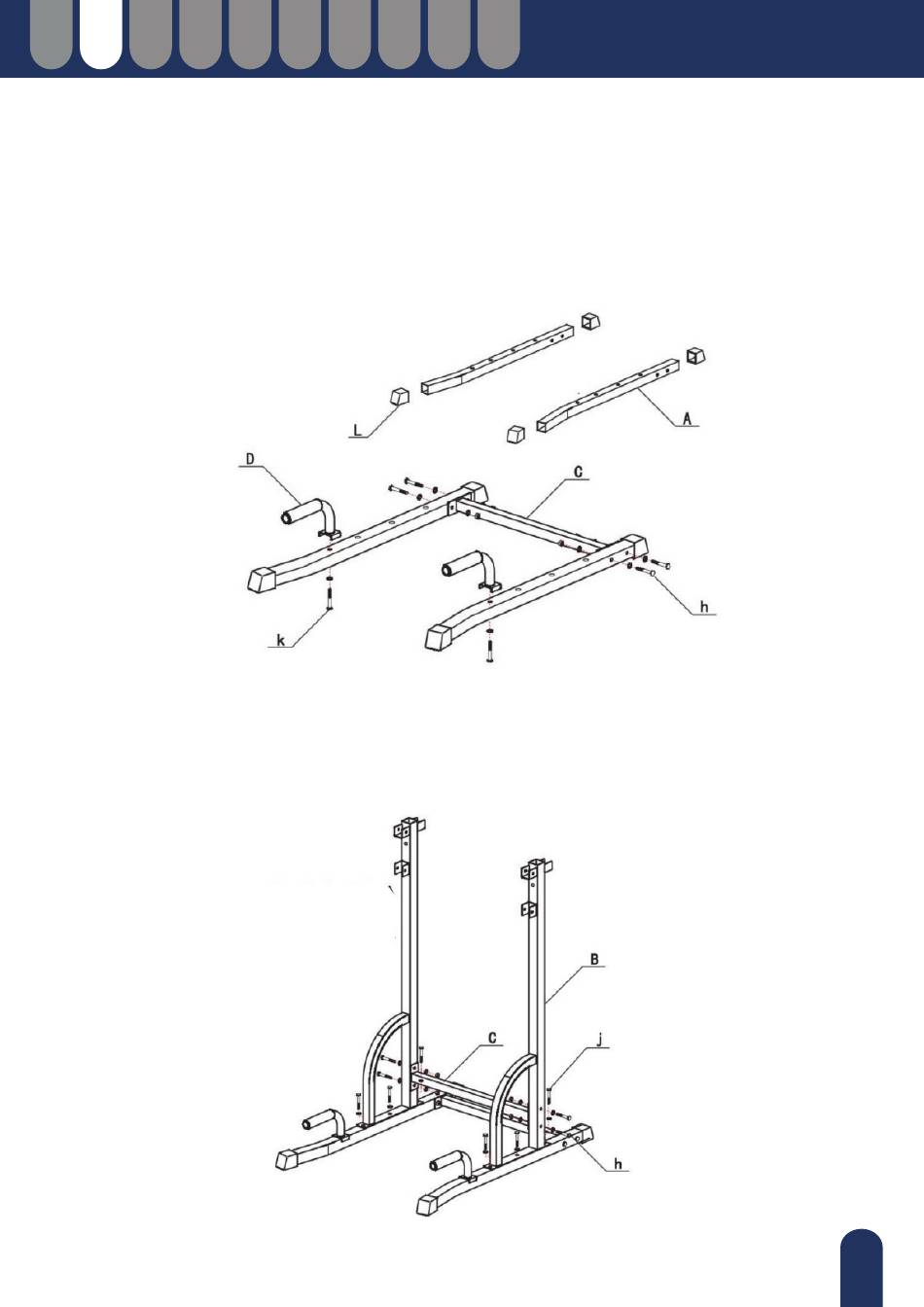

Step 1.
Fit two pieces of the foot tube (A) with the tube covers (L). Connect both foot tubes with the connecting
tube (C) and with 4 sets of screws of the combination(h) listed in the table - Screw (M8+55) + Washer (M8)
+ Nut (M8). Fit both L-handles (D) with the 2 sets of screws of the combination (k) listed in the table -
Screw (M10+55) + Washer (M10) into the foot tubes (A).
Step 2.
Connect the main tubes (B) to the foot tubes (A) with 6 sets of combination screws (j) - Screw (M10*45)
+ Washer (M10). Then connect the main tube (B) and the connecting tube (C) with 4 sets of combination
screws (h) - Screw (M8*55) + Washer (M8) + Nut (M8).
