* Precautions:
01. Do not disassemble the laser module after calibration, otherwise
recalibration is required;

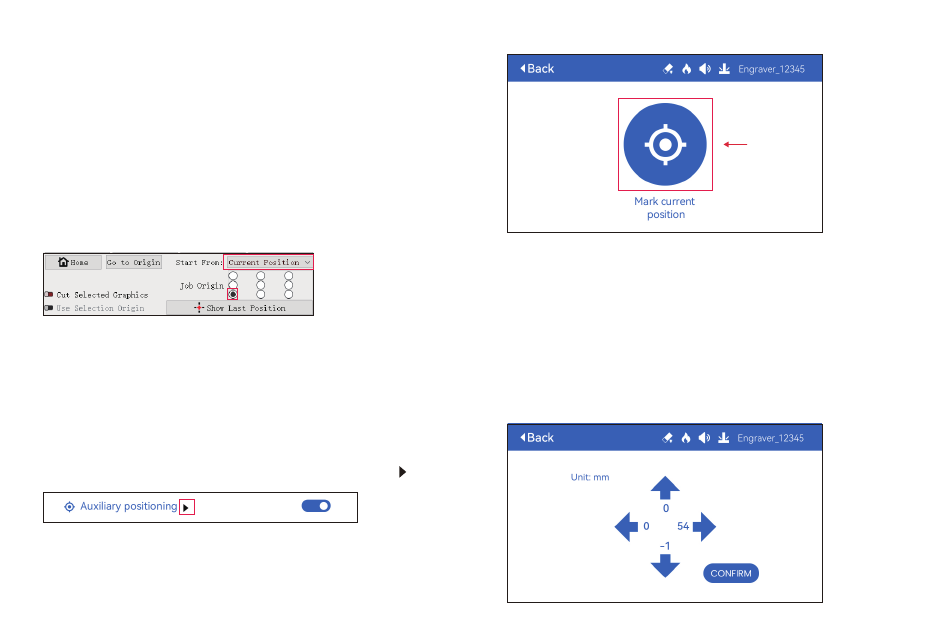

02. When LightBurn exports the .gc file, you need to select the
current position - set the lower left corner as the starting point to
accurately position
03. After turning on, the red cross laser position represents the focus
position of the laser.
How to calibrate
01. After opening the "Auxiliary positioning" function, click
02. Click the "Mark current position" button
03. Observe the error between the position of the mark and the cross
laser, if there is an error, proceed to the next step of calibration
04. Click the up, down, left, and right buttons to move the cross laser
light as close as possible to the mark position (error value <1mm),
and click "CONFIRM" after calibration
" "
