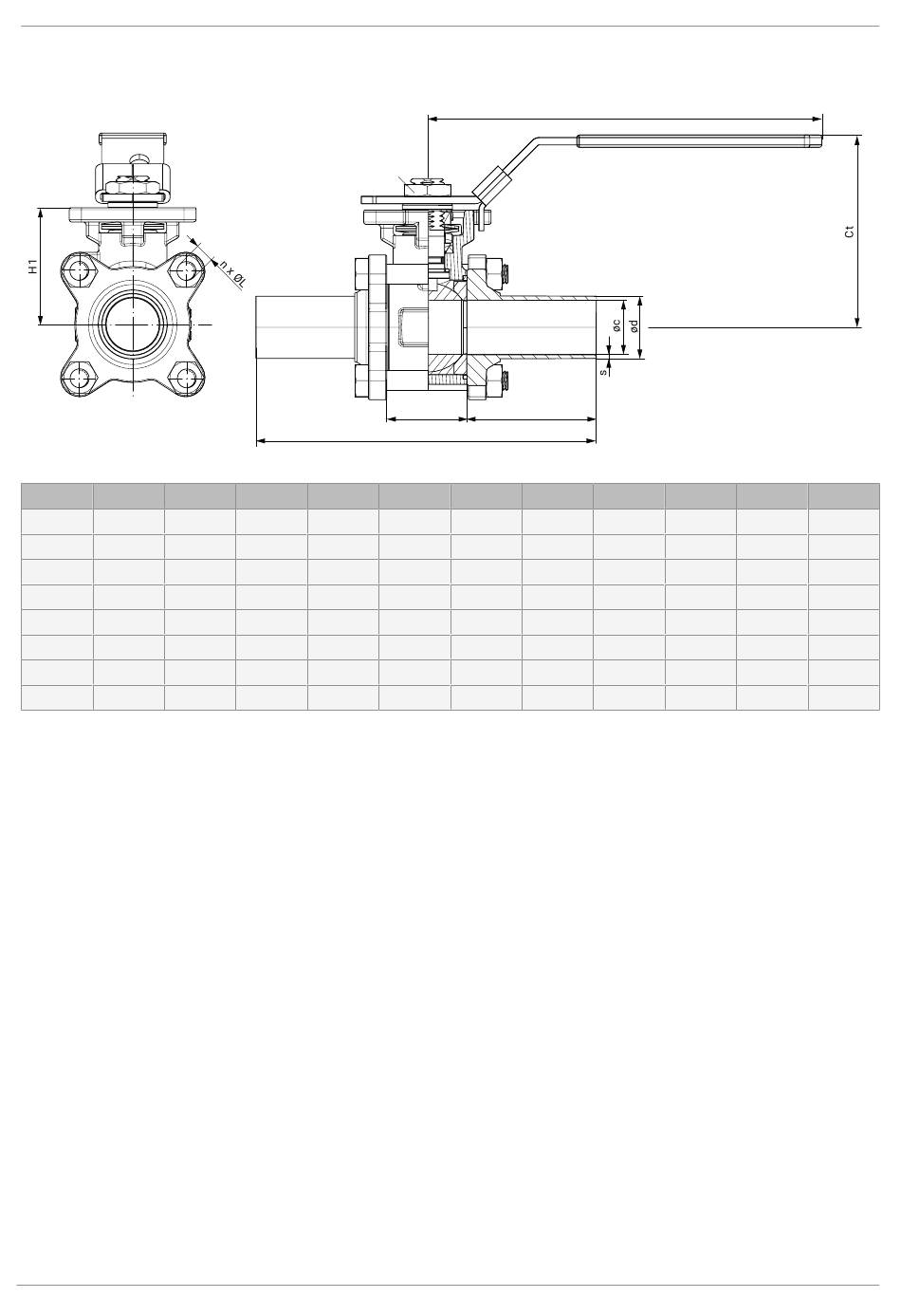

8 Dimensions
8.4 Spigot ASME BPE (connection code 59)
DN øc ød
15 9.40 12.70
20 15.70 19.05
25 22.10 25.40
40 34.80 38.10
50 47.50 50.80
65 60.20 63.50
80 72.90 76.20
100 97.40 101.60
Dimensions in mm
n = number of bolts
GEMÜ B24
SW
LB
L
s L LB
1.65 124.40 25.00
1.65 142.20 28.00
1.65 162.30 32.10
1.65 182.20 46.00
1.65 193.00 59.60
1.65 254.10 77.10
1.65 276.90 91.70
2.10 304.90 118.30
LS
LS H1
49.70 38.00
58.60 38.00
65.10 48.00
68.10 60.00
66.70 69.00
88.50 89.00
92.60 98.00
93.30 130.00
46 / 64
B
n x ØL Ct B
4 x M6 67.60 125.00
4 x M6 67.60 125.00
4 x M8 78.40 160.00
4 x M12 100.80 202.00
4 x M14 109.70 202.00
4 x M14 137.20 300.00
4 x M16 146.20 300.00
6 x M16 185.80 350.00
