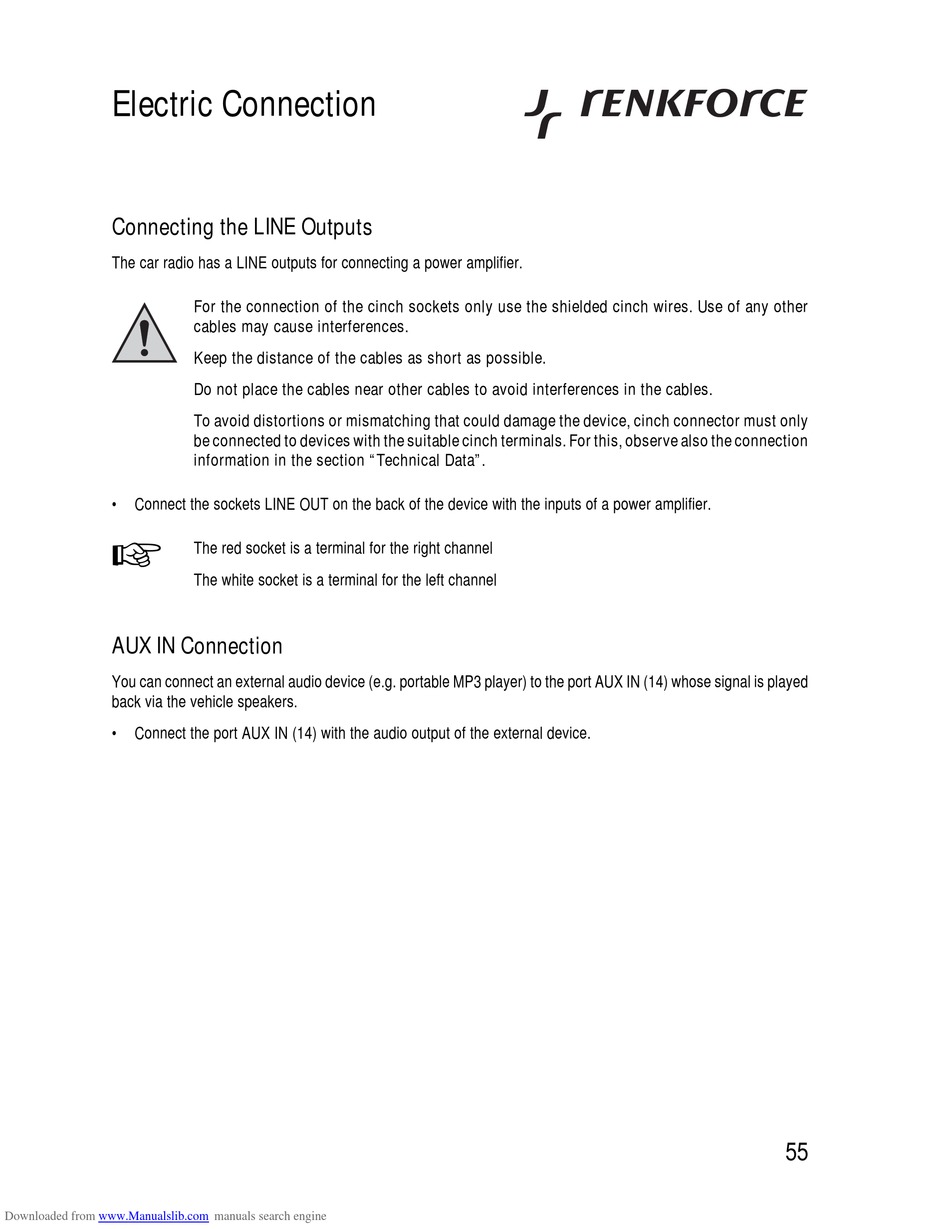

Electric Connection

Connecting the LINE Outputs

The car radio has a LINE outputs for connecting a power amplifier.
• Connect the sockets LINE OUT on the back of the device with the inputs of a power amplifier.


AUX IN Connection

You can connect an external audio device (e.g. portable MP3 player) to the port AUX IN (14) whose signal is played
back via the vehicle speakers.
• Connect the port AUX IN (14) with the audio output of the external device.
Downloaded from www.Manualslib.com
For the connection of the cinch sockets only use the shielded cinch wires. Use of any other
cables may cause interferences.
Keep the distance of the cables as short as possible.
Do not place the cables near other cables to avoid interferences in the cables.
To avoid distortions or mismatching that could damage the device, cinch connector must only
be connected to devices with the suitable cinch terminals. For this, observe also the connection
information in the section "Technical Data".
The red socket is a terminal for the right channel
The white socket is a terminal for the left channel
