Activating synchronisation

C
1
2
3
4
5
Lights up continuously
Up to three drive units can be synchronised allowing them to move
simultaneously� This function is required for several cabinets with a
uniform front�

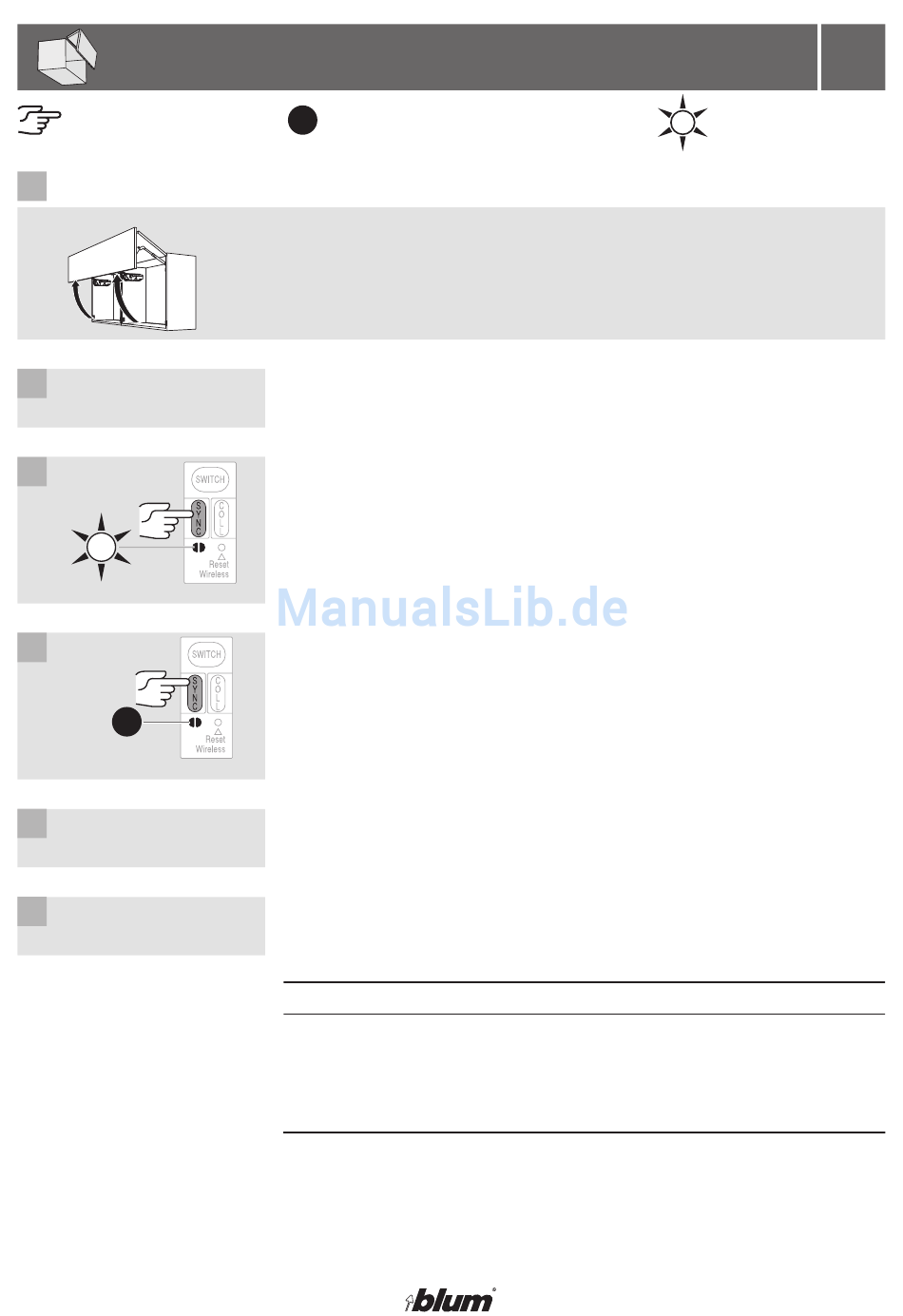

Activating the SERVO-DRIVE switch → see A 1–3�
Press the <SYNC> button for the first drive unit
until the LED flashes green�
Press the <SYNC> button for the second drive unit
unit the LEDs of both synchronised drive units light up green�
Repeat procedure C 2–3 for all additional drive units�
Carry out reference run → see B 1–4�
NOTE
If there is an activation error, reset all drive units
→ see Reset wireless F 1�
Re-activate the SERVO-DRIVE switch, synchronisation and the refer-
ence run → see A 1–3, C 2–4 and B 1–4�
