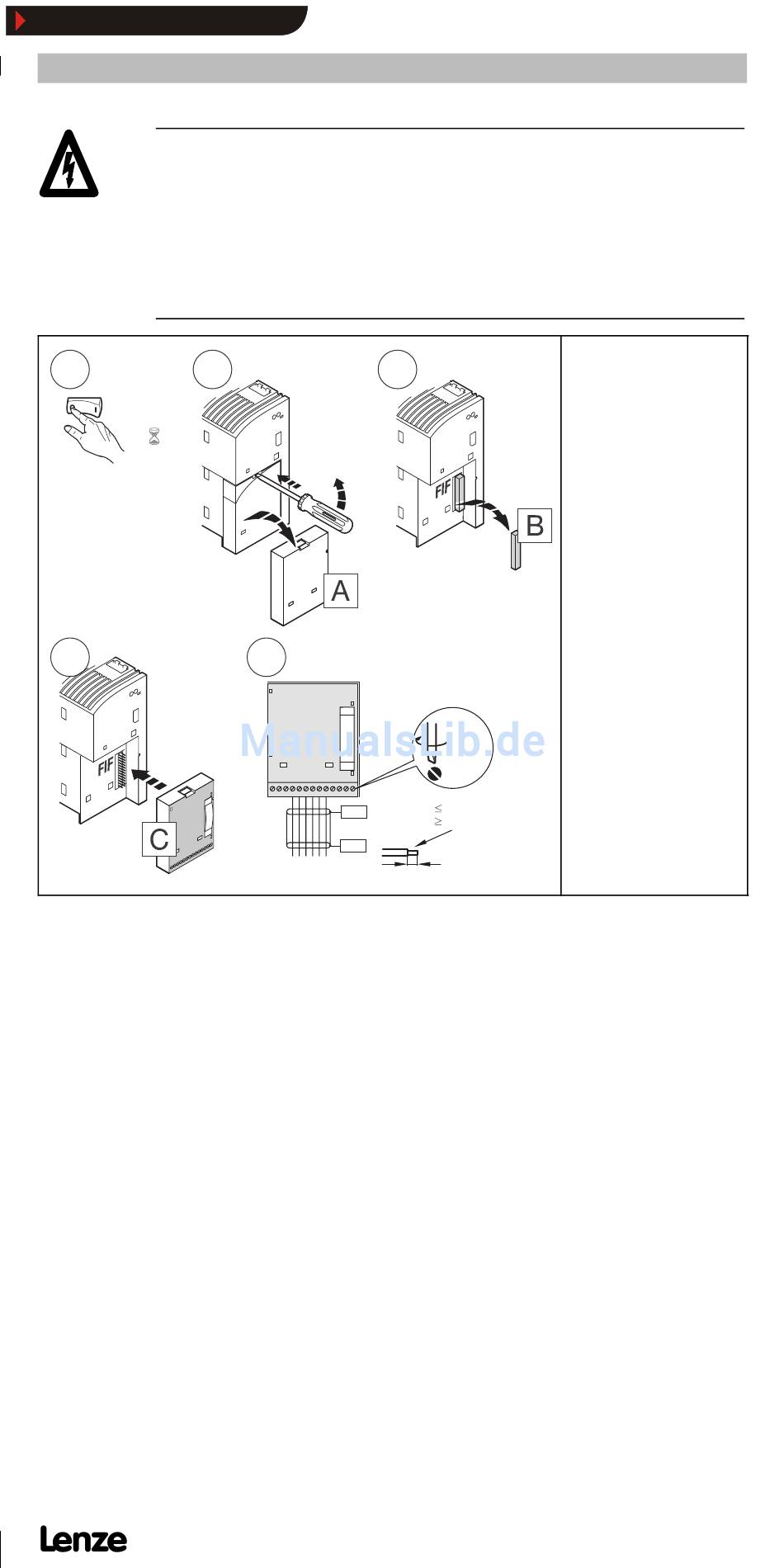

Mechanical installation for 8200 vector
Danger!
The pins of the FIF interface carry dangerous voltage!
l
This function module must only be mounted when the controller is not
connected to the mains.
l
After the disconnection, wait for three minutes before you start working on
the module.
1
OFF
3 min
4
2
5
PES
PES
3
0,5...0,6
Nm
4.4...5.3
lbin
2
1 mm
AWG 18
6mm
8200vec007
- 2 -
1. Disconnect the
controller from the
mains and wait at
least for three
minutes!
2. Remove blanking
0
plate and
preserve.
3. Remove FIF cover
and preserve.
4. Plug fuction module
2
on FIF interface.
5. Wiring: See Mounting
Instructions of the
fuction module.
EDK82ZAFS 1.0
