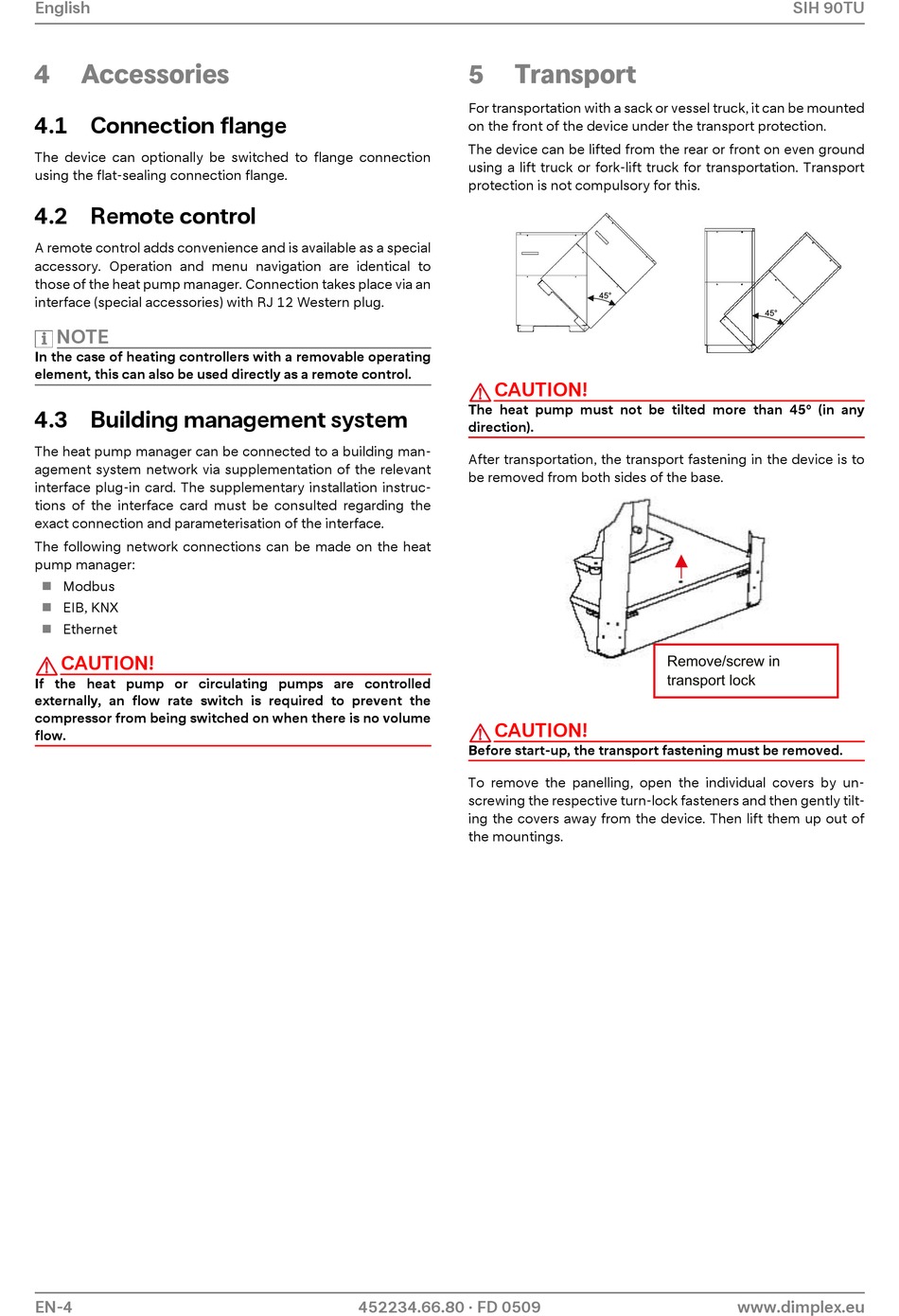

Accessories

4.1 Connection flange

The device can optionally be switched to flange connection
using the flat-sealing connection flange.

4.2 Remote control

A remote control adds convenience and is available as a special
accessory. Operation and menu navigation are identical to
those of the heat pump manager. Connection takes place via an
interface (special accessories) with RJ 12 Western plug.
NOTE
In the case of heating controllers with a removable operating
element, this can also be used directly as a remote control.

4.3 Building management system

The heat pump manager can be connected to a building man-
agement system network via supplementation of the relevant
interface plug-in card. The supplementary installation instruc-
tions of the interface card must be consulted regarding the
exact connection and parameterisation of the interface.
The following network connections can be made on the heat
pump manager:
Modbus

EIB, KNX

Ethernet

CAUTION!
If the heat pump or circulating pumps are controlled
externally, an flow rate switch is required to prevent the
compressor from being switched on when there is no volume
flow.
EN-4
5

Transport

For transportation with a sack or vessel truck, it can be mounted
on the front of the device under the transport protection.
The device can be lifted from the rear or front on even ground
using a lift truck or fork-lift truck for transportation. Transport
protection is not compulsory for this.
CAUTION!
The heat pump must not be tilted more than 45° (in any
direction).
After transportation, the transport fastening in the device is to
be removed from both sides of the base.
CAUTION!
Before start-up, the transport fastening must be removed.
To remove the panelling, open the individual covers by un-
screwing the respective turn-lock fasteners and then gently tilt-
ing the covers away from the device. Then lift them up out of
the mountings.
452234.66.80 · FD 0509
45°
45°
Remove/screw in
transport lock
www.dimplex.eu
SIH 90TU
