SI 70TUR
3

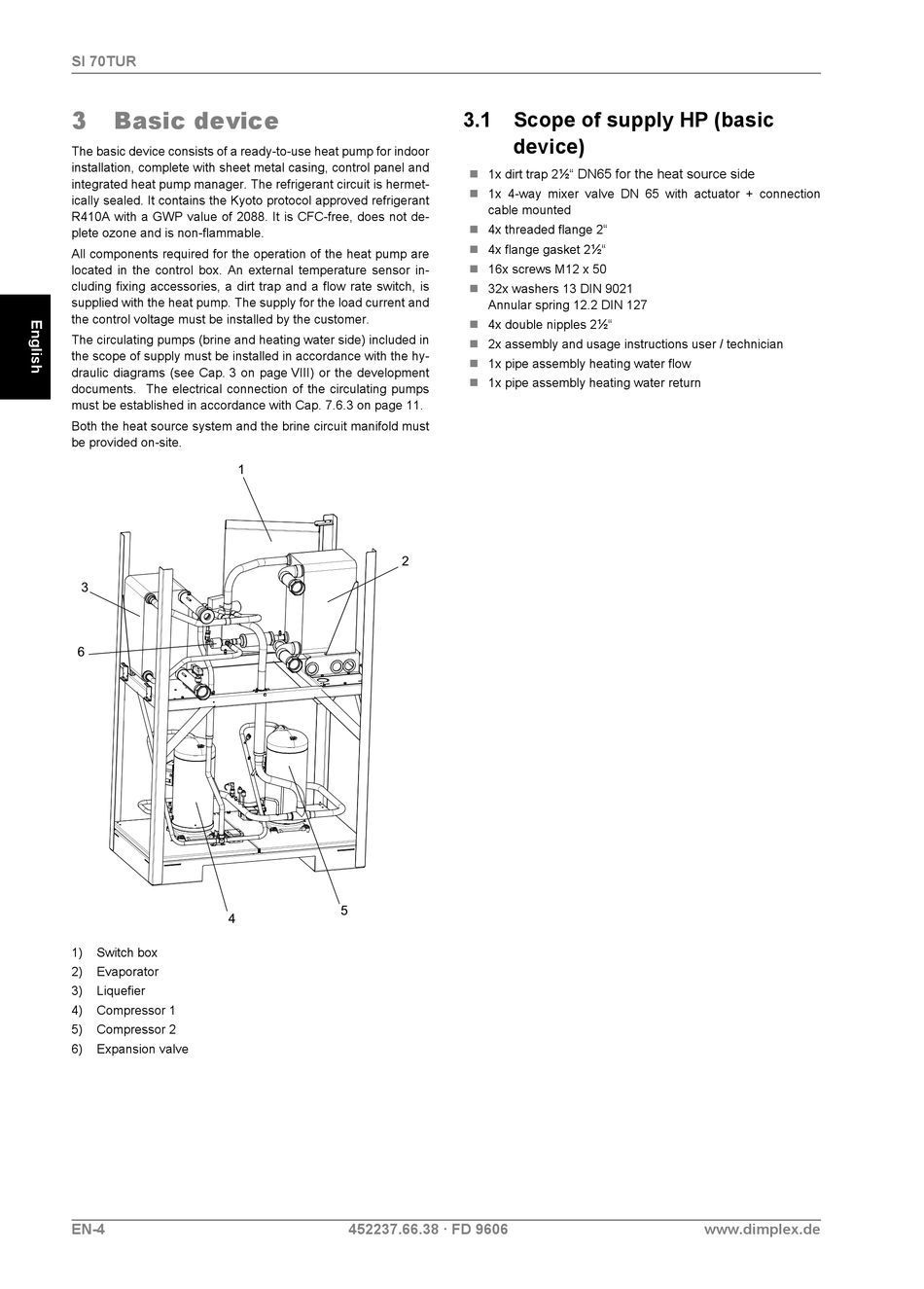

Basic device

The basic device consists of a ready-to-use heat pump for indoor
installation, complete with sheet metal casing, control panel and
integrated heat pump manager. The refrigerant circuit is hermet-
ically sealed. It contains the Kyoto protocol approved refrigerant
R410A with a GWP value of 2088. It is CFC-free, does not de-
plete ozone and is non-flammable.
All components required for the operation of the heat pump are
located in the control box. An external temperature sensor in-
cluding fixing accessories, a dirt trap and a flow rate switch, is
supplied with the heat pump. The supply for the load current and
the control voltage must be installed by the customer.
The circulating pumps (brine and heating water side) included in
the scope of supply must be installed in accordance with the hy-
draulic diagrams (see Cap. 3 on page VIII) or the development
documents. The electrical connection of the circulating pumps
must be established in accordance with Cap. 7.6.3 on page 11.
Both the heat source system and the brine circuit manifold must
be provided on-site.
1
3
6
4
1) Switch box
2) Evaporator
3) Liquefier
4) Compressor 1
5) Compressor 2
6) Expansion valve
EN-4
3.1 Scope of supply HP (basic
device)
 1x dirt trap 2
 1x 4-way mixer valve DN 65 with actuator + connection
cable mounted
 4x threaded flange 2
 4x flange gasket 2
 16x screws M12 x 50
 32x washers 13 DIN 9021
Annular spring 12.2 DIN 127
 4x double nipples 2
 2x assembly and usage instructions user / technician
 1x pipe assembly heating water flow
 1x pipe assembly heating water return
2
5
452237.66.38 · FD 9606
½" DN65 for the heat source side
"
½"
½"
