stargas polaris Montageanleitung Seite 74

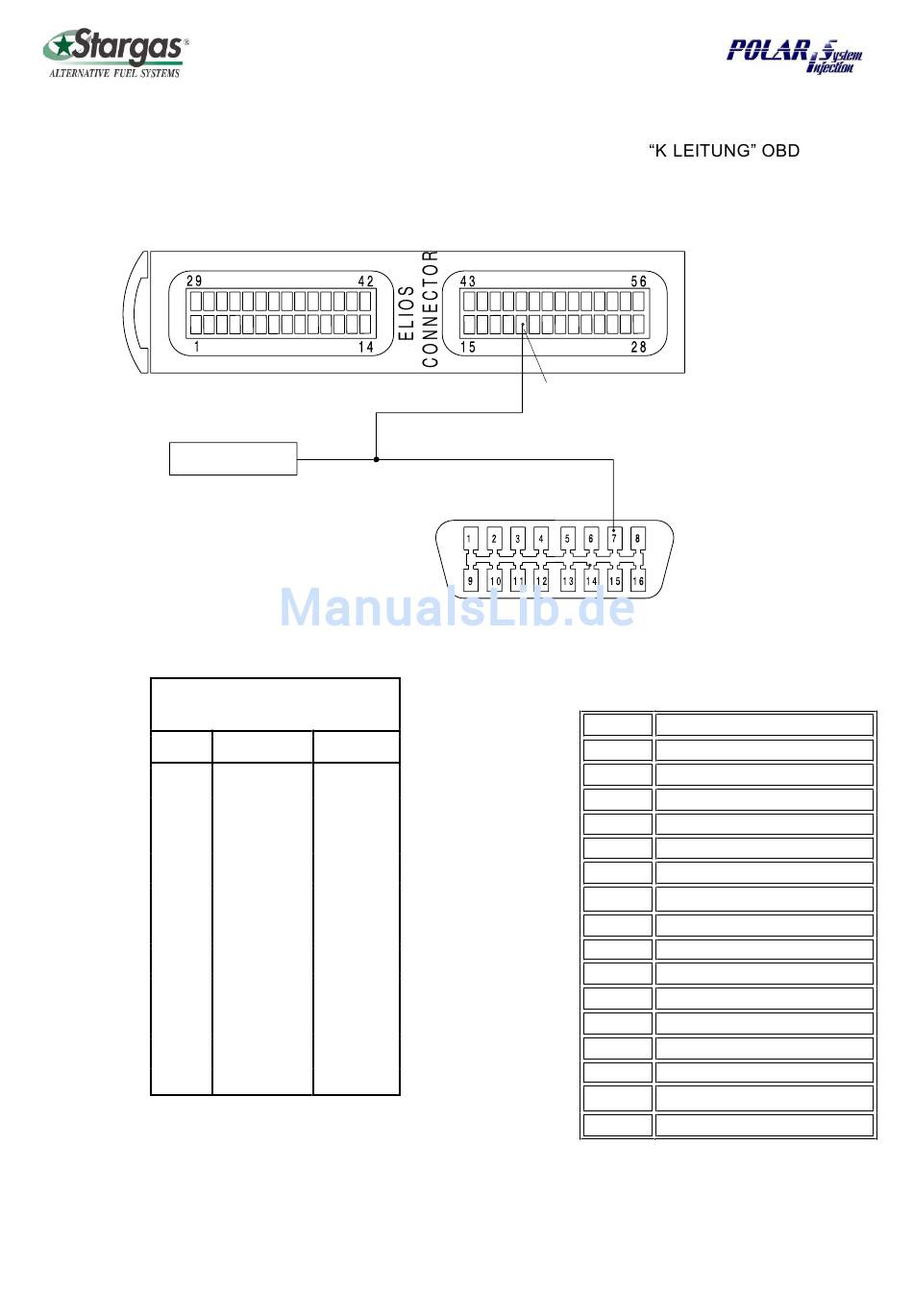

PIN-VERBINDUNGEN PEGASUS OBDII LINEA K
DEN GELBEN DRAHT PIN 19 DES STECKVERBINDERS ELIOS AN PIN 7
BUCHSE ANSCHLIESSEN.
P E T R O L E C U
FARBCODES /
COLOR CODES
CODE FARBE
BK
BN
BU
GN
GY
OR
PK
PU
RD
YE
WH
MONTAGEHANDBUCH
Y E
COLOR
SCHWARZ BLACK
BRAUN BROWN
BLAU BLUE
GRÜN GREEN
GRAU GREY
ORANGE ORANGE
ROSA PINK
VIOLETT PURPLE
ROT RED
GELB YELLOW
WEISS WHITE
1 9
O B D
C O N N E C T O R
Seite 2-42
-
PIN DESCRIZIONE OBDII
1 Specific to manufacturer
2 J-1850 BUS+
3 Specific to manufacturer
4 Vehicle ground (GND)
5 Signal ground (GND)
6 CAN High (J-2284)
7 ISO 9141-2 K-Line
8 Specific to manufacturer
9 Specific to manufacturer
10 J-1850 BUS-
11 Specific to manufacturer
12 Specific to manufacturer
13 Specific to manufacturer
14 CAN Low (J-2284)
15 ISO 9141-2 L-Line or 2. K-Line
16 +12V (+12V Battery)
-
