stargas polaris Montageanleitung Seite 73

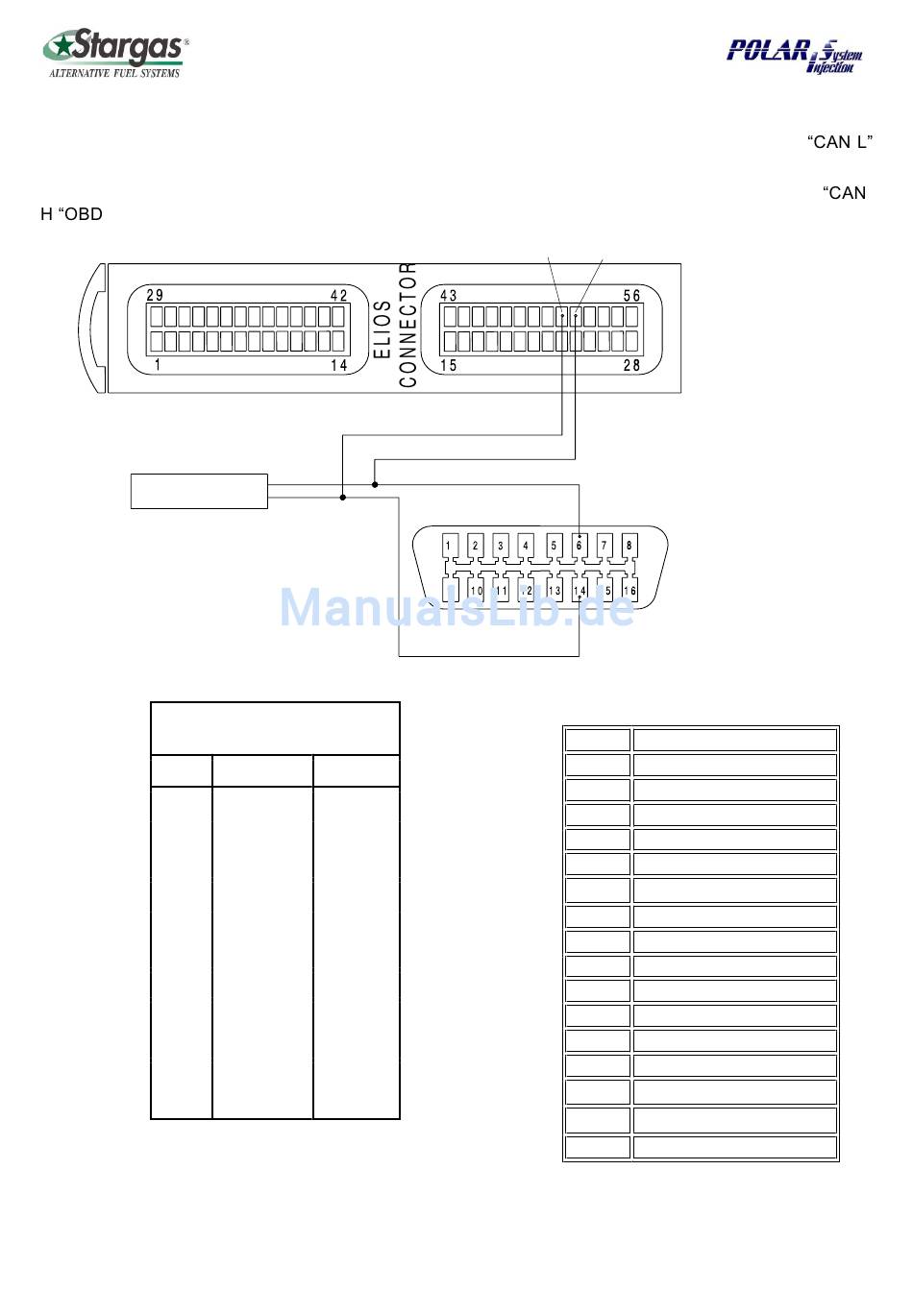

PIN- VERBINDUNGEN PEGASUS OBDII CAN BUS
1) DEN GELBEN/GRÜNEN DRAHT PIN 51 DES STECKVERBINDERS ELIOS AN PIN 14
OBD-BUCHSE ANSCHLIESSEN.
2) DEN GELBEN/SCHWARZEN DRAHT PIN 52 DES STECKVERBINDERS ELIOS AN PIN 6
-BUCHSE ANSCHLIESSEN.
P E T R O L E C U
FARBCODES /
COLOR CODES
CODE FARBE
BK
BN
BU
GN
GY
OR
PK
PU
RD
YE
WH
MONTAGEHANDBUCH
Y E / G N
COLOR
SCHWARZ BLACK
BRAUN BROWN
BLAU BLUE
GRÜN GREEN
GRAU GREY
ORANGE ORANGE
ROSA PINK
VIOLETT PURPLE
ROT RED
GELB YELLOW
WEISS WHITE
5 1
Y E / B K
PIN
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Seite 2-41
5 2
O B D
C O N N E C T O R
DESCRIZIONE OBDII
Specific to manufacturer
J-1850 BUS+
Specific to manufacturer
Vehicle ground (GND)
Signal ground (GND)
CAN High (J-2284)
ISO 9141-2 K-Line
Specific to manufacturer
Specific to manufacturer
J-1850 BUS-
Specific to manufacturer
Specific to manufacturer
Specific to manufacturer
CAN Low (J-2284)
ISO 9141-2 L-Line or 2. K-Line
+12V (+12V Battery)
-
-
