Installation
5.3 Installing the radiator
The radiator comes assembled and packaged in a box. When the cabin is prepared, the radiator is
unpacked and assembled at the installation site.
Note that the emitter is fragile. Unpack the device and do not remove the transport protection
until immediately before assembly.
Unpack the device
►
1. Remove the radiator from the packaging.
2. Remove the safety grille (loosen 8 screws)
and place it next to the radiator.
3. Carefully remove all transport protection
and protective films.

Installing the device

►
4. Create a rectangular opening
167 x 865 mm vertically in the wood.
5. Make sure that the cabin wall above the
radiator is hollow so that the heat can rise
freely.
6. Pull the pre-assembled cable up through
the wall.

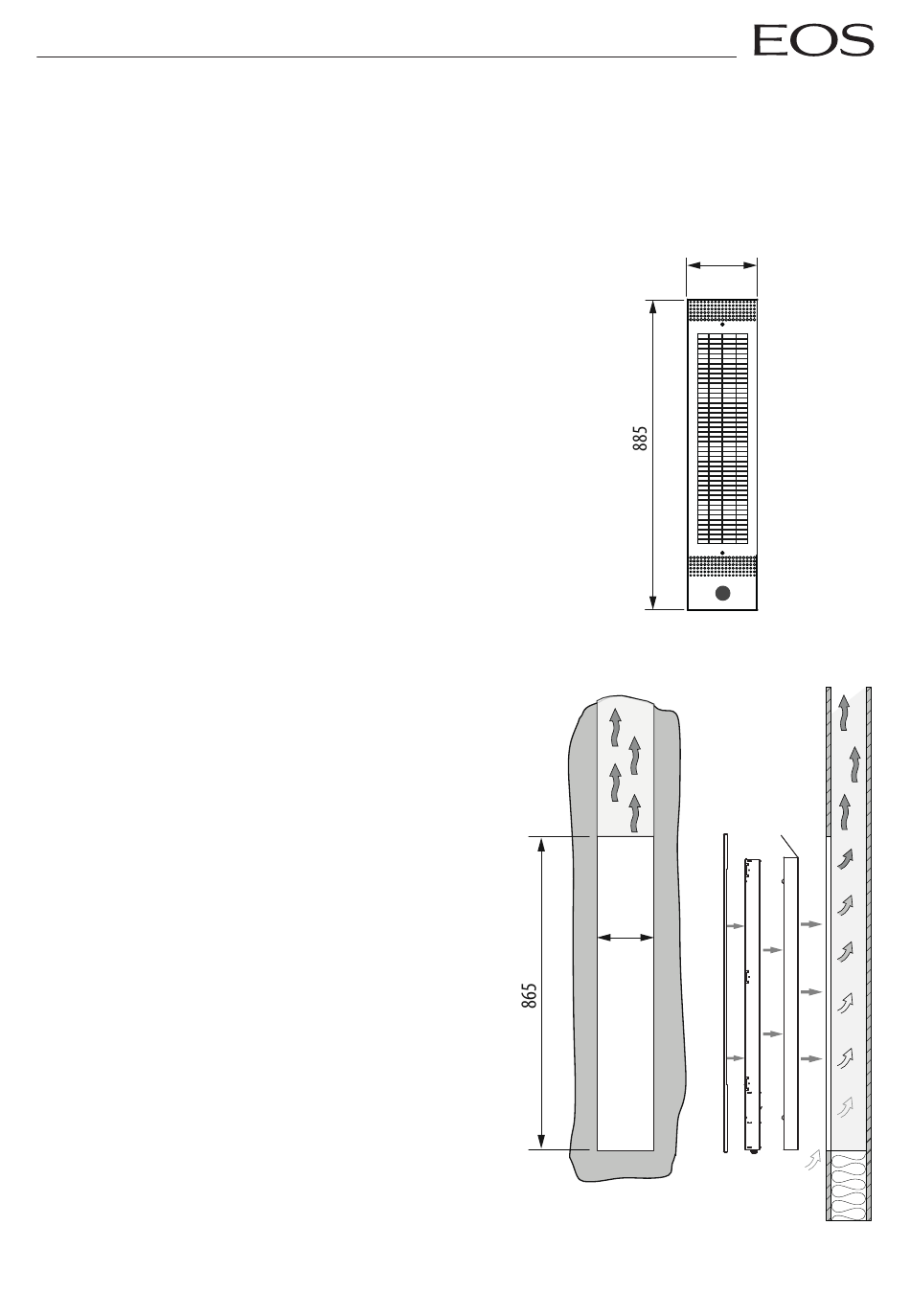

Vitae Protect+ Comact - front and top view
200
Installation opening and wall structure
200
167
167
37
