Installation
C
B
A
WARNING
Risk of fire due to overheating if installed incorrectly
When installed in the ceiling and if there is no or insufficient ventilation behind and above
the IR radiator, the wood can overheat. There is a danger to life due to fire.
Do not install the radiator in the ceiling or a sloping roof.
ƒ
Ensure adequate ventilation in the cabin wall. Do not block the hollow space above
ƒ
the radiator so that the warm air can rise freely.
A B C
164 mm
178 mm
178 mm
167 mm
164 mm
90°
D
167 mm

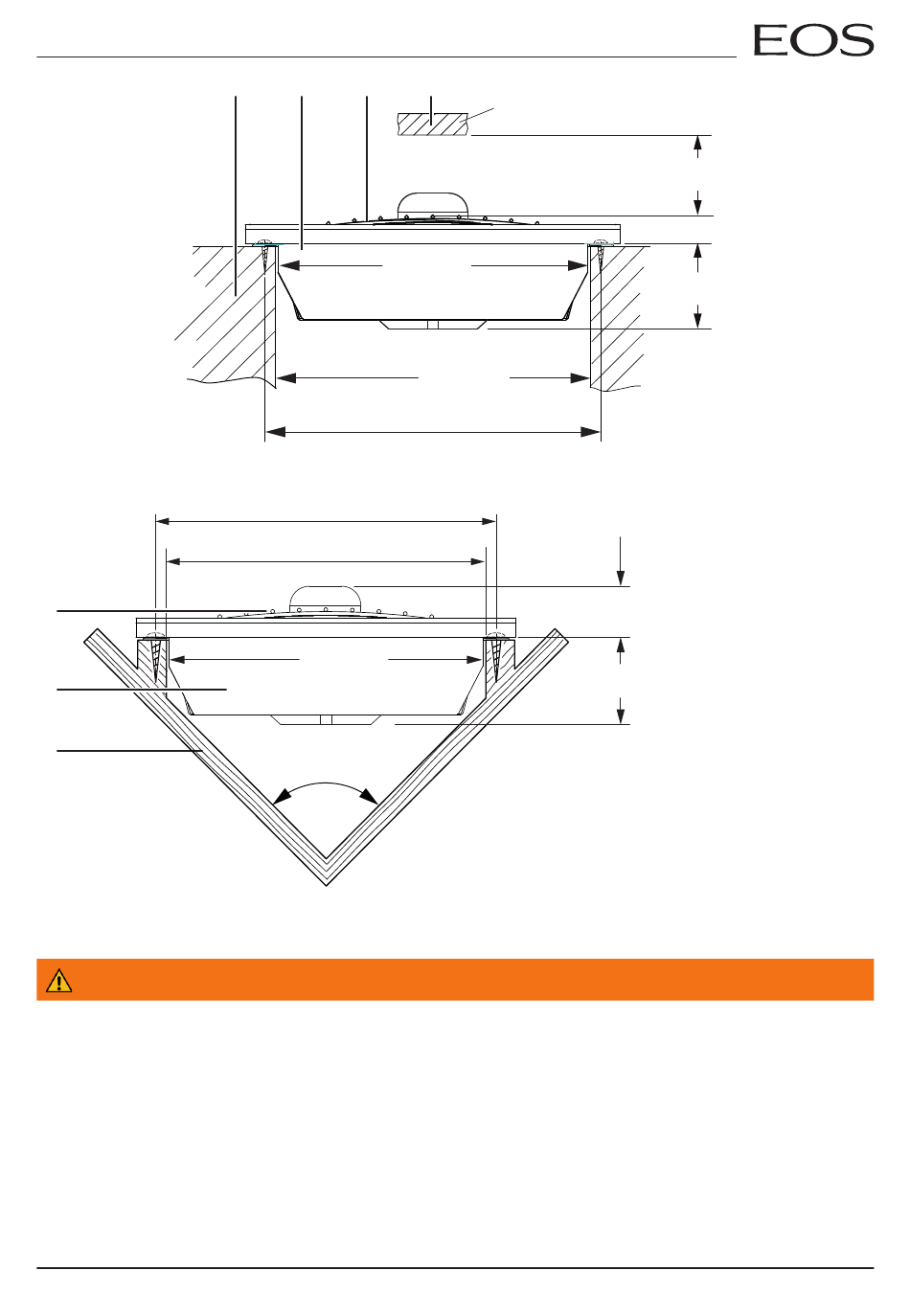

Installation in the cabin wall
30 mm
45 mm
Installation in the cabin corner
min. 40 mm
15 mm
45 mm
A. Cabin wall
B. IR radiator
C. Flocked safety grille
D. Backrest
