EN
6.3
Connecting IR radiators
The connection cable is pre-assembled on the IR radiator. Connect the connection cable to the
control unit according to the connection diagrams.
Connection of up to 5 radiators with
►
optional IR plug-in module
With the optional IR plug-in module, product
code 94 7811, up to 5 radiators can be
connected in a common connection line to
the control unit. The delivery contents of the IR
plug-in module also include the plug-in parts
that are fitted to the individual cables of the
respective radiator.
1. Fit the supplied plug halves onto the wire
ends of the supply cables.
2. Plug individual radiators into the plug-in
module (input).
3. Connect the connecting cable to the control
unit (output).
4. The plug-in module can be fastened with
two screws if required.
Connection of up to 9 radiators with
►
two optional IR plug-in modules
1. With two plug-in modules connected
together in a cascade, as shown on the
right, up to 9 radiators can be connected in
a common connection line.
2. To create the connecting cable (D) between
two plug-in modules, use one plug (male)
and one plug (female) from the delivery
contents of the plug-in modules.
3. Use the 3 x 1.5 mm² cable for this (optionally
available).
4. Connect the two plug-in modules as shown
on the right.
42

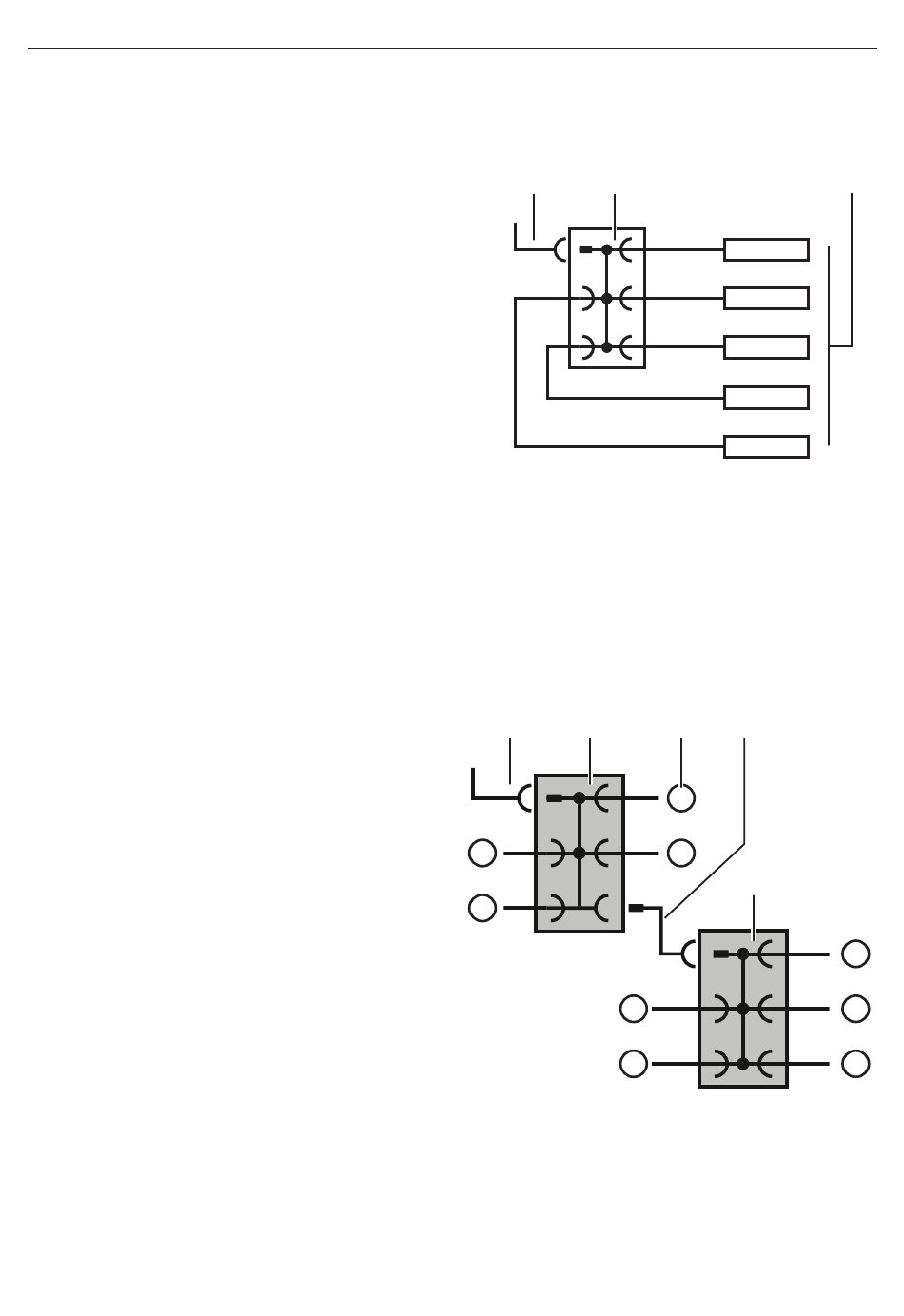

Electrical connection

A B
A. Connection cable to the control unit
B. IR plug-in module product code 94 7811
C. IR radiator (max. 3500 W)
A B
2
4
6
8
A. Connection cable to the control unit
B. IR plug-in module product code 94 7811
C. 1 to 9, IR radiators (total max. 3500 W)
D. Connection between two plug-in modules
C D
1
3
B
C
5
7
9
