Assembly of the water tank near the oven

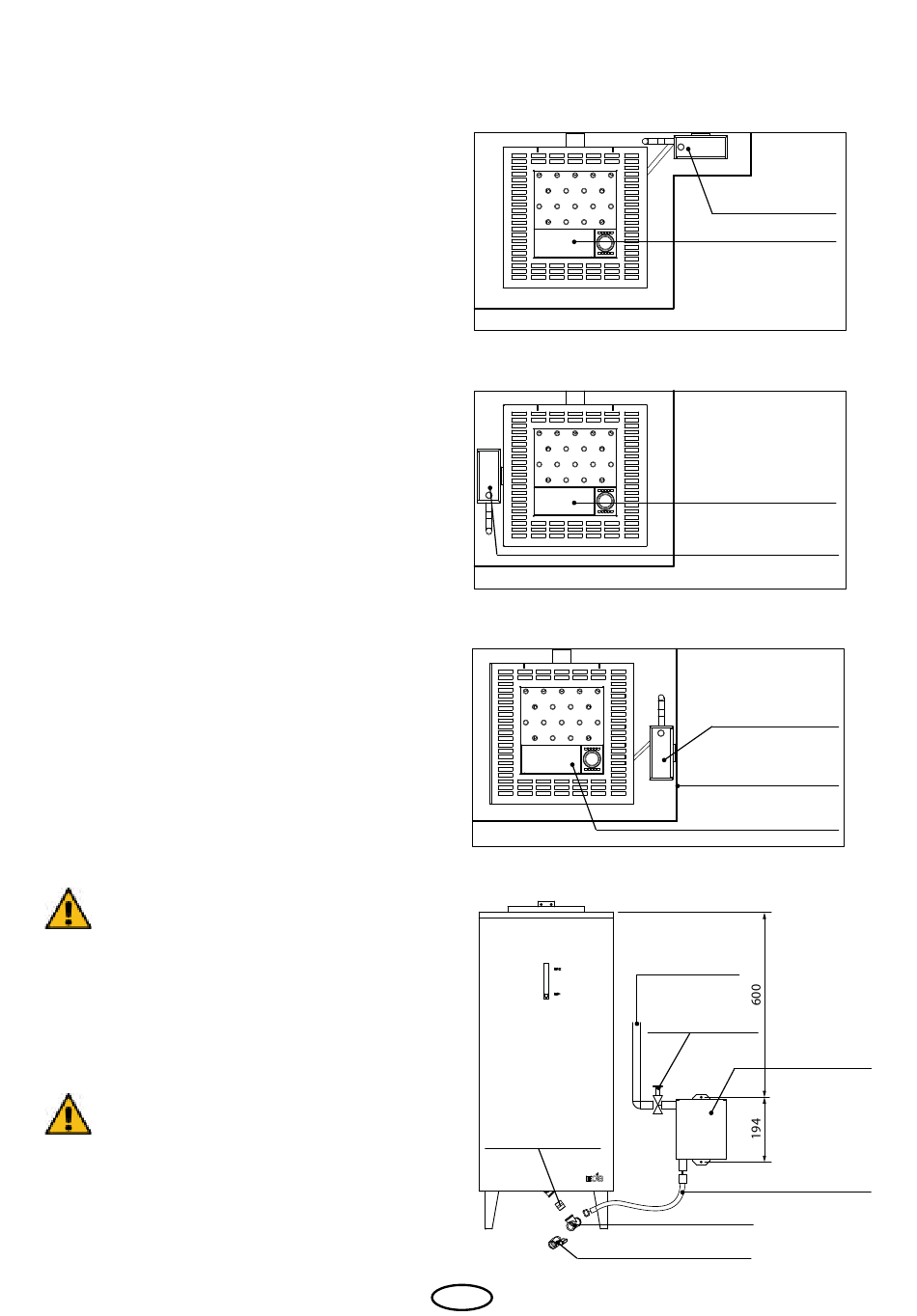

Initially select a fixing option according to (Fig.
3 - Fig. 5)
This applies to the sauna ovens Type Bi-O Cubo.
• Drill the fixing holes Ø 3.4 mm according to
the sizes in fig. 6
• Screw the water tank onto the rear wall using
the 2 4.2x 9.5 self-tapping screws provided.
• Now install the float valve into the tank. En-
sure that the float makes a vertical move-
ment and does not contact the tank wall.
• Make the connection between the water
tank and vaporiser according to fig. 2 and fig.
6.
• There is a 3/4" thread on the float valve out-
put From here you can now connect your
supply line individually to the fixed water
connection.
Please observe:
A shut-off valve must be installed be-
tween the mains and the fixed water connec-
tion. If the fixed water connection is not used
for a longer period of time, the shut-off valve
should be closed.
Caution: operating pressure 3 - max. 10 bar.
Attachment option: wall
Befestigungsmöglichkeit: Wand
Attachment option: heater
Befestigungsmöglichkeit: Wand
Attachment option: protective grating
Befestigungsmöglichkeit: Ofenschutz-Gitter
Double nipple
EN
Water tank
Evaporator
Fig. 3
Fig. 4
Water tank
Evaporator
Fig. 5
Evaporator
Protective grating
for heater
Water tank
Fig. 6
Fixed water
connection
Shut-off valve
Water tank
Water level approx.
1/2 tank height
Reinforced hose
T-joint
Bleeder
