5.2 Installation location and safety distances
Minimum distances from all combustible materials in the radiation range:

Vertical installation

►
Radiator top to the wooden surface min. 7 cm
ƒ
Horizontal distance from the wooden surface min. 4 cm
ƒ
Radiator lower edge from the wooden surface min. 4 cm
ƒ
Front side (safety grille) from the wooden surface min. 4 cm
ƒ
Important: Not suitable for horizontal installation! Only install vertically into the cabin wall.
36
min. 7 cm
min. 4 cm
min. 4 cm

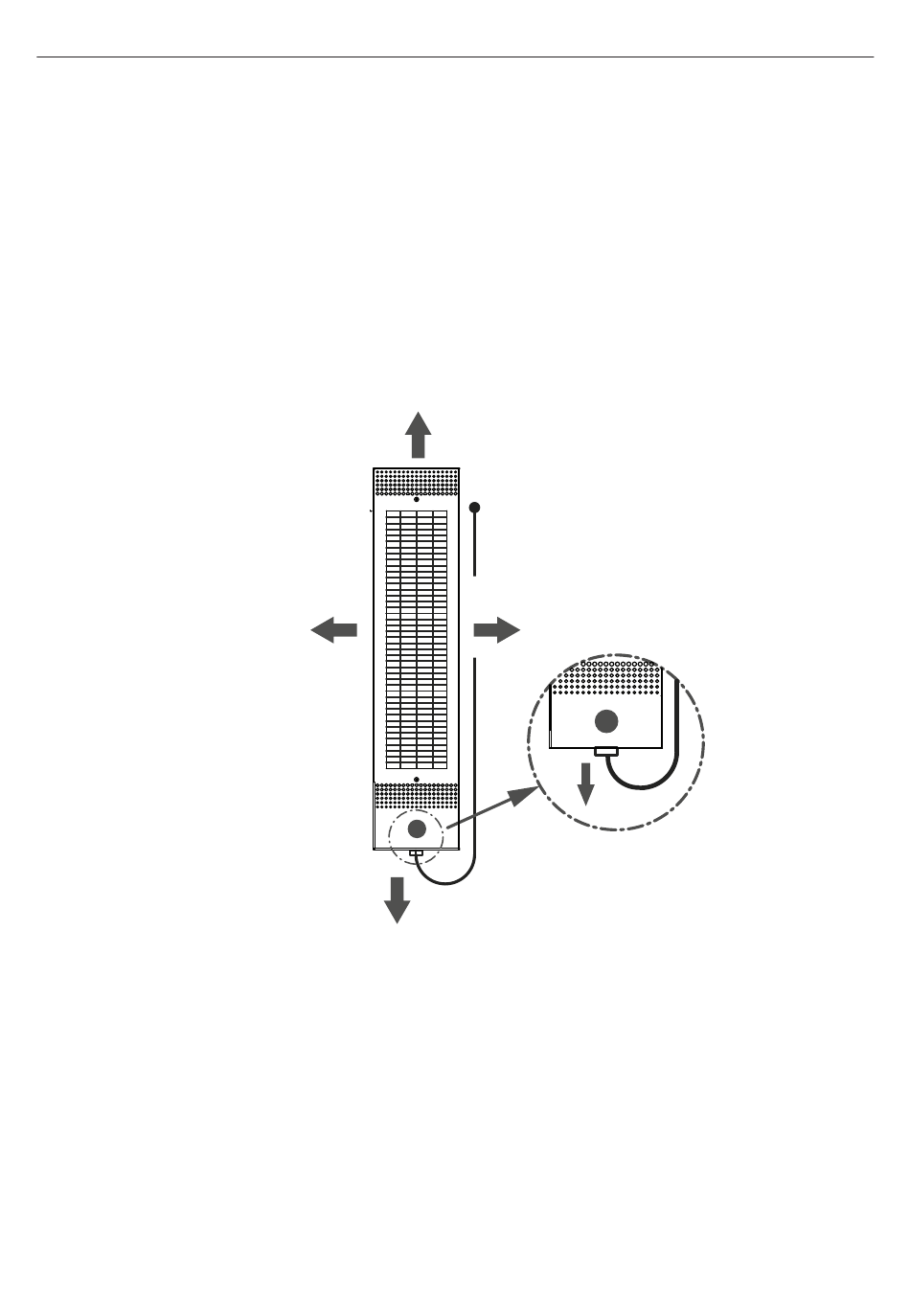

Vitae Protect+ Compact - minimum distances from flammable
materials. Cable connection downwards.
min. 4 cm
Installation
