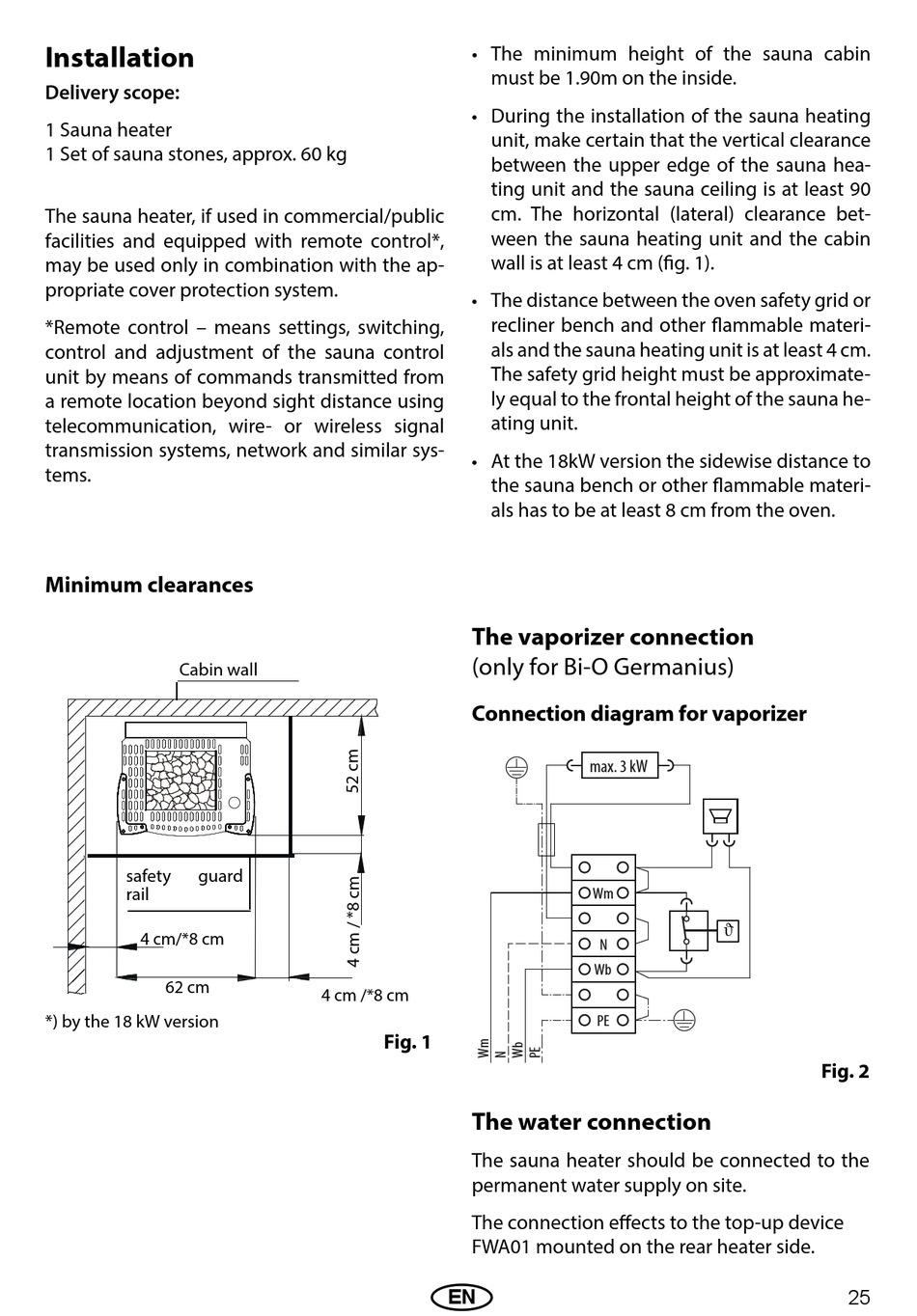

Installation
Delivery scope:
1 Sauna heater
1 Set of sauna stones, approx. 60 kg
The sauna heater, if used in commercial/public
facilities and equipped with remote control*,
may be used only in combination with the ap-
propriate cover protection system.
*Remote control – means settings, switching,
control and adjustment of the sauna control
unit by means of commands transmitted from
a remote location beyond sight distance using
telecommunication, wire- or wireless signal
transmission systems, network and similar sys-
tems.

Minimum clearances

Cabin wall
safety guard
rail
4 cm/*8 cm
62 cm
*) by the 18 kW version
• The minimum height of the sauna cabin
must be 1.90m on the inside.
• During the installation of the sauna heating
unit, make certain that the vertical clearance
between the upper edge of the sauna hea-
ting unit and the sauna ceiling is at least 90
cm. The horizontal (lateral) clearance bet-
ween the sauna heating unit and the cabin
wall is at least 4 cm (fig. 1).
• The distance between the oven safety grid or
recliner bench and other flammable materi-
als and the sauna heating unit is at least 4 cm.
The safety grid height must be approximate-
ly equal to the frontal height of the sauna he-
ating unit.
• At the 18kW version the sidewise distance to
the sauna bench or other flammable materi-
als has to be at least 8 cm from the oven.
The vaporizer connection
(only for Bi-O Germanius)

Connection diagram for vaporizer

4 cm /*8 cm
Fig. 1

The water connection

The sauna heater should be connected to the
permanent water supply on site.
The connection effects to the top-up device
FWA01 mounted on the rear heater side.
EN
max. 3 kW
Wm

N
Wb
PE
Fig. 2
25
