Note:
After at least one completed import, the series of measurements will be kept within the memory of
the computer until it is deleted or the software is closed.
In the latter case, the software will show a hint that the current series of measurements has not been
saved yet, which means that its complete content will be lost if you close the software (Fig. 9).
If you select "Yes", the series of measurements will be saved, just like when you click on the "Save
a series of measurements in a file" in the toolbar.
6

Calibration

When you are in measurement or settings mode, you have to press the "CAL" key to calibrate the
meter. You will the see the following calibration window (Fig. 16):
Notes
•
The upper area will now show "CAL", which stands for the function of the current
mode. The number next to it shows the conductivity of the calibration block at +20
°C. This should be the value of the calibration block currently used. Further
information on how to set this value can be found in chapter 5.4.5.
•
In the middle of the display, you can see the conductivity value of the tested
calibration block.
•
In the left, lower part of the display, an H (high) or L (low) will appear instead of
the temperature coefficient.

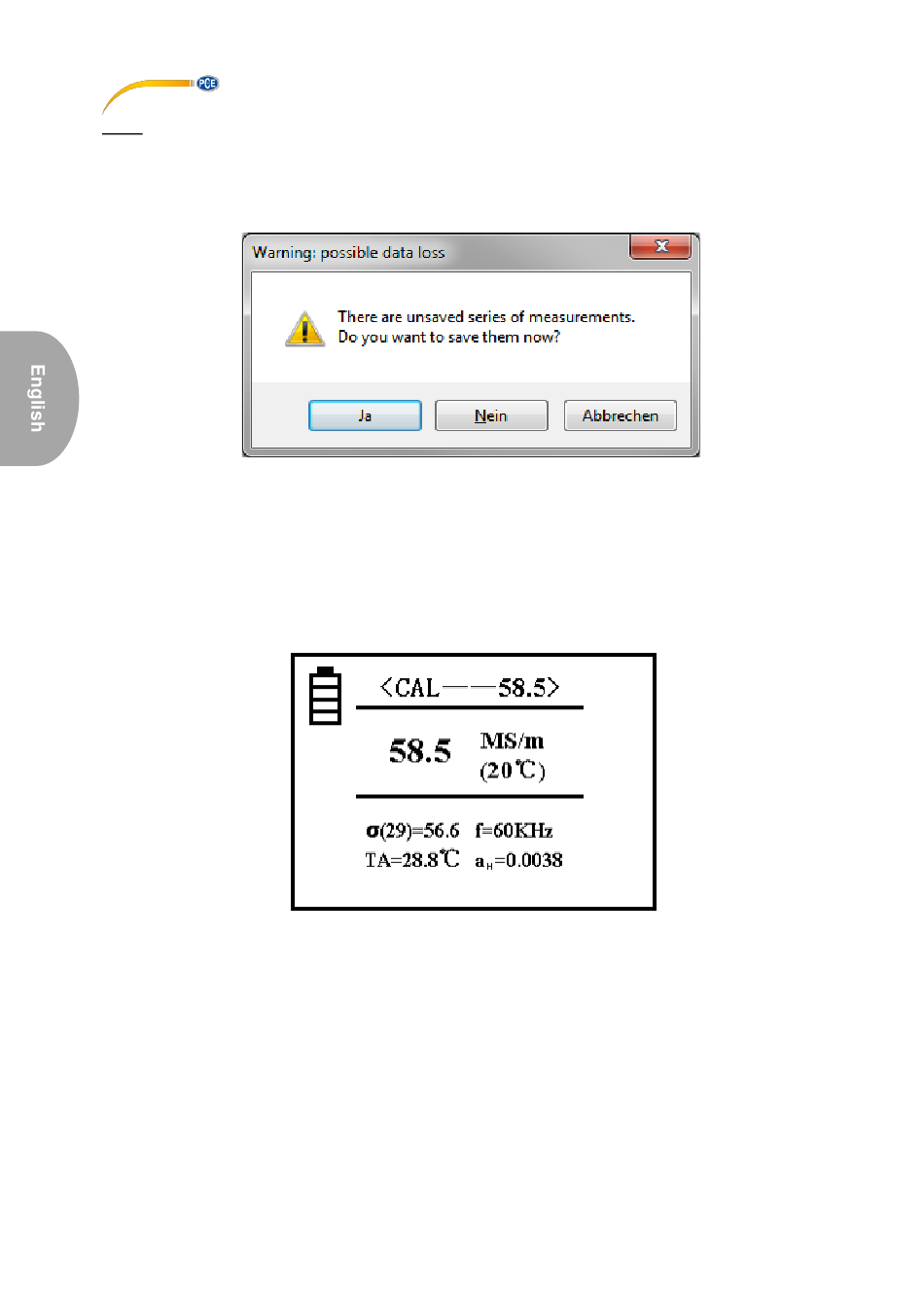

Fig. 9: Saving data
Fig. 16
