6.5

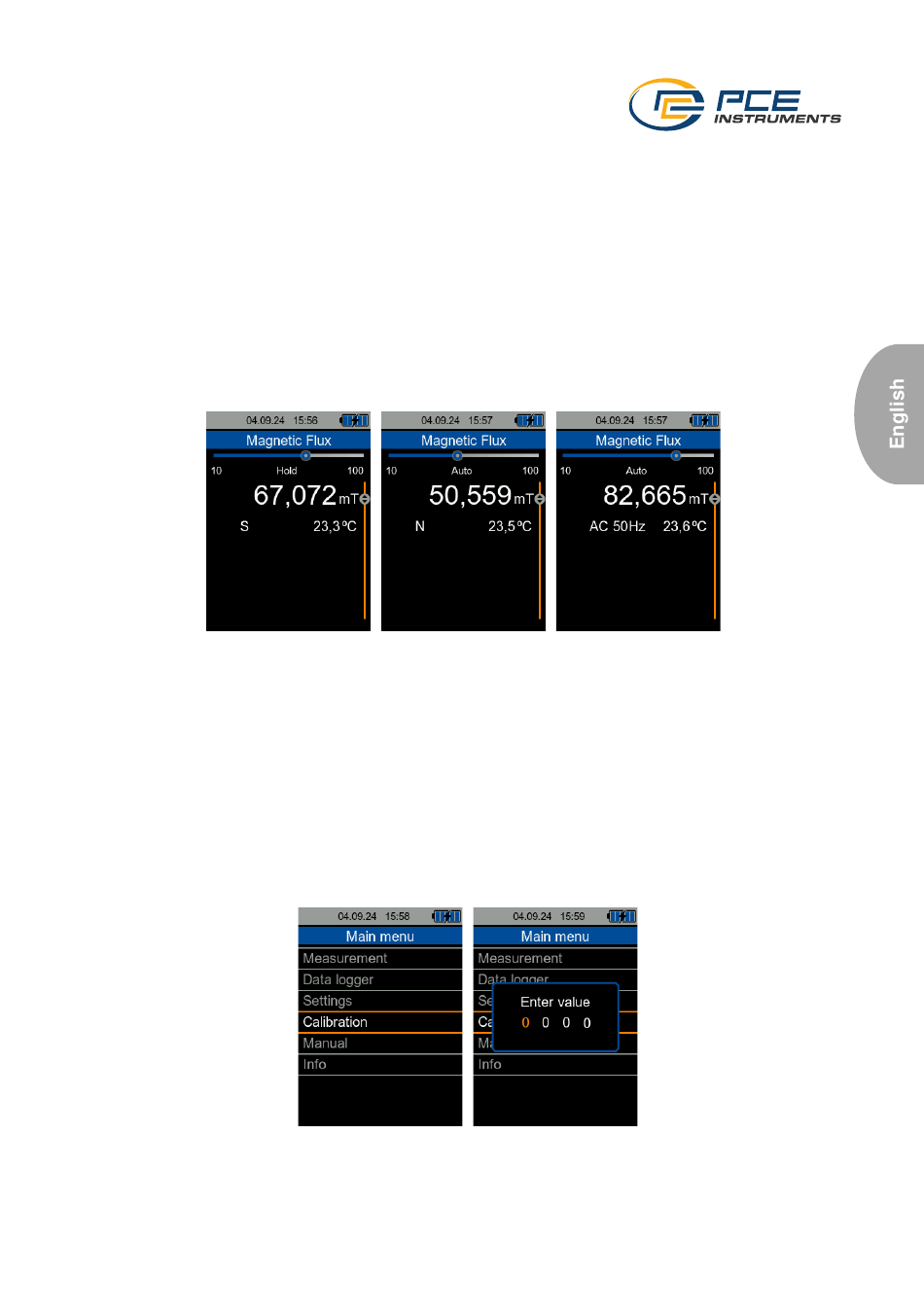

Polarity indication

The meter can display the direction of the magnetic field lines. If the magnetic field lines are

aligned with the front side of the Hall sensor, the meter will display "N" next to the measured

magnetic flux value. Conversely, if the magnetic field lines are aligned with the back side of the

Hall sensor, the meter will display "S" next to the measured magnetic flux value.

If the meter detects an AC magnetic flux, it will change the polarity indication to "AC" and show

the frequency of the detected AC magnetic flux.

The instructions for the PC software can be found inside the PC software.

The Calibration menu allows you to set a scaling factor that can be determined by calibration and

is used to calculate the magnetic flux value.

Since a special measurement setup is required for calibration, this menu is protected by a code.

Please send the device to PCE Instruments for calibration after getting in touch with us. You will

find our contact details at the end of the manual.
