Software manual

Requirements:
- a computer with Windows operating system, at least Windows 7 with connected mouse,
keyboard, screen and a free USB port (2.0 or higher)
- installed Dot-NET framework 4.0
- minimum resolution of 800x600, 4 GB RAM recommended
- optional: printer
- digital conductivity meter "PCE-COM 20"
Installation
Please execute "Setup PCE-COM 20.exe" and follow the instructions of the setup.
Description of the interface

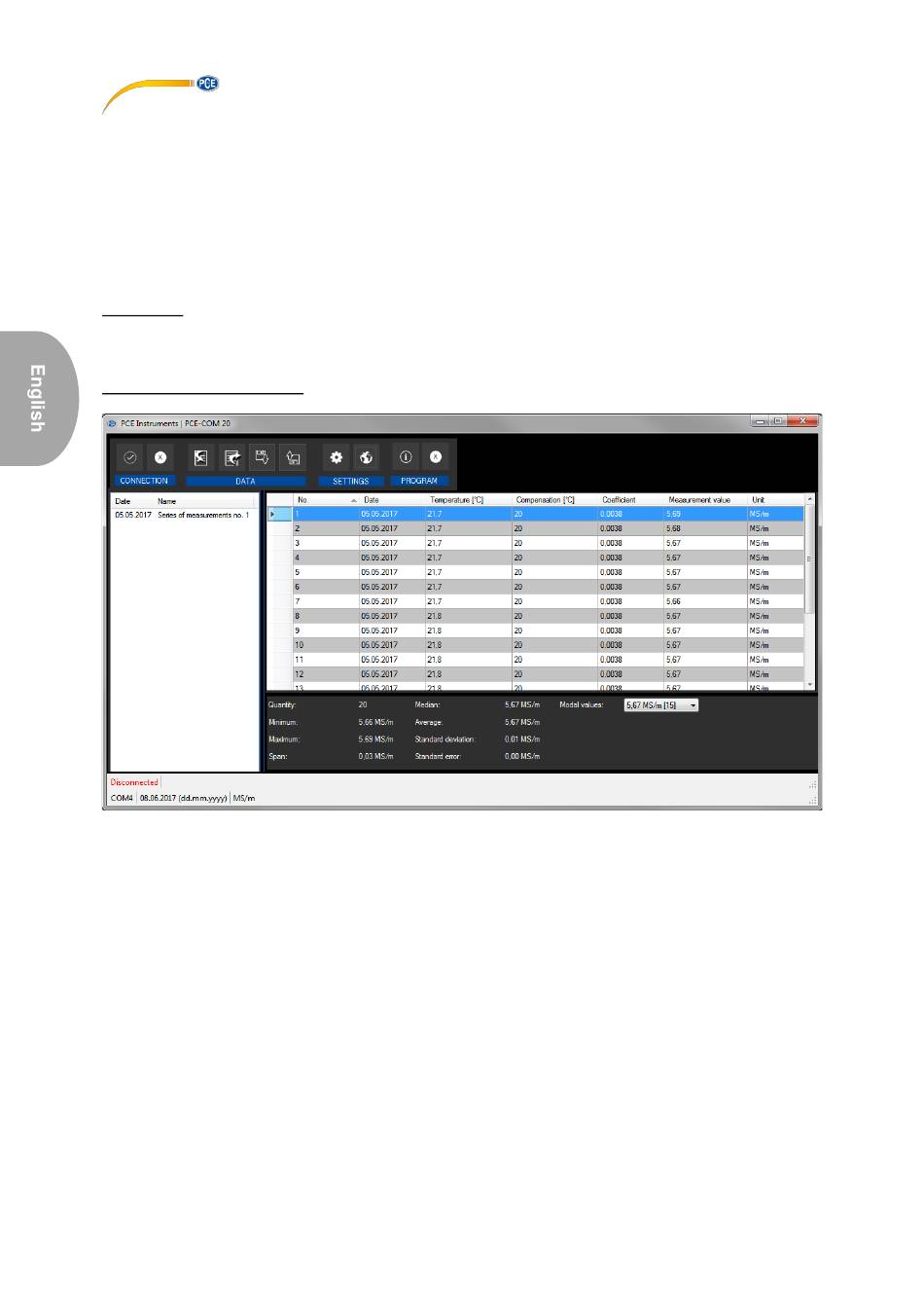

Fig. 1
The main window (Fig. 1) contains the following sections:
Below the title bar, there is a toolbar the icons of which can be selected and clicked on with your
mouse. These icons are grouped according to their functions.
Under this toolbar, on the left-hand side of the window, there is a list of series of measurements.
The right-hand side of the window is divided into an upper and a lower part.
The upper part shows the measurement values in a chart.
The lower part shows an overview of the statistical data.
At the lower edge of the main window, there are two status bars with important information, one
above the other.
The lower one shows the statistical settings of the programme which can be made via a settings
dialogue.
The upper status bar shows dynamic data like the connection status or an active data transfer from
the "PCE-COM 20" to your PC.
