INSTALLI N G THE MOU NT I NG B R ACK E T
• Check that the ceiling where you intend to mount the fan is stable and capable of safely
supporting the weight of the fan.
• Do not fix the mounting bracket directly on ceilings less than 10mm to avoid the risk of the
screw loosening and coming out.
• Mark the correct position of the holes and fix the ceiling bracket using screws with metal
anchors or screws and washers suitable for the chosen ceiling type.
• Once the fixing bracket is installed, check its correct installation before hanging the fan.
The mounting bracket must support the full weight of the fan.
D OW NROD I N STALL AT I O N
• Choose the suspension bar that best suits your situation.
• Remove the bar bolt, removing the pin, and pass the canopy (roof trim) and the engine can-
opy through the suspension bar. Next, route the fan motor cables through the inside of the
suspension bar. Tighten the suspension bar to the engine and insert the bolt and pin.
Standard mounting
Standard mounting hangs from the ceiling
by a downrod.
This fan can be installed on both a regular and vaulted ceiling, and can extend the hanging
length with the longer hanging rod (supplied). To install the hanger bar you will need the
following tools: a screwdriver, flat head screwdriver, adjustable pliers or wrench, step ladder,
wire cutters, and electrical tape.
E NGL I SH
10

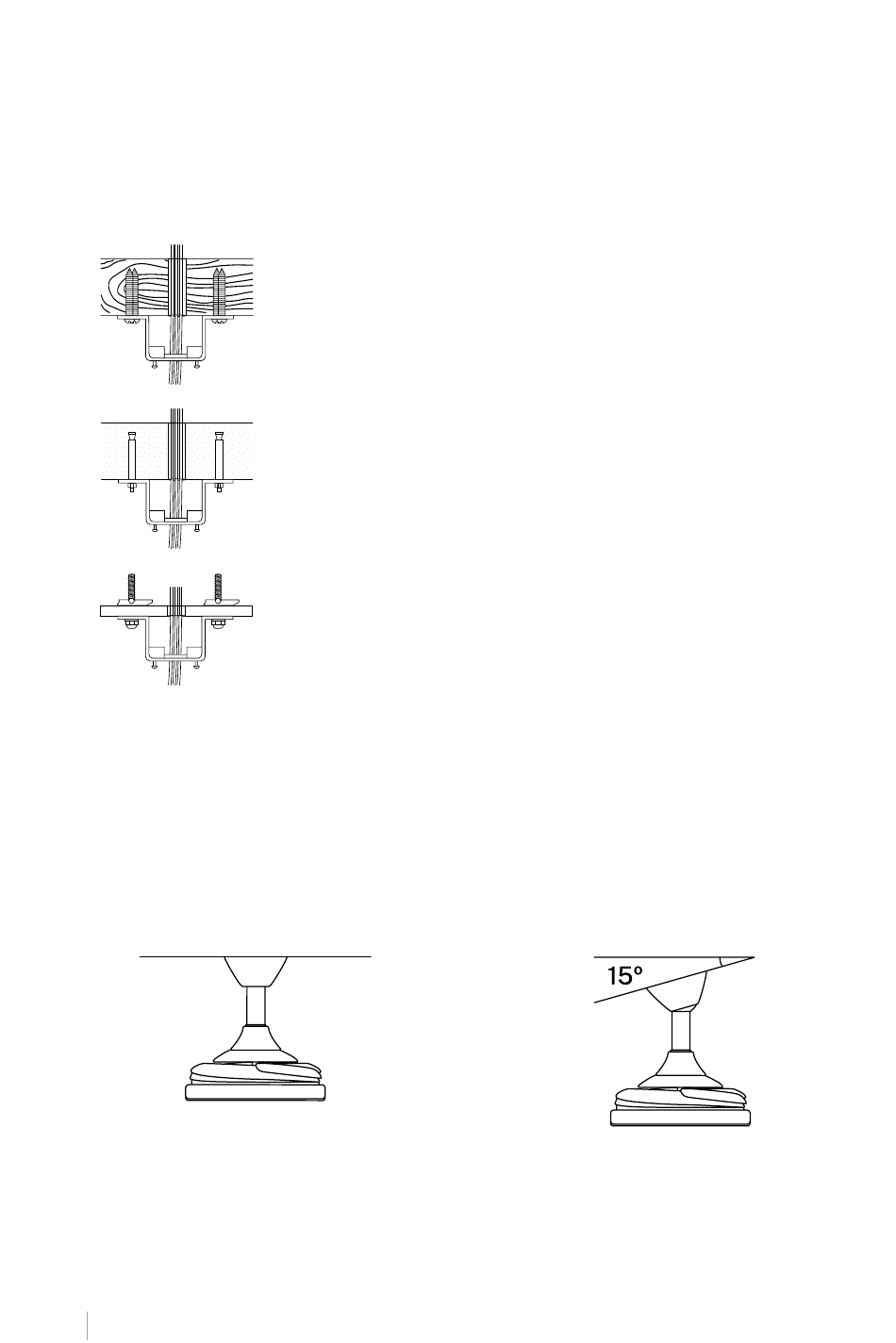

Drill the necessary holes and then secure the mounting bracket
with the wood screws and washers to the ceiling joints.
Drill holes with an 8mm drill bit, according to the length of the
expansion screws. Next, secure the mounting bracket to the
ceiling with the expansion screws.
Drill the necessary holes and then fix the mounting bracket with
the special spring lever fixing screws for use in false ceilings.
Wood roof
Concrete roof
False ceiling
Angle mounting
Angled mounting recommended for a vault-
ed or angled ceiling.
