S USPE N SI ON SYST E M INSTALL AT I O N
• If you want to extend the hanging length of your fan, remove the ball from the hanger rod
and use the additional extension rod (included).
• If you want to use the extension bar, follow the following instructions:.
1. To remove the ball from the suspension rod, loosen the set screw and remove the cotter pins.
2. Lower the ball and remove the locking pin.
3. Take the ball out of the hanger bar and insert it into the longer hanger bar (the top of the
bar has a hole for the set screw; use this to secure the bar).
4. Insert the locking pin into the end of the suspension rod and raise the ball. Make sure the
locking pin is aligned with the grooves inside the ball and secure the set screw.
Advice: To make it easier to insert the wires into the bar, place some electrical tape around
the wires. This will help you keep them together as you insert them into the bar.
5. Loosen the mounting screws and washer from the top of the motor housing. Remove the
bar pins (if you haven't already). Insert the rosette through the bar.
6. Thread the cables through the bar and pull the excess cables from the top of the bar to
tighten them.
7. Place the bar inside the motor housing and insert the pins you removed earlier. Tighten
the set screws and washers.
8. Lower the canopy towards the motor housing.

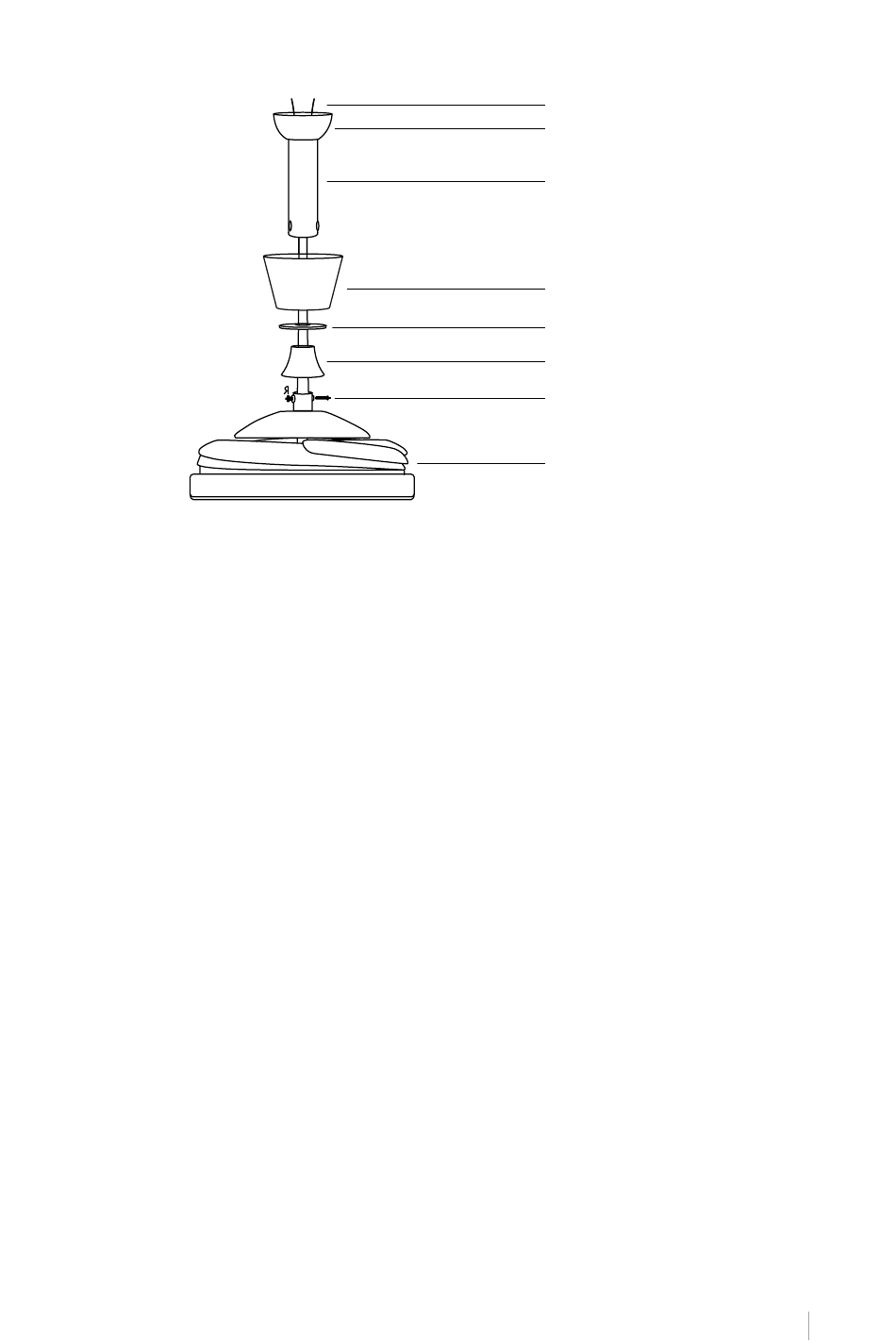

Cabling
Coupling of the ball
Bar
Fleuron
Deck decorative
Trim
Screw of fixation
Motor
