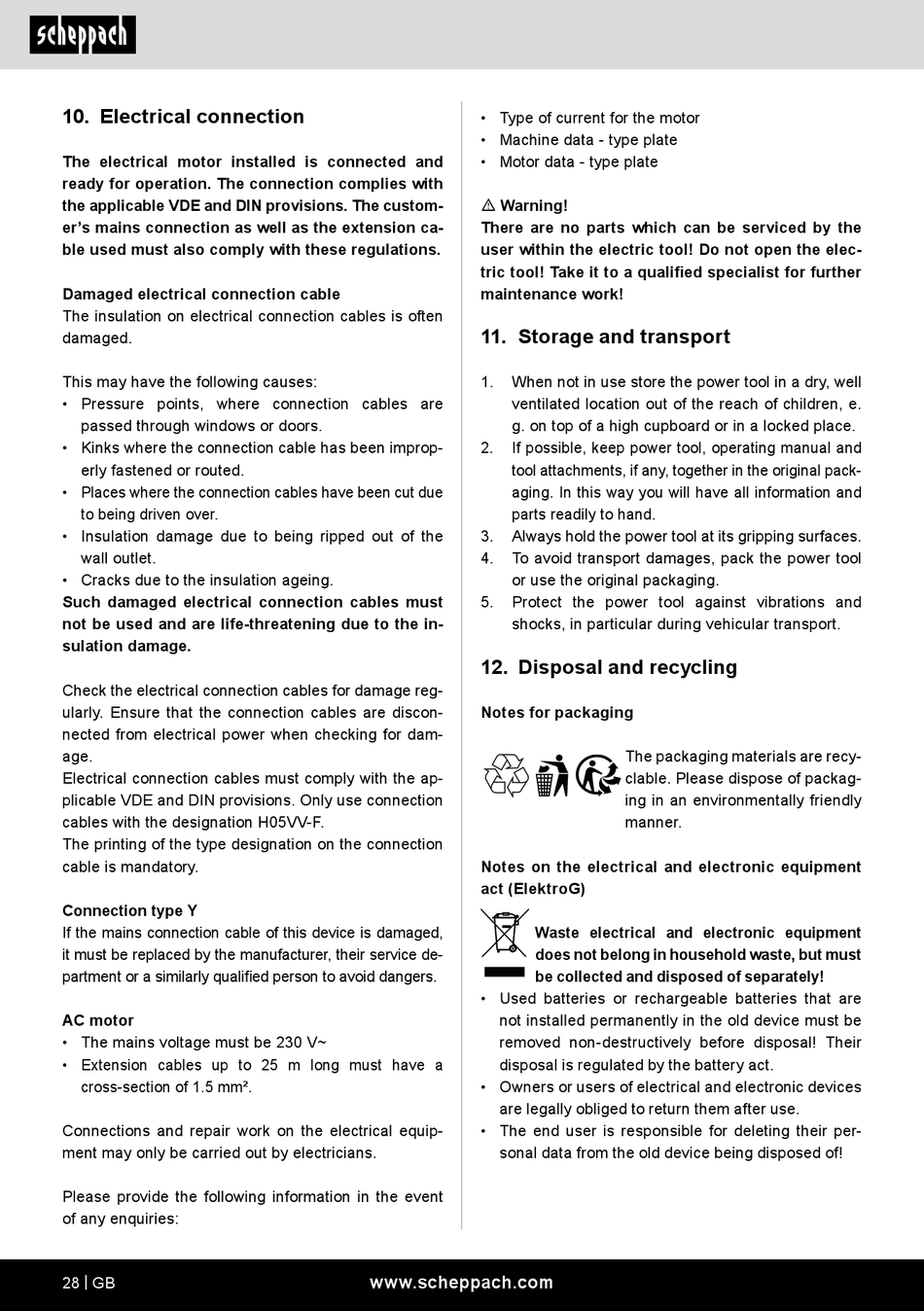

10. Electrical connection
The electrical motor installed is connected and
ready for operation. The connection complies with
the applicable VDE and DIN provisions. The custom-
er's mains connection as well as the extension ca-
ble used must also comply with these regulations.
Damaged electrical connection cable
The insulation on electrical connection cables is often
damaged.
This may have the following causes:
• Pressure points, where connection cables are
passed through windows or doors.
• Kinks where the connection cable has been improp-
erly fastened or routed.
• Places where the connection cables have been cut due
to being driven over.
• Insulation damage due to being ripped out of the
wall outlet.
• Cracks due to the insulation ageing.
Such damaged electrical connection cables must
not be used and are life-threatening due to the in-
sulation damage.
Check the electrical connection cables for damage reg-
ularly. Ensure that the connection cables are discon-
nected from electrical power when checking for dam-
age.
Electrical connection cables must comply with the ap-
plicable VDE and DIN provisions. Only use connection
cables with the designation H05VV-F.
The printing of the type designation on the connection
cable is mandatory.
Connection type Y
If the mains connection cable of this device is damaged,
it must be replaced by the manufacturer, their service de-
partment or a similarly qualified person to avoid dangers.
AC motor
• The mains voltage must be 230 V~
• Extension cables up to 25 m long must have a
cross-section of 1.5 mm².
Connections and repair work on the electrical equip-
ment may only be carried out by electricians.
Please provide the following information in the event
of any enquiries:
28 | GB
• Type of current for the motor
• Machine data - type plate
• Motor data - type plate
m Warning!
There are no parts which can be serviced by the
user within the electric tool! Do not open the elec-
tric tool! Take it to a qualified specialist for further
maintenance work!
11. Storage and transport
1.
When not in use store the power tool in a dry, well
ventilated location out of the reach of children, e.
g. on top of a high cupboard or in a locked place.
2.
If possible, keep power tool, operating manual and
tool attachments, if any, together in the original pack-
aging. In this way you will have all information and
parts readily to hand.
3.
Always hold the power tool at its gripping surfaces.
4.
To avoid transport damages, pack the power tool
or use the original packaging.
5.
Protect the power tool against vibrations and
shocks, in particular during vehicular transport.
12. Disposal and recycling
Notes for packaging
Notes on the electrical and electronic equipment
act (ElektroG)
Waste electrical and electronic equipment
does not belong in household waste, but must
be collected and disposed of separately!
• Used batteries or rechargeable batteries that are
not installed permanently in the old device must be
removed non-destructively before disposal! Their
disposal is regulated by the battery act.
• Owners or users of electrical and electronic devices
are legally obliged to return them after use.
• The end user is responsible for deleting their per-
sonal data from the old device being disposed of!
