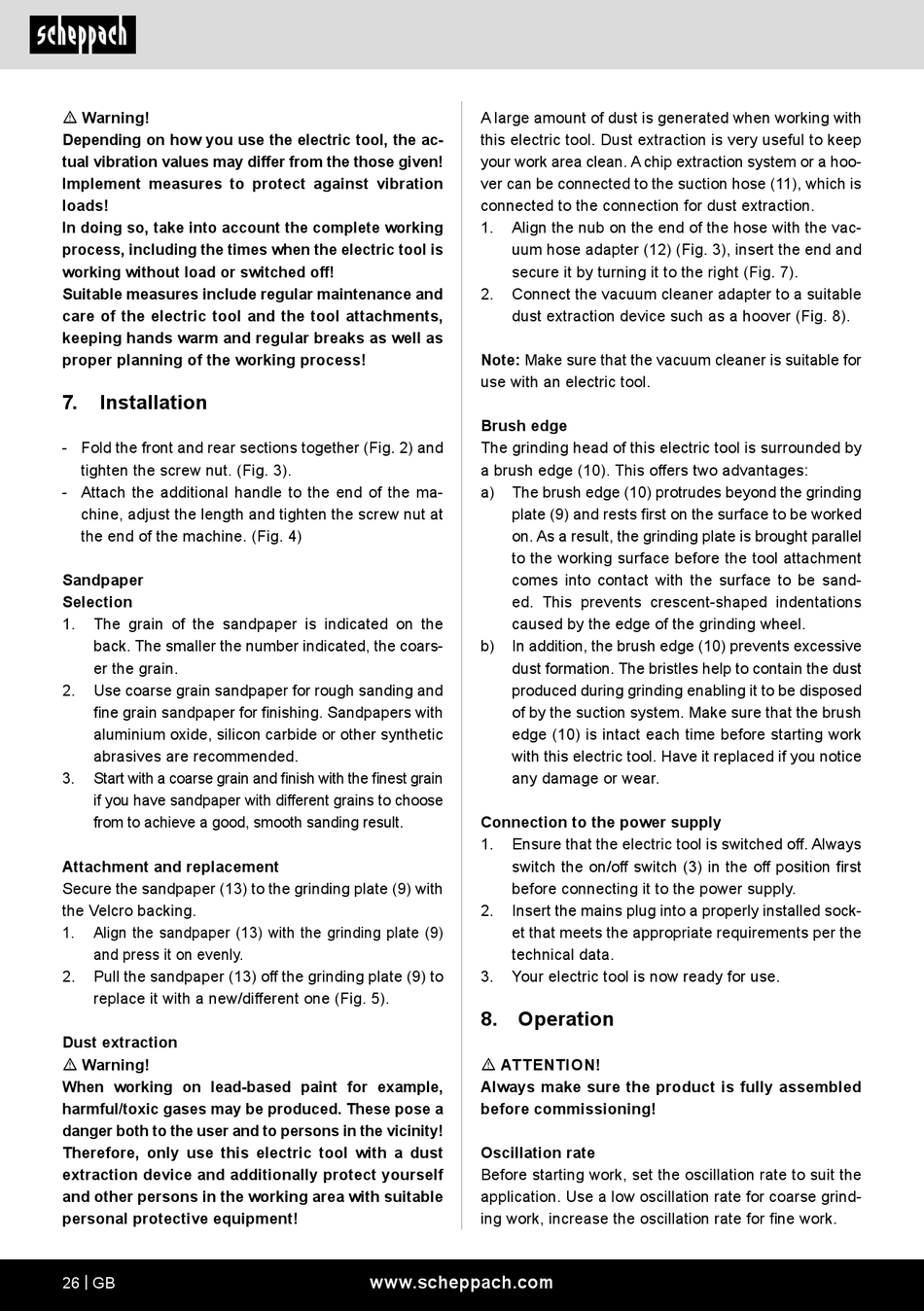

m Warning!
Depending on how you use the electric tool, the ac-
tual vibration values may differ from the those given!
Implement measures to protect against vibration
loads!
In doing so, take into account the complete working
process, including the times when the electric tool is
working without load or switched off!
Suitable measures include regular maintenance and
care of the electric tool and the tool attachments,
keeping hands warm and regular breaks as well as
proper planning of the working process!
7.
Installation
- Fold the front and rear sections together (Fig. 2) and
tighten the screw nut. (Fig. 3).
- Attach the additional handle to the end of the ma-
chine, adjust the length and tighten the screw nut at
the end of the machine. (Fig. 4)
Sandpaper
Selection
1.
The grain of the sandpaper is indicated on the
back. The smaller the number indicated, the coars-
er the grain.
2.
Use coarse grain sandpaper for rough sanding and
fine grain sandpaper for finishing. Sandpapers with
aluminium oxide, silicon carbide or other synthetic
abrasives are recommended.
3.
Start with a coarse grain and finish with the finest grain
if you have sandpaper with different grains to choose
from to achieve a good, smooth sanding result.
Attachment and replacement
Secure the sandpaper (13) to the grinding plate (9) with
the Velcro backing.
1.
Align the sandpaper (13) with the grinding plate (9)
and press it on evenly.
2.
Pull the sandpaper (13) off the grinding plate (9) to
replace it with a new/different one (Fig. 5).
Dust extraction
m Warning!
When working on lead-based paint for example,
harmful/toxic gases may be produced. These pose a
danger both to the user and to persons in the vicinity!
Therefore, only use this electric tool with a dust
extraction device and additionally protect yourself
and other persons in the working area with suitable
personal protective equipment!
26 | GB
A large amount of dust is generated when working with
this electric tool. Dust extraction is very useful to keep
your work area clean. A chip extraction system or a hoo-
ver can be connected to the suction hose (11), which is
connected to the connection for dust extraction.
1.
Align the nub on the end of the hose with the vac-
uum hose adapter (12) (Fig. 3), insert the end and
secure it by turning it to the right (Fig. 7).
2.
Connect the vacuum cleaner adapter to a suitable
dust extraction device such as a hoover (Fig. 8).
Note: Make sure that the vacuum cleaner is suitable for
use with an electric tool.
Brush edge
The grinding head of this electric tool is surrounded by
a brush edge (10). This offers two advantages:
a)
The brush edge (10) protrudes beyond the grinding
plate (9) and rests first on the surface to be worked
on. As a result, the grinding plate is brought parallel
to the working surface before the tool attachment
comes into contact with the surface to be sand-
ed. This prevents crescent-shaped indentations
caused by the edge of the grinding wheel.
b)
In addition, the brush edge (10) prevents excessive
dust formation. The bristles help to contain the dust
produced during grinding enabling it to be disposed
of by the suction system. Make sure that the brush
edge (10) is intact each time before starting work
with this electric tool. Have it replaced if you notice
any damage or wear.
Connection to the power supply
1.
Ensure that the electric tool is switched off. Always
switch the on/off switch (3) in the off position first
before connecting it to the power supply.
2.
Insert the mains plug into a properly installed sock-
et that meets the appropriate requirements per the
technical data.
3.
Your electric tool is now ready for use.
8. Operation
m ATTENTION!
Always make sure the product is fully assembled
before commissioning!
Oscillation rate
Before starting work, set the oscillation rate to suit the
application. Use a low oscillation rate for coarse grind-
ing work, increase the oscillation rate for fine work.
www.scheppach.com
