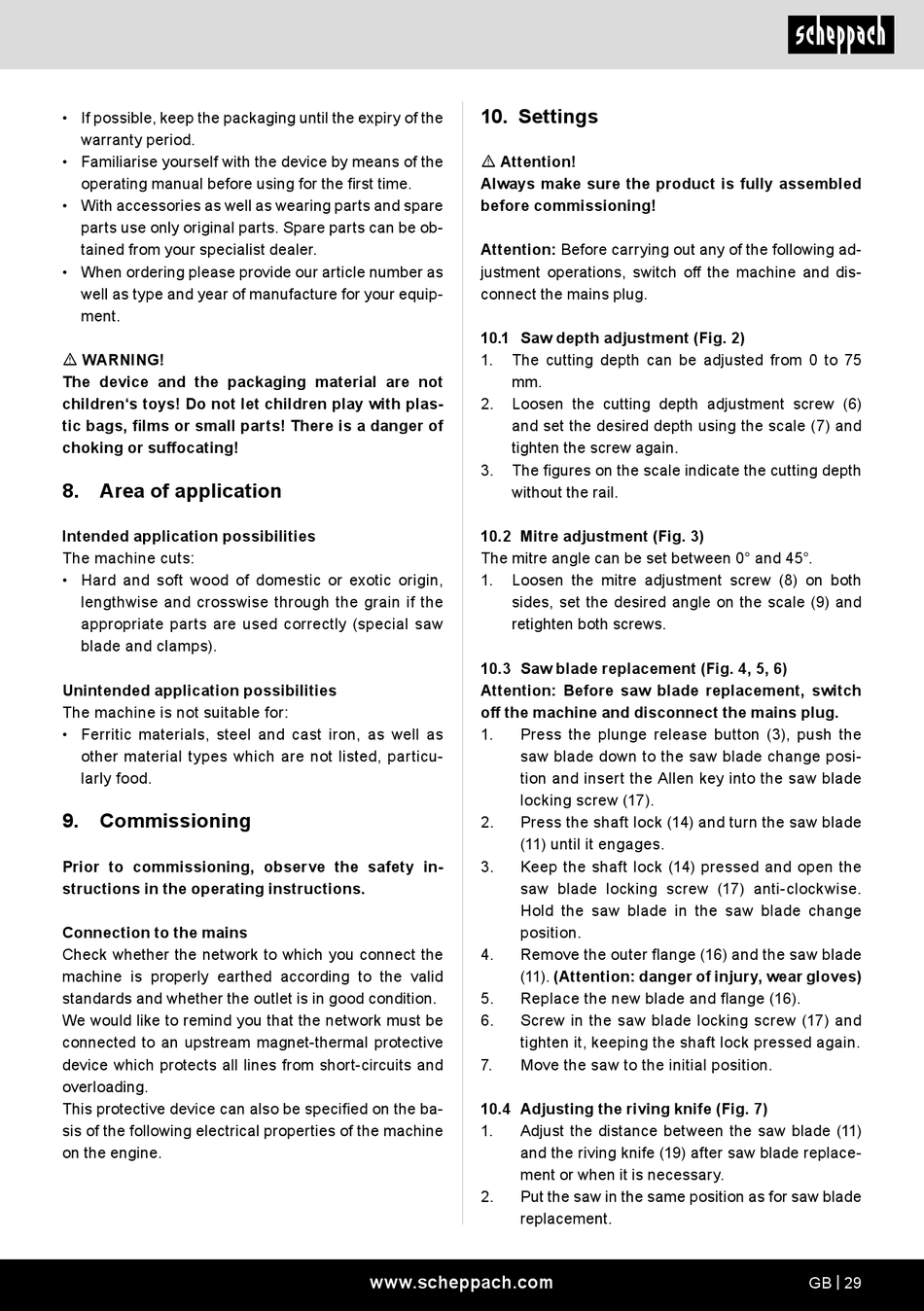

• If possible, keep the packaging until the expiry of the
warranty period.
• Familiarise yourself with the device by means of the
operating manual before using for the first time.
• With accessories as well as wearing parts and spare
parts use only original parts. Spare parts can be ob-
tained from your specialist dealer.
• When ordering please provide our article number as
well as type and year of manufacture for your equip-
ment.
m WARNING!
The device and the packaging material are not
children's toys! Do not let children play with plas-
tic bags, films or small parts! There is a danger of
choking or suffocating!
8. Area of application
Intended application possibilities
The machine cuts:
• Hard and soft wood of domestic or exotic origin,
lengthwise and crosswise through the grain if the
appropriate parts are used correctly (special saw
blade and clamps).
Unintended application possibilities
The machine is not suitable for:
• Ferritic materials, steel and cast iron, as well as
other material types which are not listed, particu-
larly food.
9. Commissioning
Prior to commissioning, observe the safety in-
structions in the operating instructions.
Connection to the mains
Check whether the network to which you connect the
machine is properly earthed according to the valid
standards and whether the outlet is in good condition.
We would like to remind you that the network must be
connected to an upstream magnet-thermal protective
device which protects all lines from short-circuits and
overloading.
This protective device can also be specified on the ba-
sis of the following electrical properties of the machine
on the engine.
10. Settings
m Attention!
Always make sure the product is fully assembled
before commissioning!
Attention: Before carrying out any of the following ad-
justment operations, switch off the machine and dis-
connect the mains plug.
10.1 Saw depth adjustment (Fig. 2)
1. The cutting depth can be adjusted from 0 to 75
mm.
2. Loosen the cutting depth adjustment screw (6)
and set the desired depth using the scale (7) and
tighten the screw again.
3. The figures on the scale indicate the cutting depth
without the rail.
10.2 Mitre adjustment (Fig. 3)
The mitre angle can be set between 0° and 45°.
1. Loosen the mitre adjustment screw (8) on both
sides, set the desired angle on the scale (9) and
retighten both screws.
10.3 Saw blade replacement (Fig. 4, 5, 6)
Attention: Before saw blade replacement, switch
off the machine and disconnect the mains plug.
1. Press the plunge release button (3), push the
saw blade down to the saw blade change posi-
tion and insert the Allen key into the saw blade
locking screw (17).
2. Press the shaft lock (14) and turn the saw blade
(11) until it engages.
3. Keep the shaft lock (14) pressed and open the
saw blade locking screw (17) anti-clockwise.
Hold the saw blade in the saw blade change
position.
4. Remove the outer flange (16) and the saw blade
(11). (Attention: danger of injury, wear gloves)
5. Replace the new blade and flange (16).
6. Screw in the saw blade locking screw (17) and
tighten it, keeping the shaft lock pressed again.
7. Move the saw to the initial position.
10.4 Adjusting the riving knife (Fig. 7)
1. Adjust the distance between the saw blade (11)
and the riving knife (19) after saw blade replace-
ment or when it is necessary.
2. Put the saw in the same position as for saw blade
replacement.
