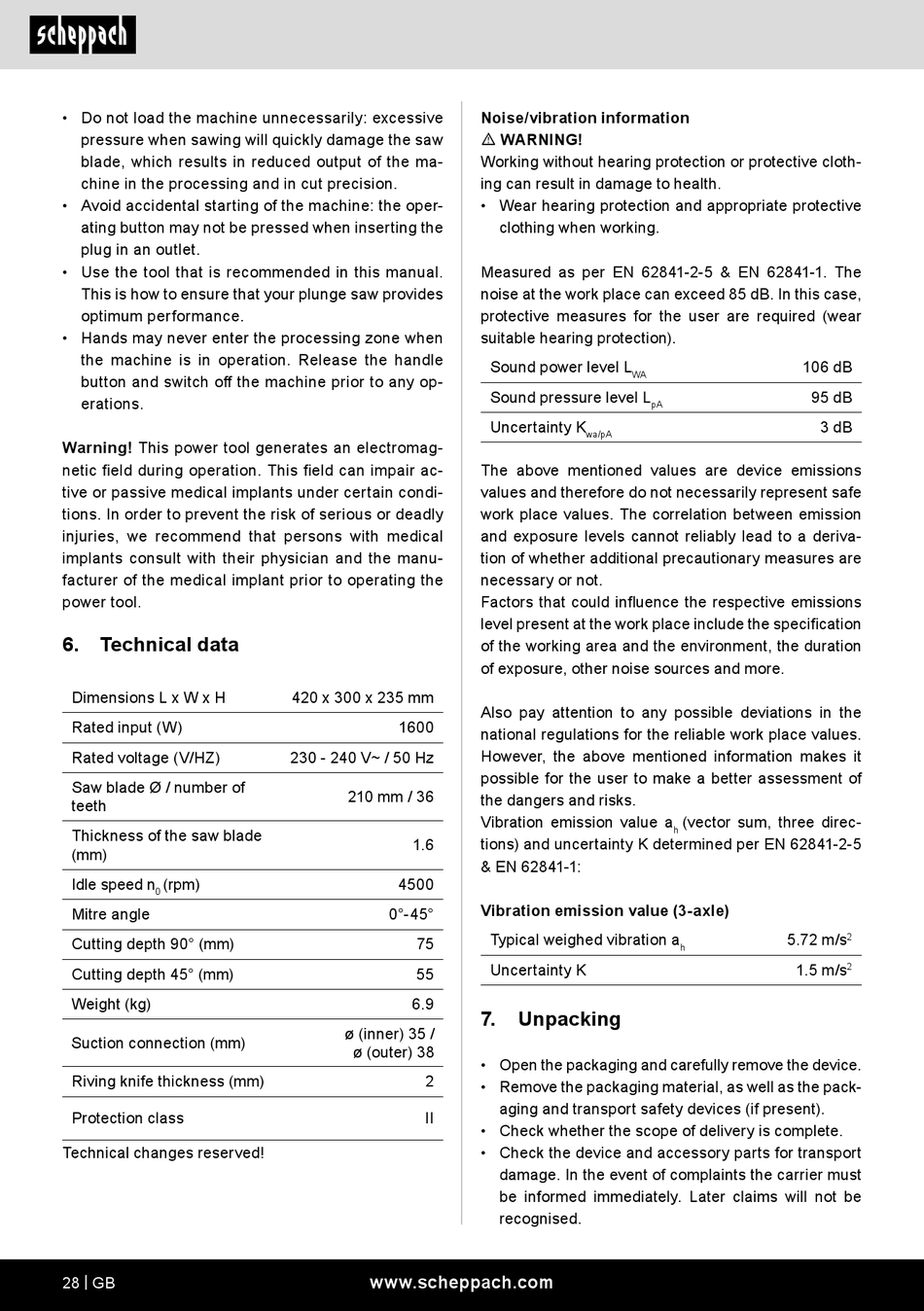

Scheppach PL75 Originalbetriebsanleitung Seite 28

• Do not load the machine unnecessarily: excessive
pressure when sawing will quickly damage the saw
blade, which results in reduced output of the ma-
chine in the processing and in cut precision.
• Avoid accidental starting of the machine: the oper-
ating button may not be pressed when inserting the
plug in an outlet.
• Use the tool that is recommended in this manual.
This is how to ensure that your plunge saw provides
optimum performance.
• Hands may never enter the processing zone when
the machine is in operation. Release the handle
button and switch off the machine prior to any op-
erations.
Warning! This power tool generates an electromag-
netic field during operation. This field can impair ac-
tive or passive medical implants under certain condi-
tions. In order to prevent the risk of serious or deadly
injuries, we recommend that persons with medical
implants consult with their physician and the manu-
facturer of the medical implant prior to operating the
power tool.
6. Technical data
Dimensions L x W x H Dimensions L x W x H
Rated input (W) Rated input (W)
Rated voltage (V/HZ) Rated voltage (V/HZ)
Saw blade Ø / number of Saw blade Ø / number of
teeth teeth
Thickness of the saw blade Thickness of the saw blade
(mm) (mm)
Idle speed n (rpm)
0
Mitre angle Mitre angle
Cutting depth 90° (mm) Cutting depth 90° (mm)
Cutting depth 45° (mm) Cutting depth 45° (mm)
Weight (kg) Weight (kg)
Suction connection (mm) Suction connection (mm)
Riving knife thickness (mm) Riving knife thickness (mm)
Protection class Protection class
Technical changes reserved!
28 | GB
420 x 300 x 235 mm 420 x 300 x 235 mm
1600 1600
230 - 240 V~ / 50 Hz 230 - 240 V~ / 50 Hz
210 mm / 36 210 mm / 36
1.6 1.6
4500 4500
0°-45° 0°-45°
75 75
55 55
6.9 6.9
ø (inner) 35 / ø (inner) 35 /
ø (outer) 38 ø (outer) 38
2 2
II II
www.scheppach.com
Noise/vibration information
m WARNING!
Working without hearing protection or protective cloth-
ing can result in damage to health.
• Wear hearing protection and appropriate protective
clothing when working.
Measured as per EN 62841-2-5 & EN 62841-1. The
noise at the work place can exceed 85 dB. In this case,
protective measures for the user are required (wear
suitable hearing protection).
Sound power level L
WA
Sound pressure level L
pA
Uncertainty K
wa/pA
The above mentioned values are device emissions
values and therefore do not necessarily represent safe
work place values. The correlation between emission
and exposure levels cannot reliably lead to a deriva-
tion of whether additional precautionary measures are
necessary or not.
Factors that could influence the respective emissions
level present at the work place include the specification
of the working area and the environment, the duration
of exposure, other noise sources and more.
Also pay attention to any possible deviations in the
national regulations for the reliable work place values.
However, the above mentioned information makes it
possible for the user to make a better assessment of
the dangers and risks.
Vibration emission value a
tions) and uncertainty K determined per EN 62841-2-5
& EN 62841-1:
Vibration emission value (3-axle)
Typical weighed vibration a
Uncertainty K
7. Unpacking
• Open the packaging and carefully remove the device.
• Remove the packaging material, as well as the pack-
aging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the device and accessory parts for transport
damage. In the event of complaints the carrier must
be informed immediately. Later claims will not be
recognised.
106 dB
95 dB
3 dB
(vector sum, three direc-
h
5.72 m/s
2
h
1.5 m/s
2
