Installation and Operating Instructions
EN
ATTENTION
Smoke exhaust roof fans F400/F600 – B VD
The roof fan attenuator B HSDV has four mounted eyebolts for all sizes as standard.
If necessary, these eyebolts on the fan and roof fan attenuator can be used for on-site anchoring under high wind
loads. The need for on-site anchoring must be checked in individual cases depending on the local wind influences.
The installer must anchor the fan at the provided anchor points if such environmental influences are expected. The wind
load should be calculated according to DIN EN 1991-1-4.

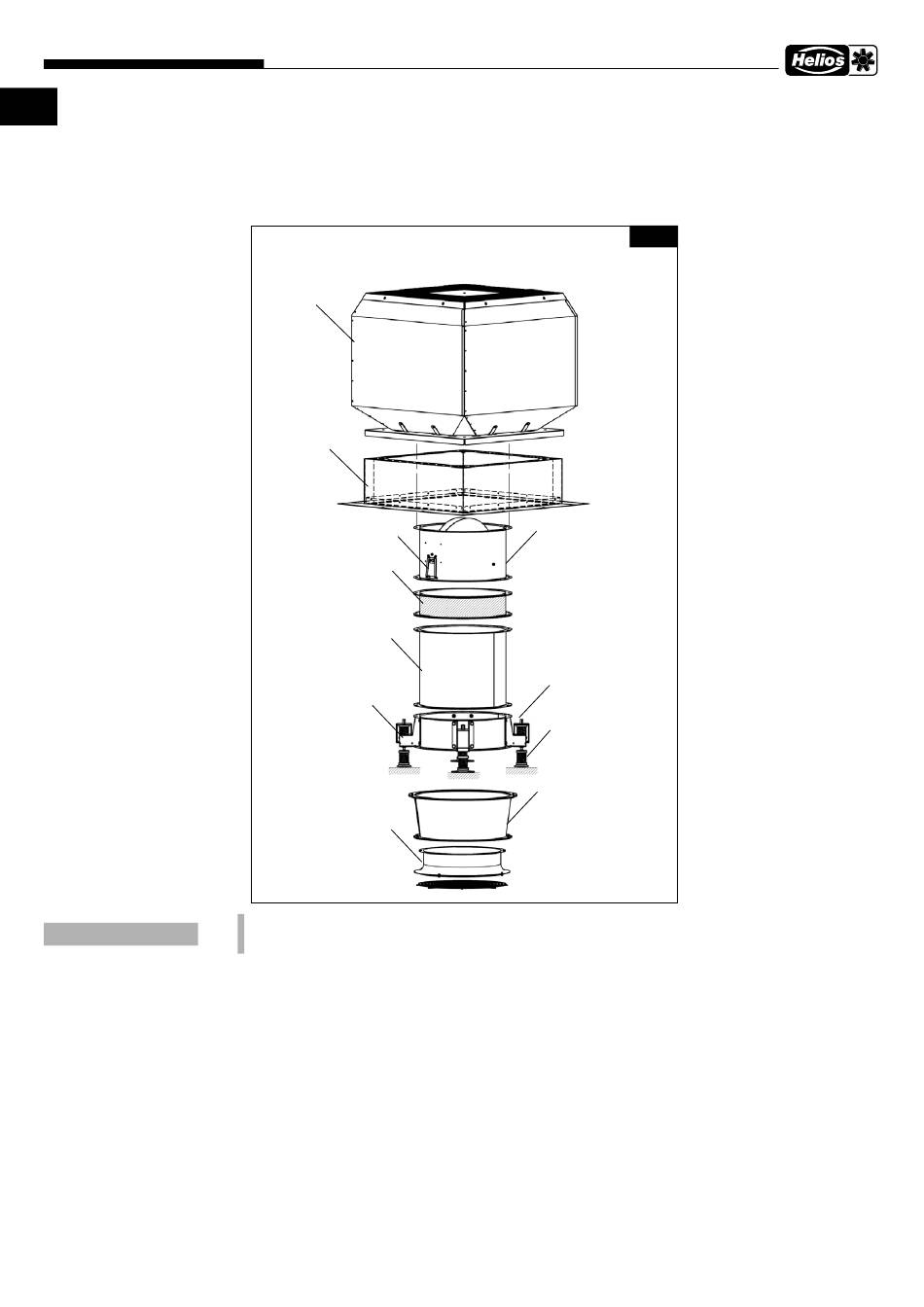

Smoke ex-
haust roof fan
B VD
Flat roof base
B FDS
RVS spring
Flexible connector
STSB
Extension duct
VR
Mounting ring
MRV
Bell-mouth inlet
with guard
ASD-SGD
*
An extension duct (Type: VR 800 or 900) must also be provided between B VD and RVS for sizes BG 800 and
900
Back draught shutter
*
RVS
Anti-vibration mounts
for suspension
SDZ
Anti-vibration mounts
for compression
SDD
Diffuser
DIF
10
Fig8
