1 | MI_2218: Modification instruction drain pump for tabletop and floor units

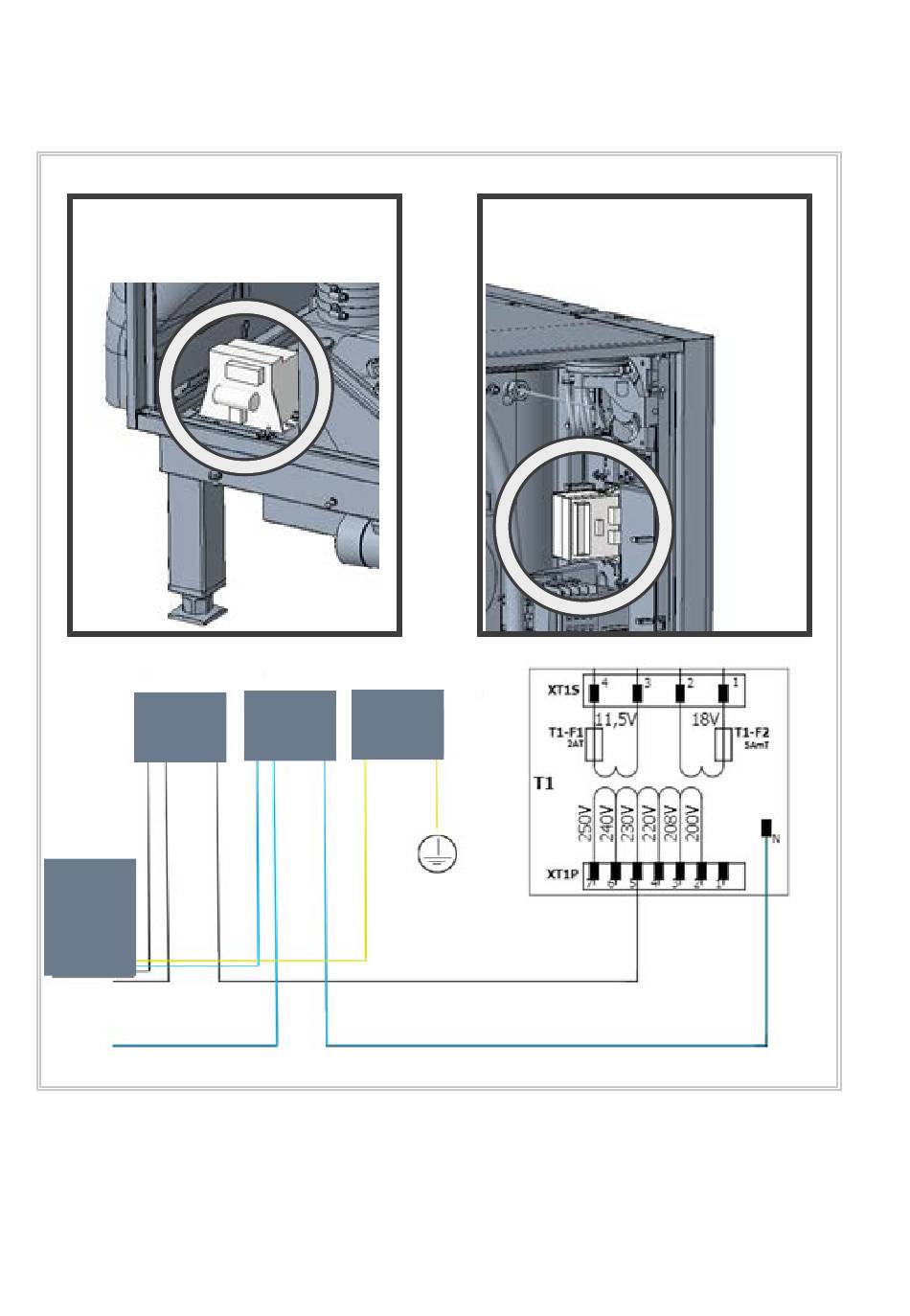

9. Establish a power supply using the WAGO connection terminal.
Cut through the L1 (black) and N (blue) conductors.
Clamp the ends in the WAGO connection terminals. The PE (yellow-green)
conductor does not need to be cut, it is earthed with the enclosed cable.
Index H/I
L1
(black)
Pump
>>
The modification is complete.
10. Check the function of the SC-pump in a function test.
28 / 208
N PE
(blue) (yellow/green)
Index E/G
