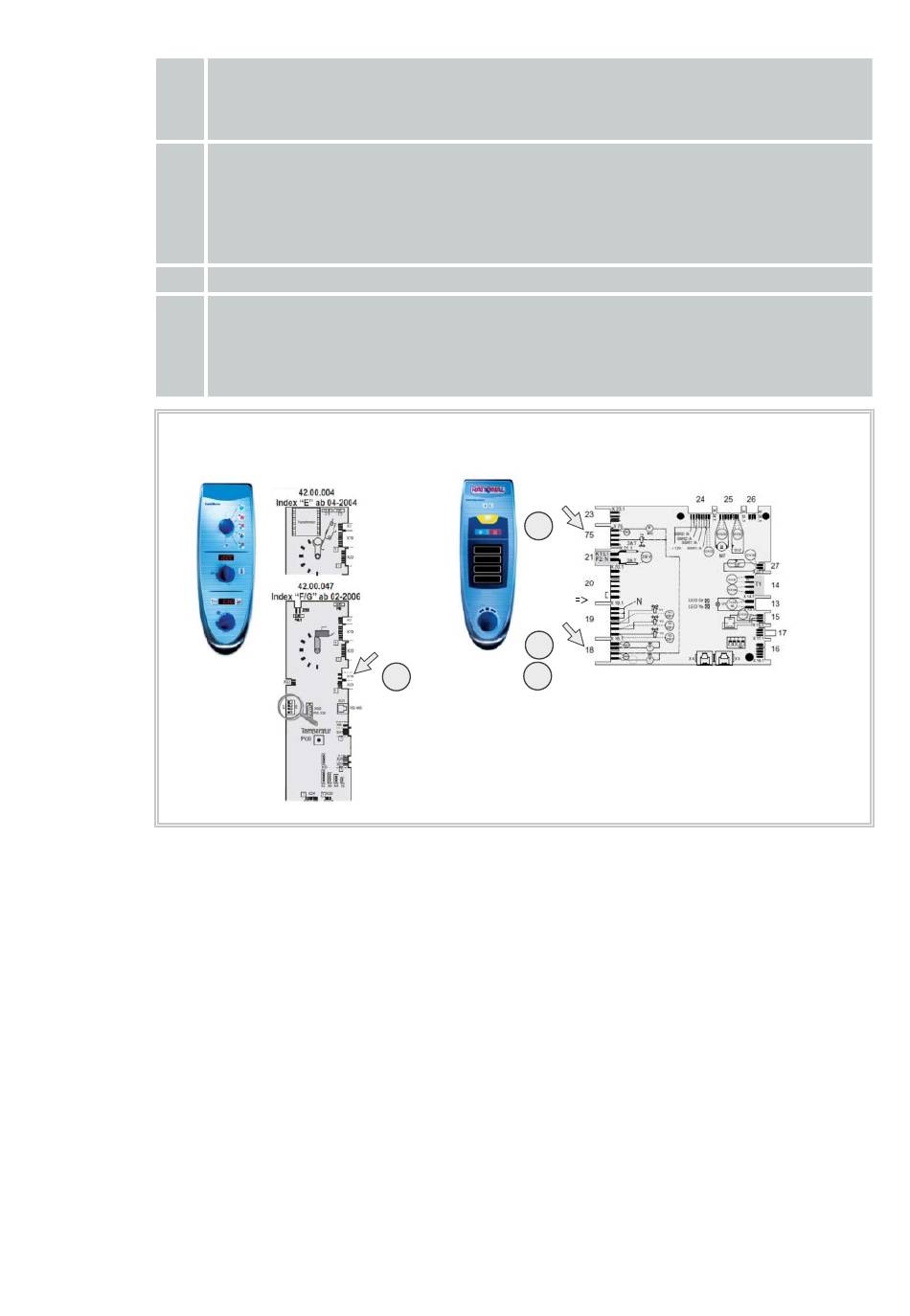

1 | MI_2218: Modification instruction drain pump for tabletop and floor units
J6 Power supply (200-240 Vac / 50-60 Hz / 0.4 A)
J6.1: L
J6.2: N
J6.3: Earth
J5 Recirculation pump ON switch
J5.1: L1
J5.2: N
J5.3: No connection
J5.4: No connection
J5.5: Earth
J4 SC/Care pump ON switch
J2 Motor output
J2.1: Earth
J2.2: Motor output – W phase
J2.3: Motor output – U phase
J2.4: Motor output – V phase
Combi Master
SCC
X75
J4
X18
J4
X18
J5
J4
25 / 208
