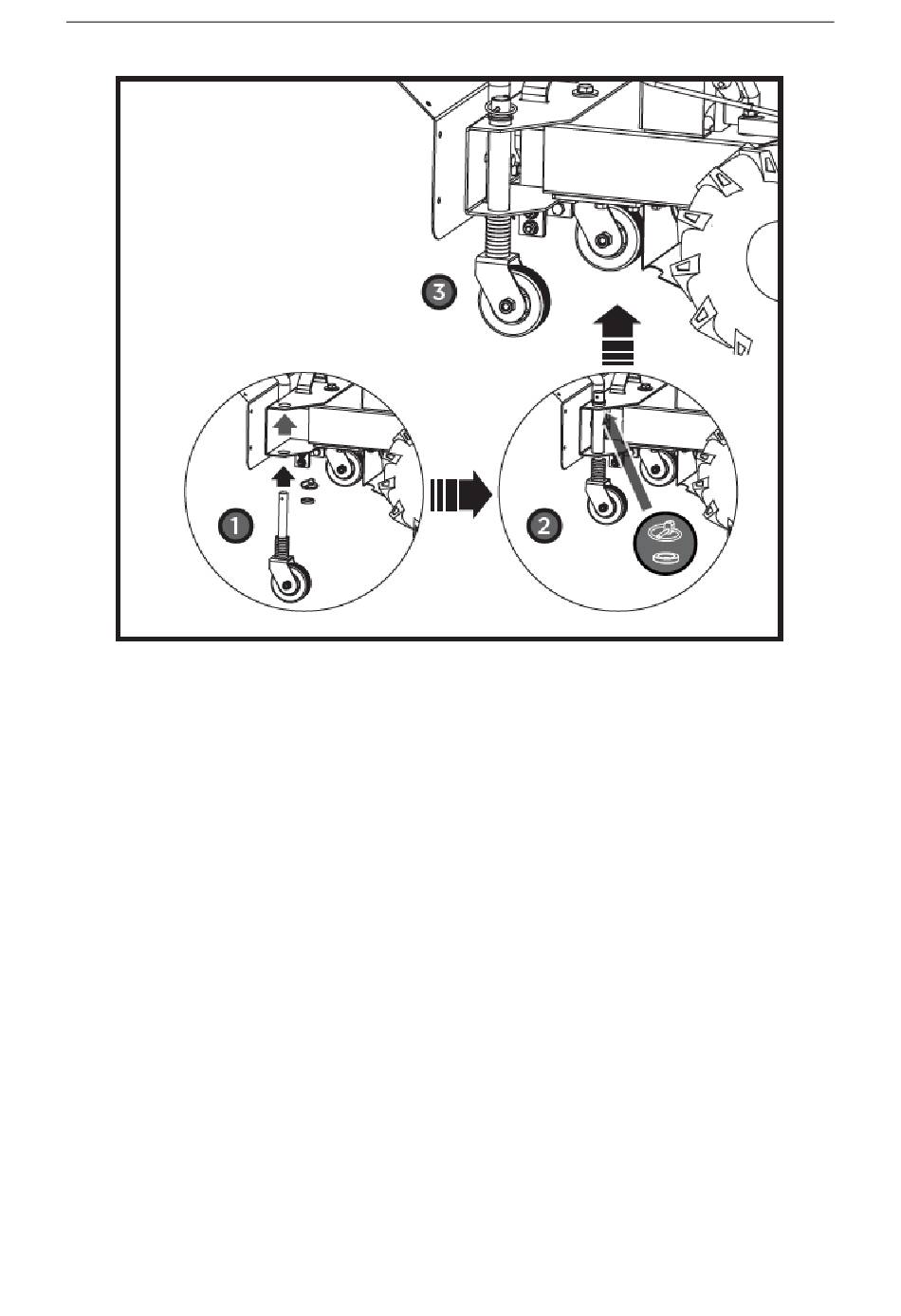

Dismount the gauge wheels and remove one plastic ring from the bottom (Figure No. 1). Mount the
wheels again (Figure No. 2). This lift up the gauge wheels and the brush will come closer to the
surface. Finally, mount the plastic ring, sleeve and locking ring (Figure No. 3).
Adjusting levers
As levers get worn, it could have a wider opening, being so uneasy to use. This means that it is
necessary to adjust the cables, set levers on their original positions and tighten up.
Lubrication
The gearbox is pre-lubricated and sealed at the factory.
Check oil level every 50 hours of working. Remove the plug and check, with machine horizontal, oil
reaches the two notches. If necessary, add the oil. Use portable tool lithium #0 grease such as
Lubriplate 6300AA, Lubriplate GR-132, or Multifak, e.g. EP-O.
Oil must be replaced when engine is stopped and warm by unscrewing filler cap and plug equipped
with an oil dipstick. When oil is completely drained, replace filler cap and fill up with fresh oil.
Engine maintenance
Refer to the Engine Manual included in your unit for the information on engine maintenance. Your
engine manual provides detailed information and a maintenance schedule for performing the tasks.
STORAGE
If the power sweeper will not be used for a period longer than 30 days, follow the steps below to
prepare your unit for storage.
