Fronius Robacta Drive Bedienungsanleitung Seite 50

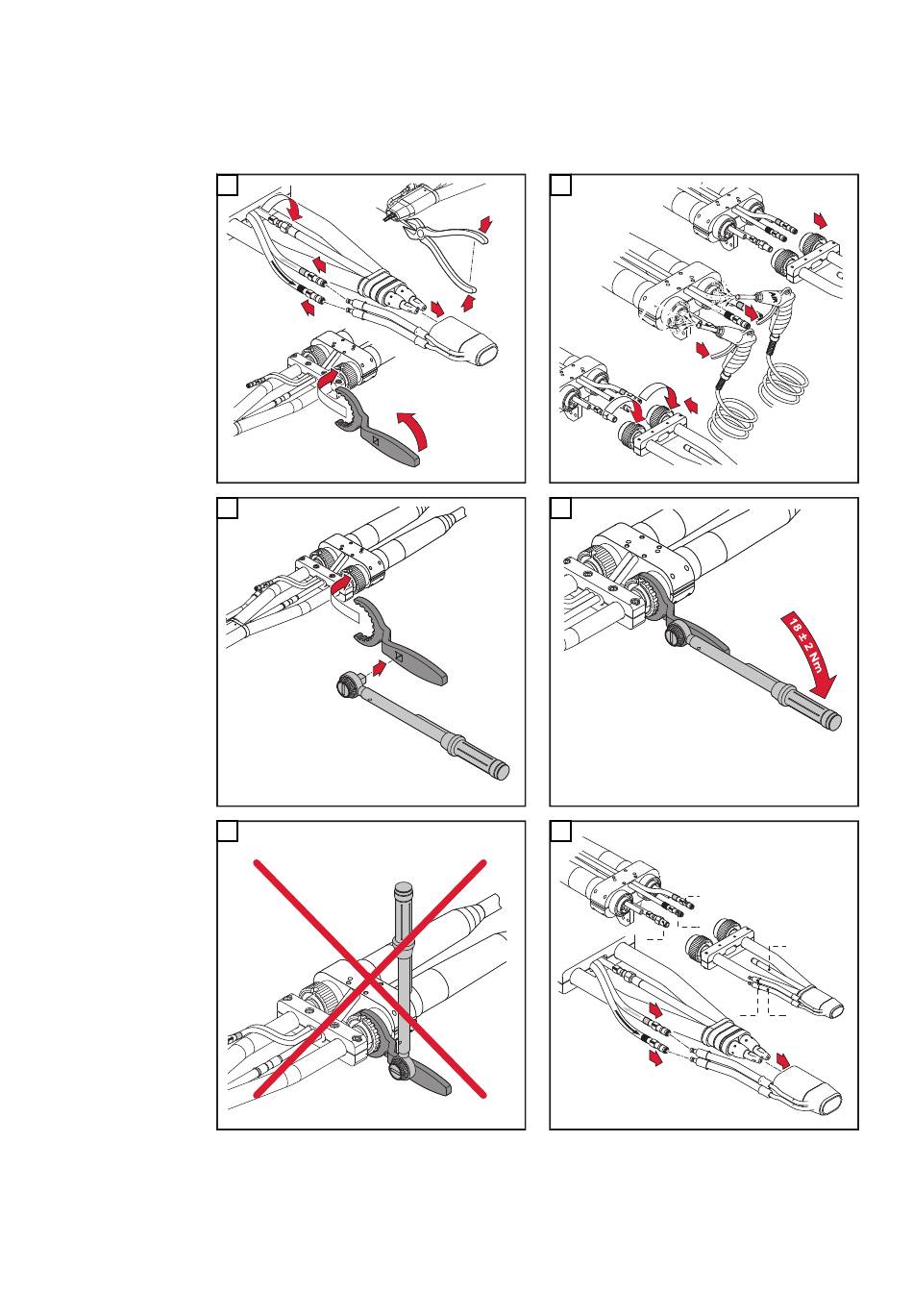

When connecting and terminating lines, observe the following sequence:
1. Blow-out line x.1
2. Water flow x.2 (blue)
3. Water return x.3 (red)
1
