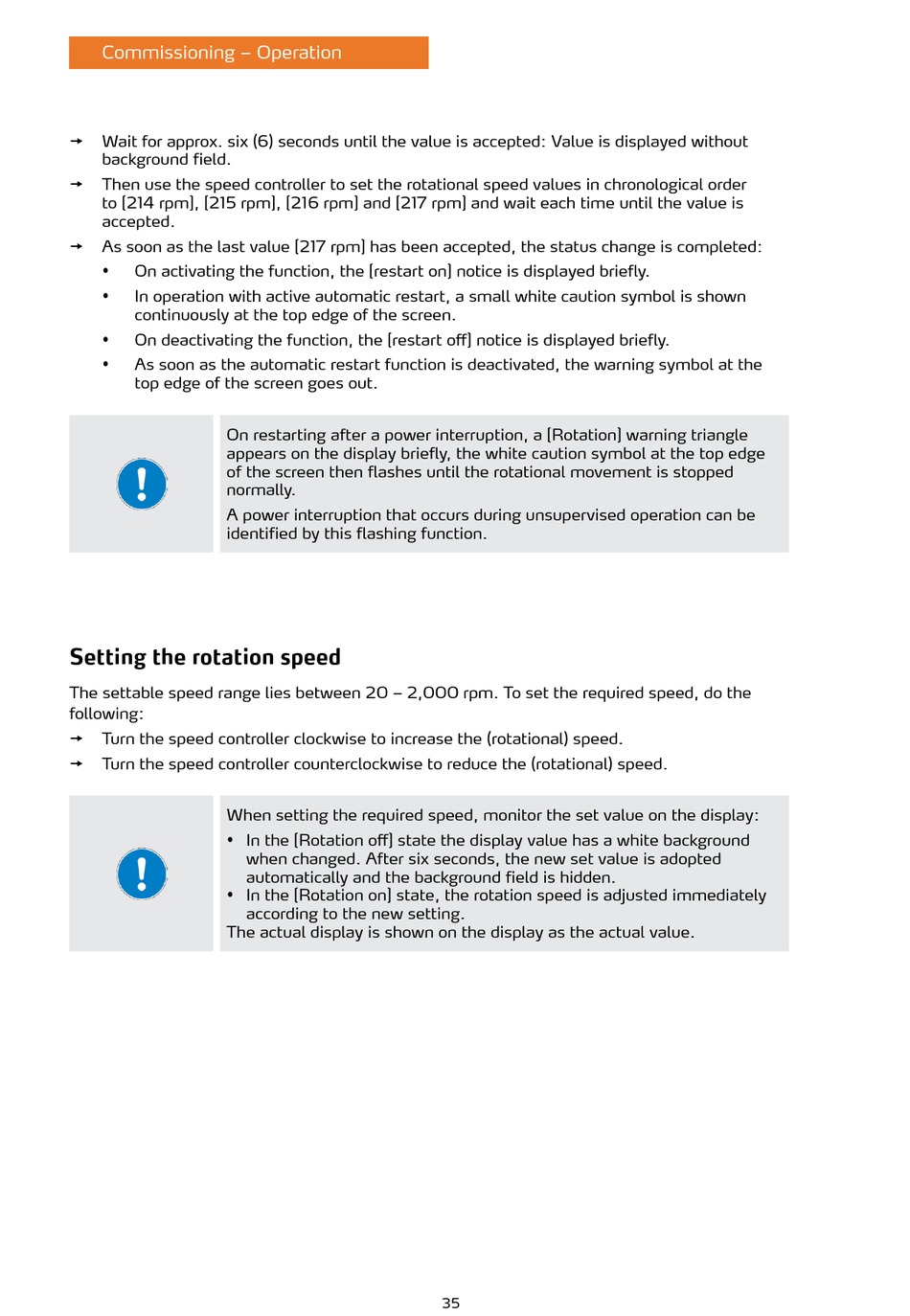

Heidolph Hei-TORQUE Core Betriebsanleitung Seite 35

Commissioning – Operation
Wait for approx. six (6) seconds until the value is accepted: Value is displayed without
t
background field.
Then use the speed controller to set the rotational speed values in chronological order
t
to [214 rpm], [215 rpm], [216 rpm] and [217 rpm] and wait each time until the value is
accepted.
As soon as the last value [217 rpm] has been accepted, the status change is completed:
t
On activating the function, the [restart on] notice is displayed briefly.
y
In operation with active automatic restart, a small white caution symbol is shown
y
continuously at the top edge of the screen.
On deactivating the function, the [restart off] notice is displayed briefly.
y
As soon as the automatic restart function is deactivated, the warning symbol at the
y
top edge of the screen goes out.
On restarting after a power interruption, a [Rotation] warning triangle
appears on the display briefly, the white caution symbol at the top edge
of the screen then flashes until the rotational movement is stopped
normally.
A power interruption that occurs during unsupervised operation can be
identified by this flashing function.
Operation
Setting the rotation speed
The settable speed range lies between 20 – 2,000 rpm. To set the required speed, do the
following:
Turn the speed controller clockwise to increase the (rotational) speed.
t
Turn the speed controller counterclockwise to reduce the (rotational) speed.
t
When setting the required speed, monitor the set value on the display:
y In the [Rotation off] state the display value has a white background
y In the [Rotation on] state, the rotation speed is adjusted immediately
The actual display is shown on the display as the actual value.
when changed. After six seconds, the new set value is adopted
automatically and the background field is hidden.
according to the new setting.
