Installation and Operating Instructions
EN
ELS NFC mit Drehzahl-/Betriebsschalter DSEL3
ELS NFC with speed/operating switch DSEL3
*
Funktionsbelegung
siehe Anleitung
see instructions for
function assignment
Affectation des fonctions,
voir instructions

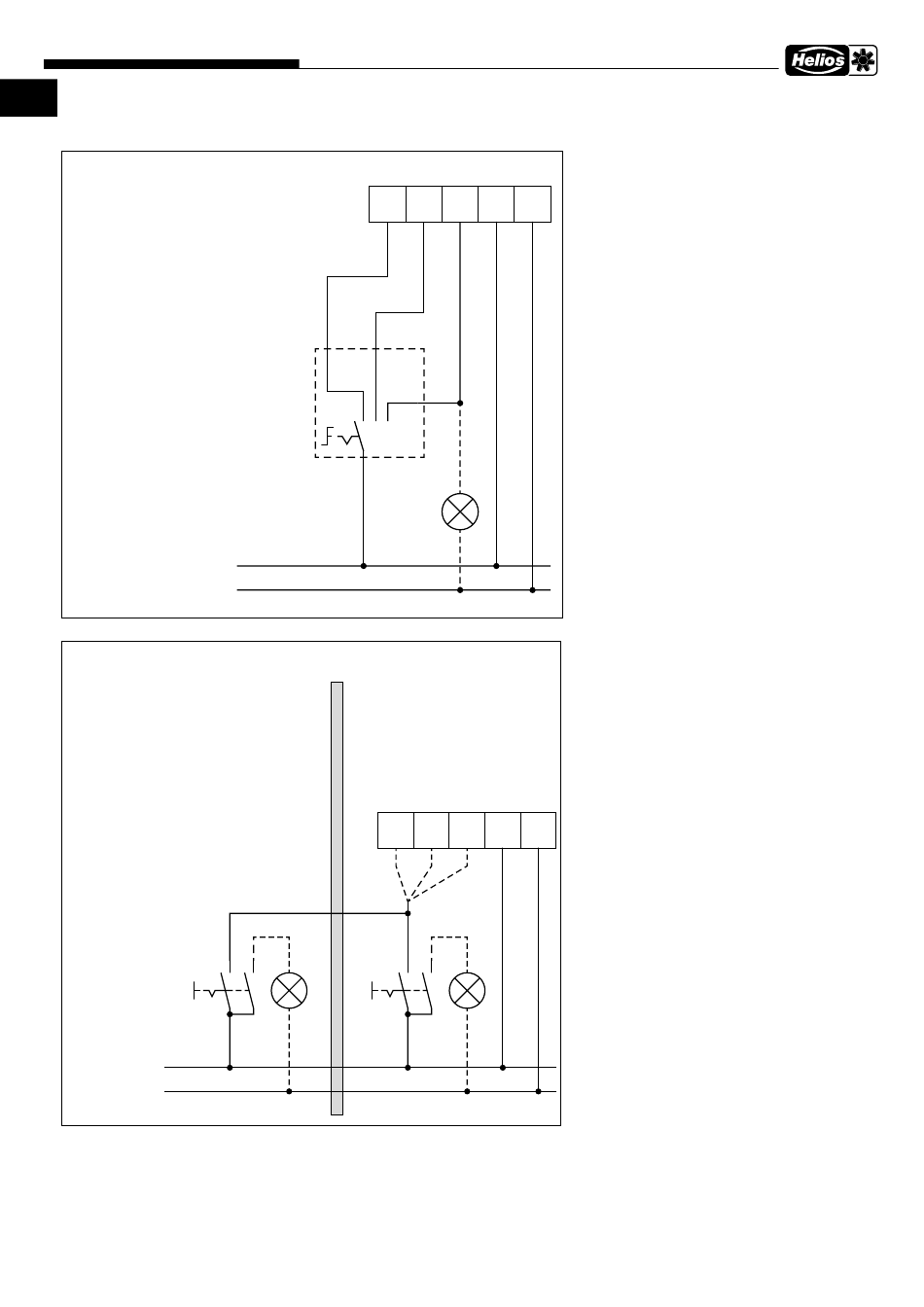

ELS NFC mit Zweitraumanschluss
85499 363 SS-1540 17.04.24
ELS NFC with second room connection
Zweitraum
Second room
Deuxième pièce
*
Funktionsbelegung
siehe Anleitung
see instructions for
function assignment
Affectation des fonctions,
voir instructions
L
N
85499 363 SS-1542 17.04.24
Fan unit ELS NFC..
1 2 3 L N
* * *
2
1
3
0
Helios Type
DSEL3
L
N
Hauptraum
Main room
Pièce principale
1 2 3 L N
* * *
The Helios speed/operating switch
"DSEL 3" can be used to control the
fan in three levels. All three function
inputs are used, which are configu-
red as required. The printed labels
on the panel (low, medium and high
level) are used as the basis for confi-
guration.
The fan can also be controlled from
a "second" room with a light switch.
The light switches for controlling
the fan in the "main room" and
"secondary room" are then connec-
ted in parallel. Room lighting connec-
ted in parallel to the fan control light
switch must then be implemented
using a 2-pole switch.
