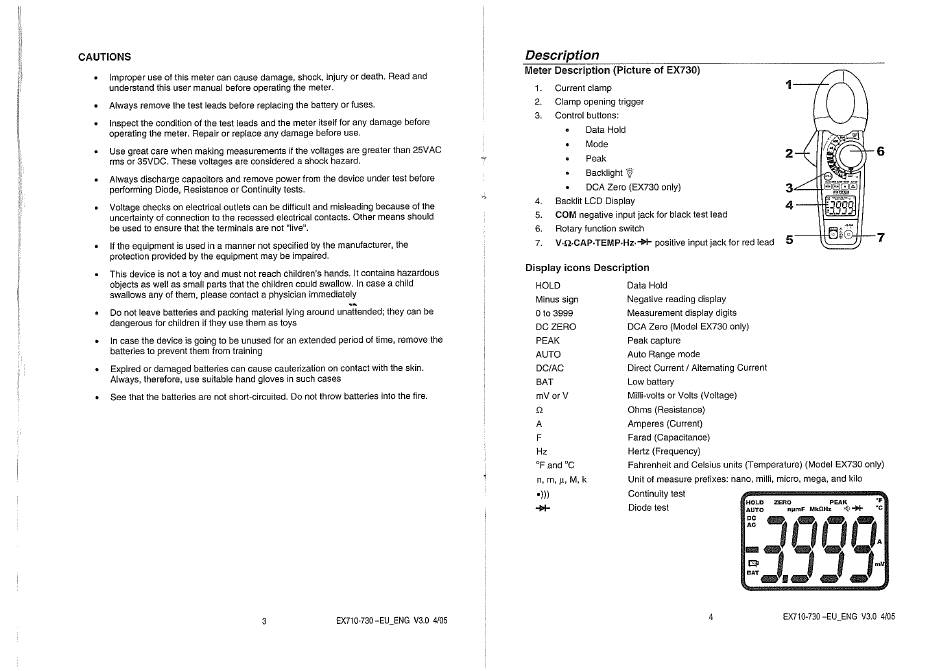

CAUTIONS
Improperuseof this metercancausedamage,shock,injuryor death.Readand
•
understand this user manual before operating the meter.
Always remove the test leads before replacing the battery or fuses.
Inspect the condition of the test leads and the meter itself for any damage before
operating the meter. Repair or replace any damage before use.
Usegreatcare whenmakingmeasurements if the voltagesare greaterthan 25VAC
•
rms or 35VDC. These voltages are considered a shock hazard.
Alwaysdischargecapacitorsand removepowerfrom thedeviceundertest before
performing Diode, Resistanceor Continuity tests.
Voltagechecksonelectricaloutletscanbe difficultandmisleadingbecauseof the
uncertainty of connection to the recessed electrical contacts. Other means should
be used to ensure that the terminals are not "live".
If the equipment is used in a manner not specified by the manufacturer, the
•
protection provided by the equipment may be impaired.
This device is not a toy and must not reach children's hands. It contains hazardous
objects as well as small parts that the children could swallow. In case a child
swallows any of them, please contact a physician immediately
Do not leave batteries and packing material lying around unattended; they can be
dangerous for children if they use them as toys
In case the device is going to be unused for an extended period of time, remove the
•
batteries to prevent them from training
Expiredor damagedbatteriescancausecauterization on contactwith the skin.
Always, therefore, use suitable hand gloves in such cases
See that the batteries are not short-circuited.
•
Do not throw batteries into the fire.
EX710-730 -EU_ENG V3.0 4/05
3
Description
Meter Description (Picture of EX730)
Current clamp
I.
Clamp opening trigger
2.
3. Control buttons:
Data Hold
Mode
•
Peak
•
Backlight
•
DCA Zero (EX730 only)
Backlit LCD Display
4.
COM negative input jack for black test lead
5.
6. Rotary function switch
V.Q.CAP.TEMP.Hz.-N- positive input jack for red lead
7.
Display icons Description
HOLD Data Hold
Negative reading display
Minus sign
Measurement display digits
O to 3999
DC ZERO DCA zero (Model EX730 only)
PEAK Peak capture
Auto Range mode
AUTO
DC/AC Direct Current/ Alternating Current
BAT Low battery
mV or V Milli-volts or Volts (Voltage)
Ohms (Resistance)
Amperes (Current)
Farad (Capacitance)
Hertz (Frequency)
OF and oc Fahrenheit and Celsius units (Temperature) (Model EX730 only)
Unit of measure prefixes: nano, milli, micro, mega, and kilo
Continuity test
Diode test
1
6
2
3
39
4
7
5
PEAK
HOLD ZERO
npmF MkSiHz
AUTO
DAT
EX710-730-EU_ENG V3.0 4/05
4
