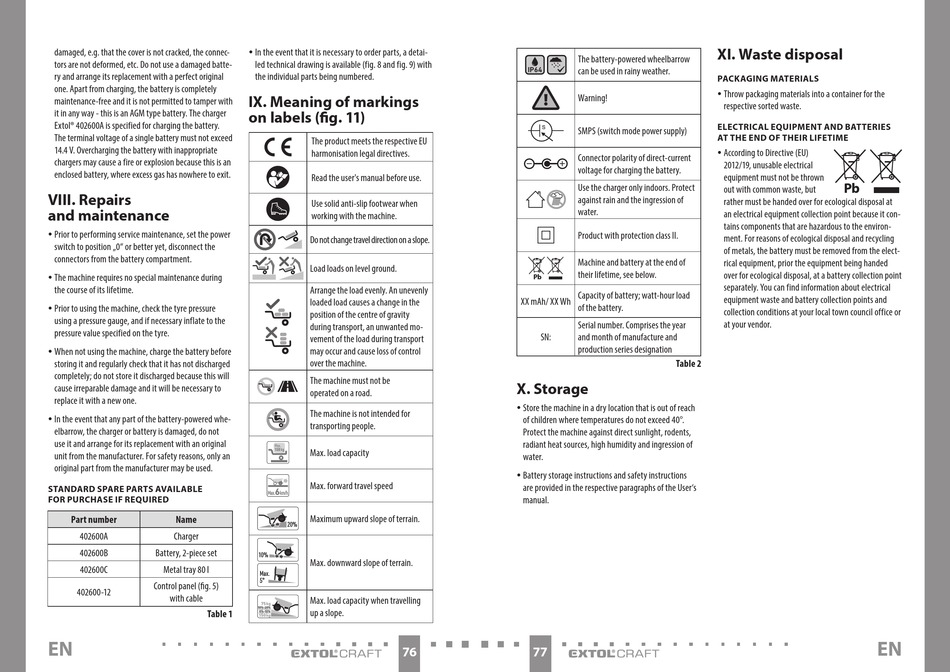

damaged, e.g. that the cover is not cracked, the connec-
tors are not deformed, etc. Do not use a damaged batte-
ry and arrange its replacement with a perfect original
one. Apart from charging, the battery is completely
maintenance-free and it is not permitted to tamper with
it in any way - this is an AGM type battery. The charger
Extol® 402600A is specified for charging the battery.
The terminal voltage of a single battery must not exceed
14.4 V. Overcharging the battery with inappropriate
chargers may cause a fire or explosion because this is an
enclosed battery, where excess gas has nowhere to exit.
VIII. Repairs
and maintenance
y Prior to performing service maintenance, set the power
switch to position „0" or better yet, disconnect the
connectors from the battery compartment.
y The machine requires no special maintenance during
the course of its lifetime.
y Prior to using the machine, check the tyre pressure
using a pressure gauge, and if necessary inflate to the
pressure value specified on the tyre.
y When not using the machine, charge the battery before
storing it and regularly check that it has not discharged
completely; do not store it discharged because this will
cause irreparable damage and it will be necessary to
replace it with a new one.
y In the event that any part of the battery-powered whe-
elbarrow, the charger or battery is damaged, do not
use it and arrange for its replacement with an original
unit from the manufacturer. For safety reasons, only an
original part from the manufacturer may be used.
STANDARD SPARE PARTS AVAILABLE
FOR PURCHASE IF REQUIRED
Part number
Name
402600A
Charger
402600B
Battery, 2-piece set
402600C
Metal tray 80 l
Control panel (fig. 5)
402600-12
with cable
Table 1
EN
y In the event that it is necessary to order parts, a detai-
led technical drawing is available (fig. 8 and fig. 9) with
the individual parts being numbered.
IX. Meaning of markings
on labels (fig. 11)
The product meets the respective EU
harmonisation legal directives.
Read the user's manual before use.
Use solid anti-slip footwear when
working with the machine.
Do not change travel direction on a slope.
Load loads on level ground.
Arrange the load evenly. An unevenly
loaded load causes a change in the
position of the centre of gravity
during transport, an unwanted mo-
vement of the load during transport
may occur and cause loss of control
over the machine.
The machine must not be
operated on a road.
The machine is not intended for
transporting people.
Max. load capacity
Max. forward travel speed
Maximum upward slope of terrain.
Max. downward slope of terrain.
Max. load capacity when travelling
up a slope.
76
The battery-powered wheelbarrow
can be used in rainy weather.
Warning!
SMPS (switch mode power supply)
Connector polarity of direct-current
voltage for charging the battery.
Use the charger only indoors. Protect
against rain and the ingression of
water.
Product with protection class II.
Machine and battery at the end of
their lifetime, see below.
Capacity of battery; watt-hour load
XX mAh/ XX Wh
of the battery.
Serial number. Comprises the year
SN:
and month of manufacture and
production series designation
Table 2
X. Storage
y Store the machine in a dry location that is out of reach
of children where temperatures do not exceed 40°.
Protect the machine against direct sunlight, rodents,
radiant heat sources, high humidity and ingression of
water.
y Battery storage instructions and safety instructions
are provided in the respective paragraphs of the User's
manual.
77
XI. Waste disposal
PACKAGING MATERIALS
y Throw packaging materials into a container for the
respective sorted waste.
ELECTRICAL EQUIPMENT AND BATTERIES
AT THE END OF THEIR LIFETIME
y According to Directive (EU)
2012/19, unusable electrical
equipment must not be thrown
out with common waste, but
rather must be handed over for ecological disposal at
an electrical equipment collection point because it con-
tains components that are hazardous to the environ-
ment. For reasons of ecological disposal and recycling
of metals, the battery must be removed from the elect-
rical equipment, prior the equipment being handed
over for ecological disposal, at a battery collection point
separately. You can find information about electrical
equipment waste and battery collection points and
collection conditions at your local town council office or
at your vendor.
EN
