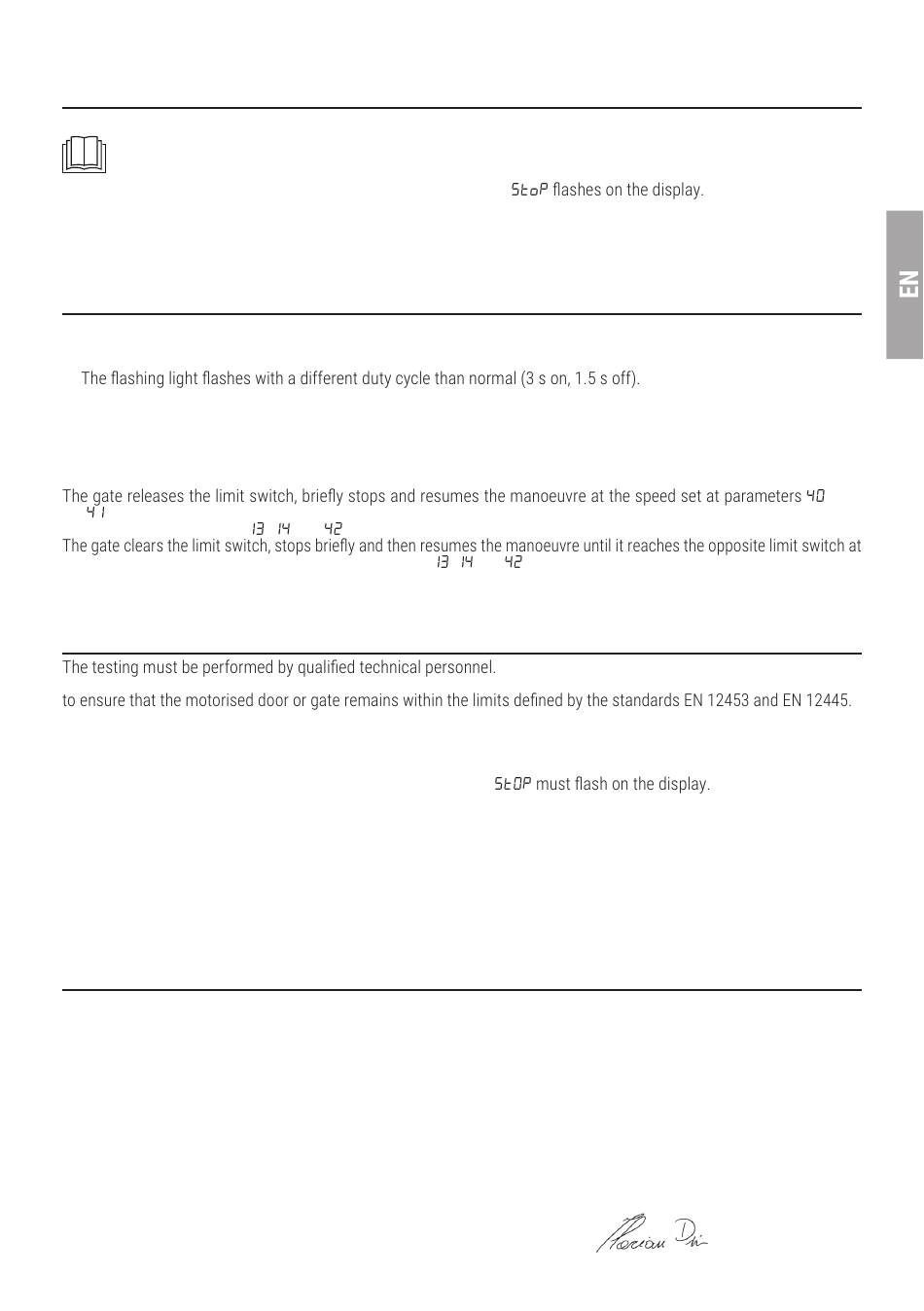

19
Mechanical release
In the event of a fault or mains power loss, the gate may be released and opened manually.
For further information, refer to the locking/release operation in the manual of the automation system.
If the gate releases with the controller unit powered, the message
When the release system is restored to the normal operating position, if the gate is not completely open or completely
closed the next time a command is received, the control initiates a position recovery procedure (see chapter 20).
Activating one of the two limit switches immediately reacquires the position.
20
Position recovery mode
After a mains power outage or after mechanically releasing the gate, if the gate is not completely open or completely
closed the next time a command is received, the control initiates a position recovery procedure:
• The gate starts a low speed manoeuvre.
•
• The control unit recovers the installation data during this procedure. Warning! During this procedure, do not use any
controls until one of the two limit switches is reached.
• Activating one of the two limit switches immediately reacquires the position.
When the control unit receives a command signal after a power failure or after the motor has been mechanically
released, if the gate is completely open or completely closed, it initiates a position recovery procedure to precisely
determine the exact position of the gate.
or/
. Arrival on the opposite limit switch takes place at reduced speed, which is automatically set (regardless of the
settings of the parameters
reduced speed (regardless of the settings of parameters
For BG30/1400/R motors only. If the control unit detects that the gate has been moved manually by more than 3 cm
from the initial position, it initiates a position recovery procedure.
21
Initial testing
The installer is required to measure impact forces and select on the control unit the appropriate speed and torque values
Make sure that the provisions in "GENERIC WARNINGS" are observed.
• Turn on the power supply.
• Check that all connected controls are working correctly.
• Check that the release handle works correctly. The message
• Check travel and deceleration.
• Check if the impact forces are compliant with the EN 12453 and EN 12445 standards.
• Check that the safety devices are activated correctly.
• If the battery kit is installed, disconnect from mains and check that the batteries are working.
• Disconnect from mains power and disconnect the batteries (if used), then reconnect. Starting with the gate stopped in an
intermediate position, check that the position recovery procedure is completed correctly for both the open and closed positions.
• Check that the limit switches are set correctly and function correctly. If necessary, adjust the motor installation
position.
• Check that there is a gap of at least 2-3 cm between the gate and the mechanical stop at the end of the manoeuvre.
Declaration CE of Conformity
The undersigned Dino Florian, legal representative of Roger Technology - Via Botticelli 8, 31021 Mogliano V.to
(TV) DECLARES that the B70/1DCHP digital control unit is compliant with the provisions established by Community
directives:
– 2014/35/UE LVD Directive
– 2014/30/UE EMC Directive
– 2014/53/UE RED Directive
– 2011/65/UE RoHS Directive
and that all the standards and/or technical requirements indicated as follows have been applied:
EN 61000-6-3
EN IEC 61000-6-2
EN 60335-1
Place: Mogliano V.to
,
and
), recovering the position control with maximum accuracy.
Date: 02/05/2016
,
and
), to restore position control with absolute precision.
Signature
and/
