Simons Voss Technologies PegaSys Door Handle 4.1 Kurzanleitung Seite 7

PegaSys Door Handle 4.1 Stationary installation

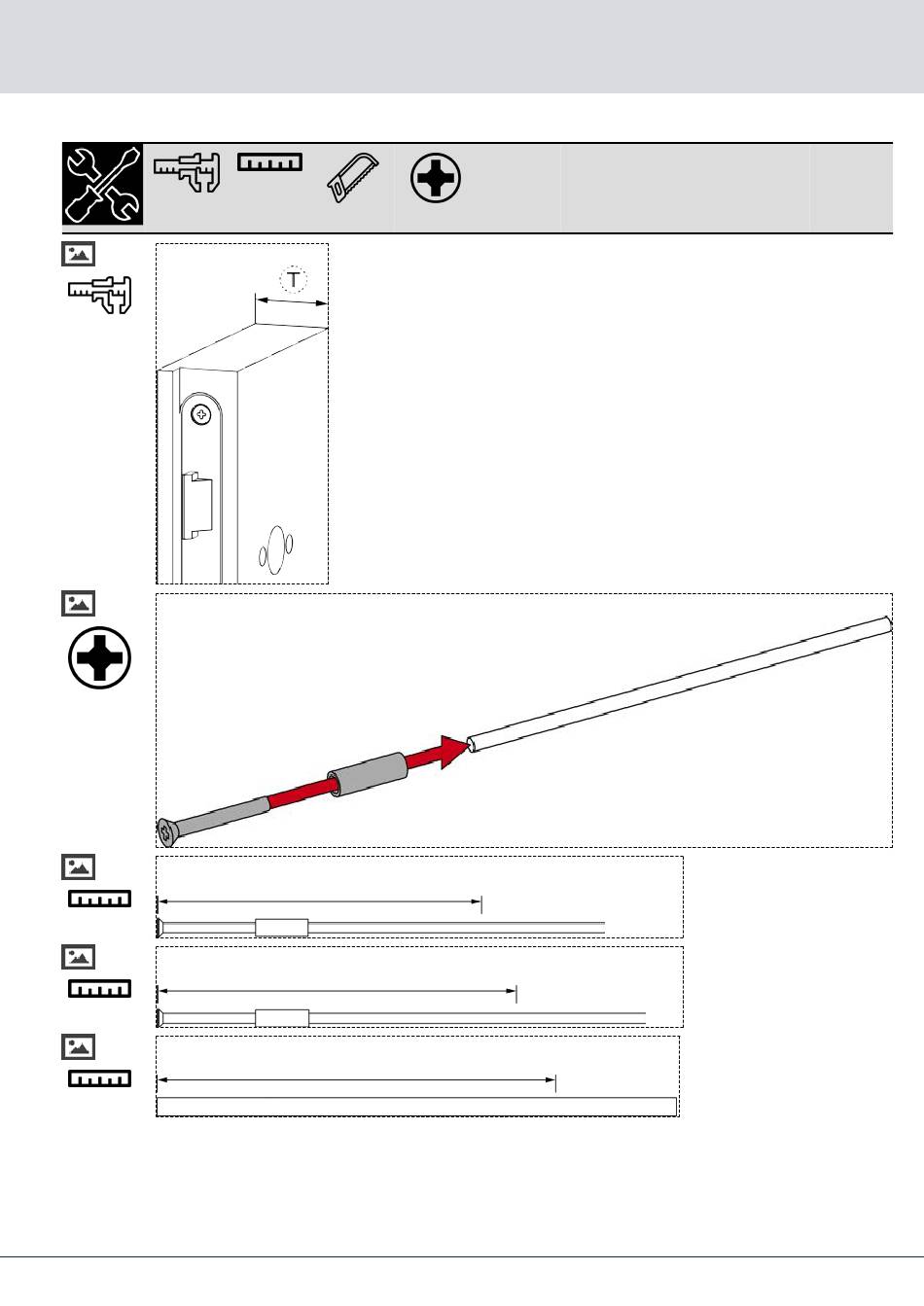

7. For door thickness X: prepare threaded rods and spindle
*X
11
*X
12
PH2
*X
13
2× L1: door thickness - 8 mm (±3 mm)
*X
14
2× L2: door thickness + 8 mm (±3 mm)
*X
15
Door thickness + 37 mm (±4 mm)
Abbildungen/Images
7. For door thickness X: prepare threaded rods and spindle
PH2
7 / 44
