Simons Voss Technologies PegaSys Door Handle 4.1 Kurzanleitung Seite 15

PegaSys Door Handle 4.1 Stationary installation
Ø mortise lock fastening hole
5.5 mm–6.3 mm
6.4 mm–7.3 mm
7.4 mm–8.7 mm
≥ 8.8 mm
37
PH2
1.1 Nm
±10%
38
PH2
1.1 Nm
±10%
Abbildungen/Images
Adapter sleeves
No adapter sleeves
6.4 mm
7.4 mm
8.8 mm

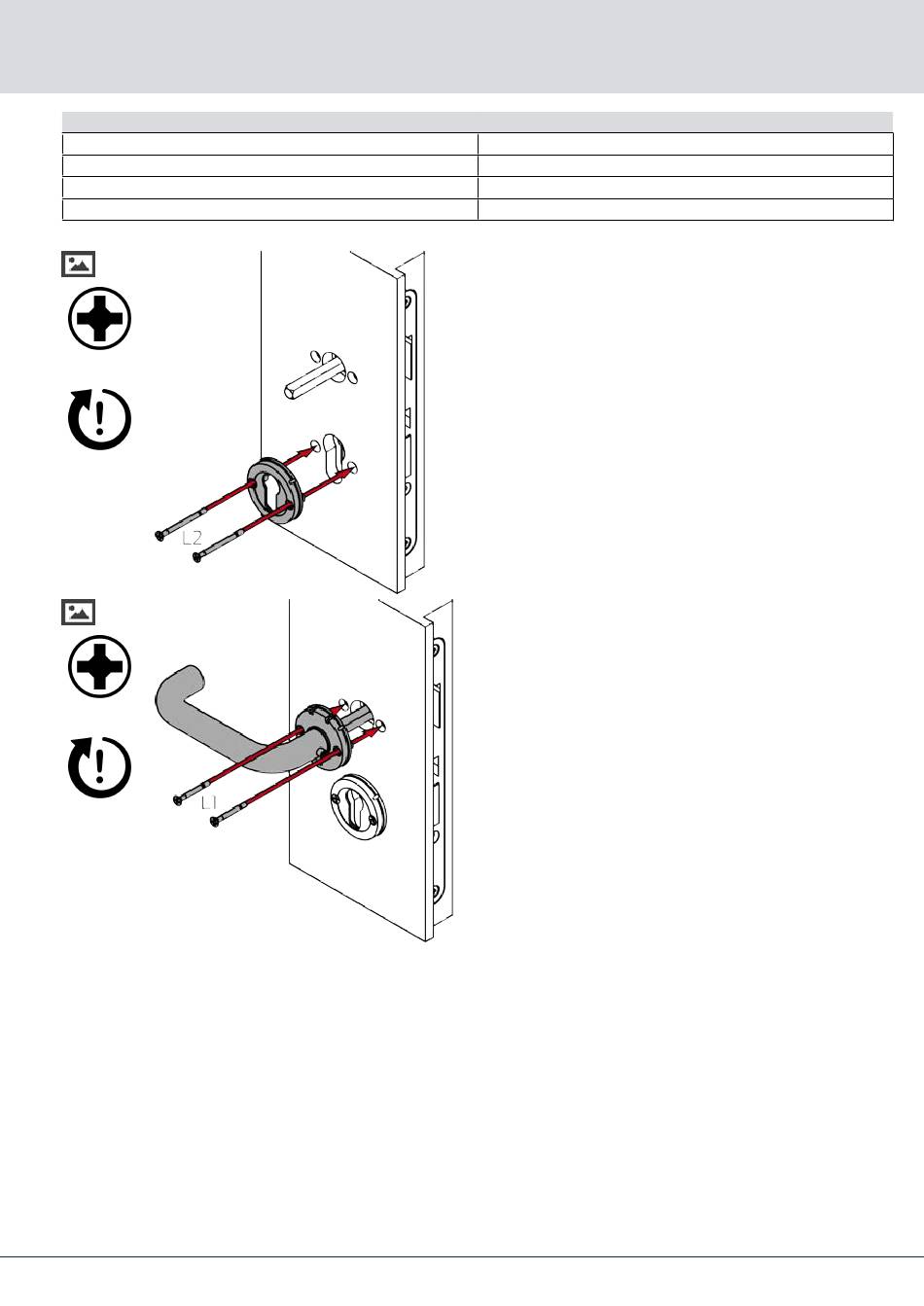

9. Installing the fitting
15 / 44
