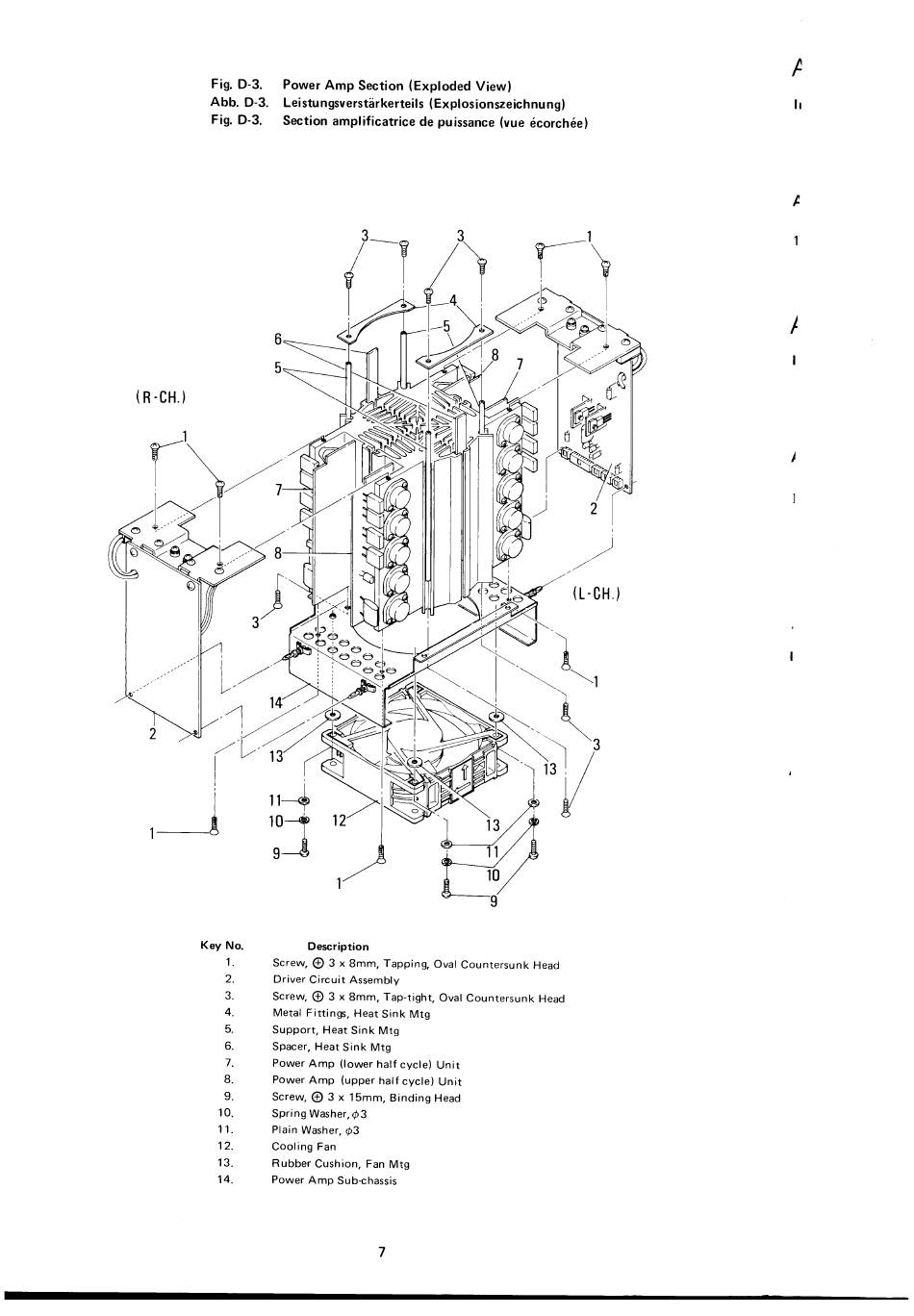

Fig. D-3.
Power Amp Section (Exploded View)
Abb. D-3.
Leistungsverstårkerteils (Explosionszeichnung)
Fiß D-3.
Section amplificatrice de puissance (vue écorchée)
14
11
12
10
Key No.
Description
Screw, @ 3 x 8mm, Tapping, Oval Countersunk Head
Driver Circuit Assembly
Screw. 0 3 x 8mm. Tap-tight, Oval Countersunk Head
Metal Fittins. Heat Sink Mtg
Support, Heat Sink Mtg
Spacer. Heat Sink Mtg
Power Amp (lower half cycle) unit
Power Amp (upper half cycle) Unit
Screw. 0 3 x 15mm, Binding Head
10.
Spring Washer, 03
11. Plain Washer. 03
12. Cooling Fan
Rubber Cushion, Fan Mtg
13.
14. Power Amp Sub-chassis
(I-CH.)
13
13
10
