Assembly
Assembly

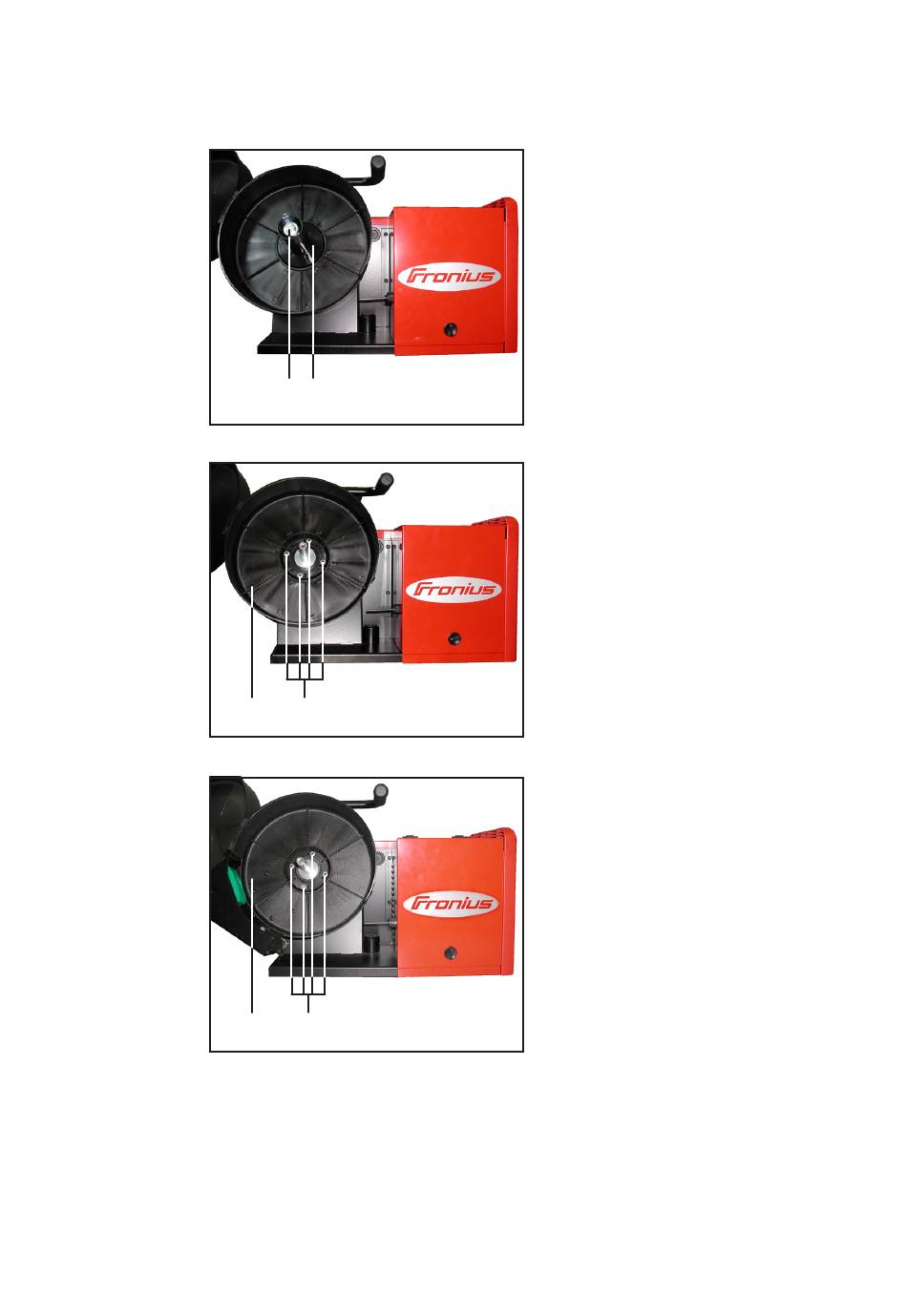

Fig. 1 Dismantle brake
Fig. 2 Dismantle wire spool cover
Fig. 3 Fit wire spool cover
(1) (2)
(4) (3)
(5) (3)
1. Unplug the machine from the mains
2. Open the wire spool cover
3. Remove the wire spool and adapter
4. Unscrew the tensioning screw (1) and
remove the wire roll brake unit (2)
5. Unscrew the hexagon nuts (3) and
remove the wire spool cover (4)
6. Put wire spool cover in place with the
WireEnd Control (5) and screw
hexagon nuts (3) on
