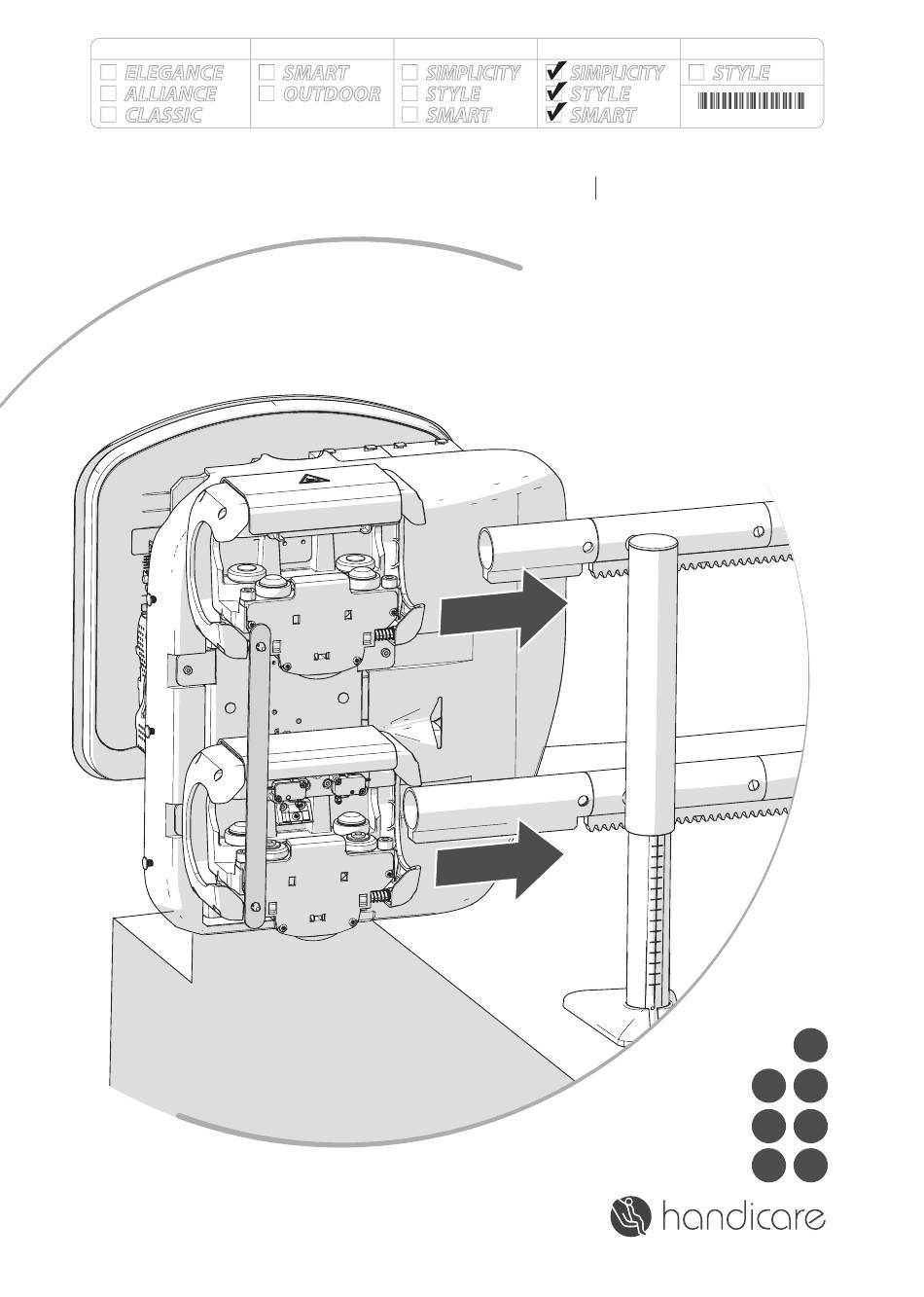

- Seite 1 FREECURVE 3/4 1000 2000 4000 1100 ELEGANCE SMART SIMPLICITY SIMPLICITY STYLE ALLIANCE OUTDOOR STYLE STYLE CLASSIC SMART SMART HANDICARE 4000 I N S T R U C T I O N INSTRUCCIÓN INSTRUCTIE ANLEITUNG INSTRUCTION ISTRUZIONE OSG TEST...
- Seite 2 OSG TEST 3 mm TOOLS REQUIRED 1 OSG TEST INSTRUCTION...
- Seite 3 EXPLANATION Only a technician certified for this lift should service this lift (for more detailled information about the required competence see the installation manual). The latest instructions for the lift and instructions for options are available for download at www.handicarepartners.com. [1]Turn off the lift.
- Seite 4 OSG TEST 3 OSG TEST INSTRUCTION...
- Seite 5 EXPLANATION [4]Firstly, drive the lift down with the remote control. The lift will be travelling at half speed. [5]Then, using two fingers either side of the underpan plate on the OSG activator, and a thumb on the side of the chassis, pull the activator to engage the OSG.
- Seite 6 OSG TEST 5 OSG TEST INSTRUCTION...
- Seite 7 EXPLANATION [6]Attempt to drive the lift. Operation of the OSG is confirmed by the lift not driving and Code “0” on the display on the frontcover (Safeties / OSG active). [7]Turn off the lift{A}. Use the hand winder to move the lift up a short distance to release the OSG{B}. [8]Refit the blanking plug.
- Seite 8 OSG TEST 3 mm 7 OSG TEST INSTRUCTION...
- Seite 9 EXPLANATION [10]Set the OSG activator back to its neutral position. [11]Raise the footplate{A} and check that the OSG Switch Plate is free to move left and right{B}. Lower the foot- plate{C}. [12]Refit{A} and fasten{B} the front cover from the power pack. [13]Turn on the lift.
