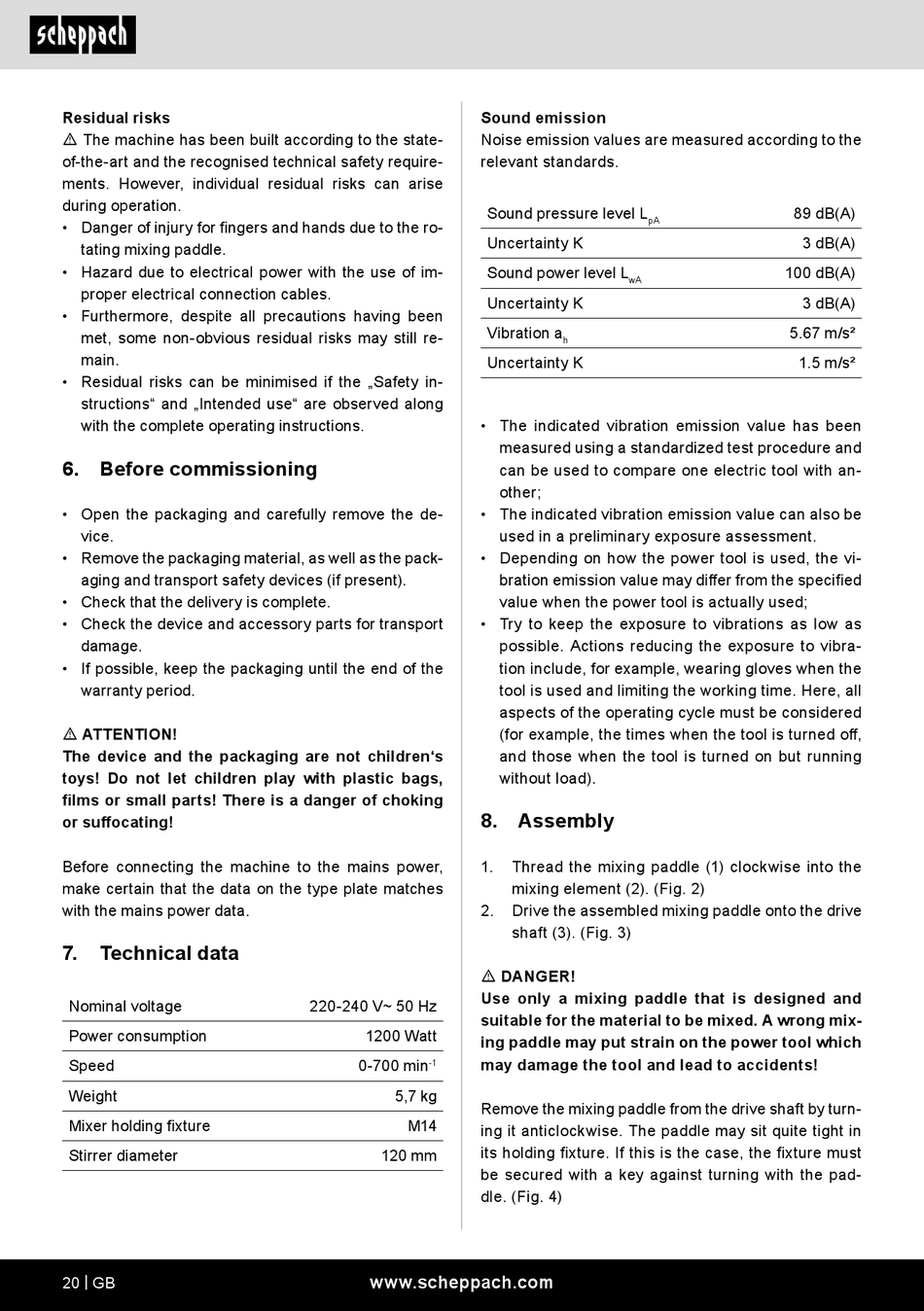

Scheppach PM1200 Original Bedienungsanleitung Seite 20

Residual risks
m The machine has been built according to the state-
of-the-art and the recognised technical safety require-
ments. However, individual residual risks can arise
during operation.
• Danger of injury for fingers and hands due to the ro-
tating mixing paddle.
• Hazard due to electrical power with the use of im-
proper electrical connection cables.
• Furthermore, despite all precautions having been
met, some non-obvious residual risks may still re-
main.
• Residual risks can be minimised if the „Safety in-
structions" and „Intended use" are observed along
with the complete operating instructions.
6. Before commissioning
• Open the packaging and carefully remove the de-
vice.
• Remove the packaging material, as well as the pack-
aging and transport safety devices (if present).
• Check that the delivery is complete.
• Check the device and accessory parts for transport
damage.
• If possible, keep the packaging until the end of the
warranty period.
m ATTENTION!
The device and the packaging are not children's
toys! Do not let children play with plastic bags,
films or small parts! There is a danger of choking
or suffocating!
Before connecting the machine to the mains power,
make certain that the data on the type plate matches
with the mains power data.
7. Technical data
Nominal voltage
Power consumption
Speed
Weight
Mixer holding fixture
Stirrer diameter
20 | GB
Sound emission
Noise emission values are measured according to the
relevant standards.
• The indicated vibration emission value has been
• The indicated vibration emission value can also be
• Depending on how the power tool is used, the vi-
• Try to keep the exposure to vibrations as low as
8. Assembly
1.
2.
m DANGER!
Use only a mixing paddle that is designed and
220-240 V~ 50 Hz
suitable for the material to be mixed. A wrong mix-
1200 Watt
ing paddle may put strain on the power tool which
may damage the tool and lead to accidents!
0-700 min
-1
5,7 kg
Remove the mixing paddle from the drive shaft by turn-
M14
ing it anticlockwise. The paddle may sit quite tight in
its holding fixture. If this is the case, the fixture must
120 mm
be secured with a key against turning with the pad-
dle. (Fig. 4)
www.scheppach.com
Sound pressure level L
pA
Uncertainty K
Sound power level L
wA
Uncertainty K
Vibration a
h
Uncertainty K
measured using a standardized test procedure and
can be used to compare one electric tool with an-
other;
used in a preliminary exposure assessment.
bration emission value may differ from the specified
value when the power tool is actually used;
possible. Actions reducing the exposure to vibra-
tion include, for example, wearing gloves when the
tool is used and limiting the working time. Here, all
aspects of the operating cycle must be considered
(for example, the times when the tool is turned off,
and those when the tool is turned on but running
without load).
Thread the mixing paddle (1) clockwise into the
mixing element (2). (Fig. 2)
Drive the assembled mixing paddle onto the drive
shaft (3). (Fig. 3)
89 dB(A)
3 dB(A)
100 dB(A)
3 dB(A)
5.67 m/s²
1.5 m/s²
