Installation and start-up
6 Installation and start-up
Personnel:
Protective equipment:
6.1 Installation
6.1.1 Electrical connections
6.1.1.1 Setting the mains voltage
CAUTION!
The device has been pre-set to 230 V mains voltage! If the mains voltage is
115 V, rotate the voltage selector (pos. 1) by 180° and replace the fuse
(pos. 2) with the 115 V (250 mA) fuse included in the package.

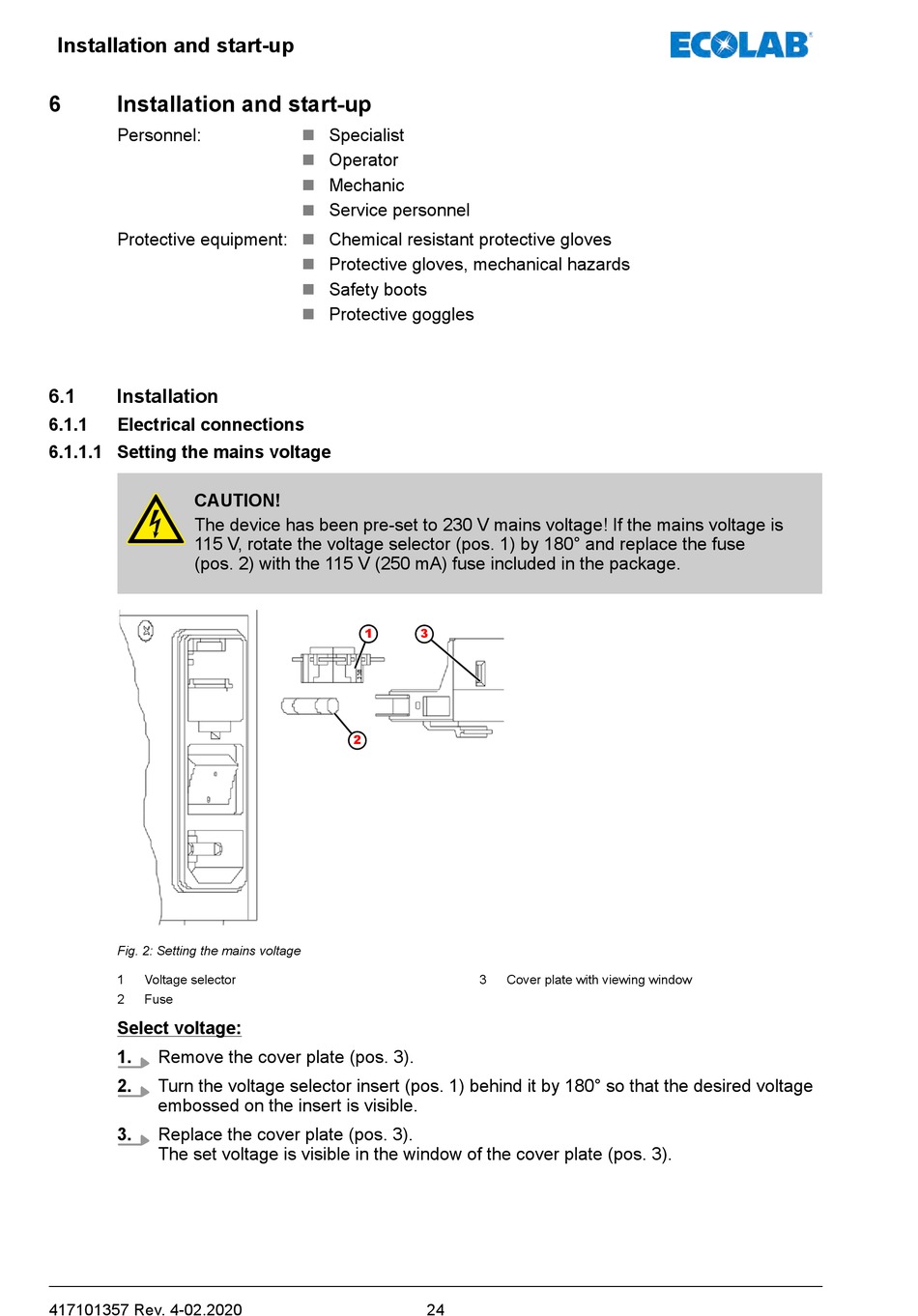

Fig. 2: Setting the mains voltage
1 Voltage selector
2 Fuse
Select voltage:
1. Remove the cover plate (pos. 3).
2. Turn the voltage selector insert (pos. 1) behind it by 180° so that the desired voltage
embossed on the insert is visible.
3. Replace the cover plate (pos. 3).
The set voltage is visible in the window of the cover plate (pos. 3).
417101357 Rev. 4-02.2020
n Specialist
n Operator
n Mechanic
n Service personnel
n Chemical resistant protective gloves
n Protective gloves, mechanical hazards
n Safety boots
n Protective goggles
1 3
2
24
3 Cover plate with viewing window
