A

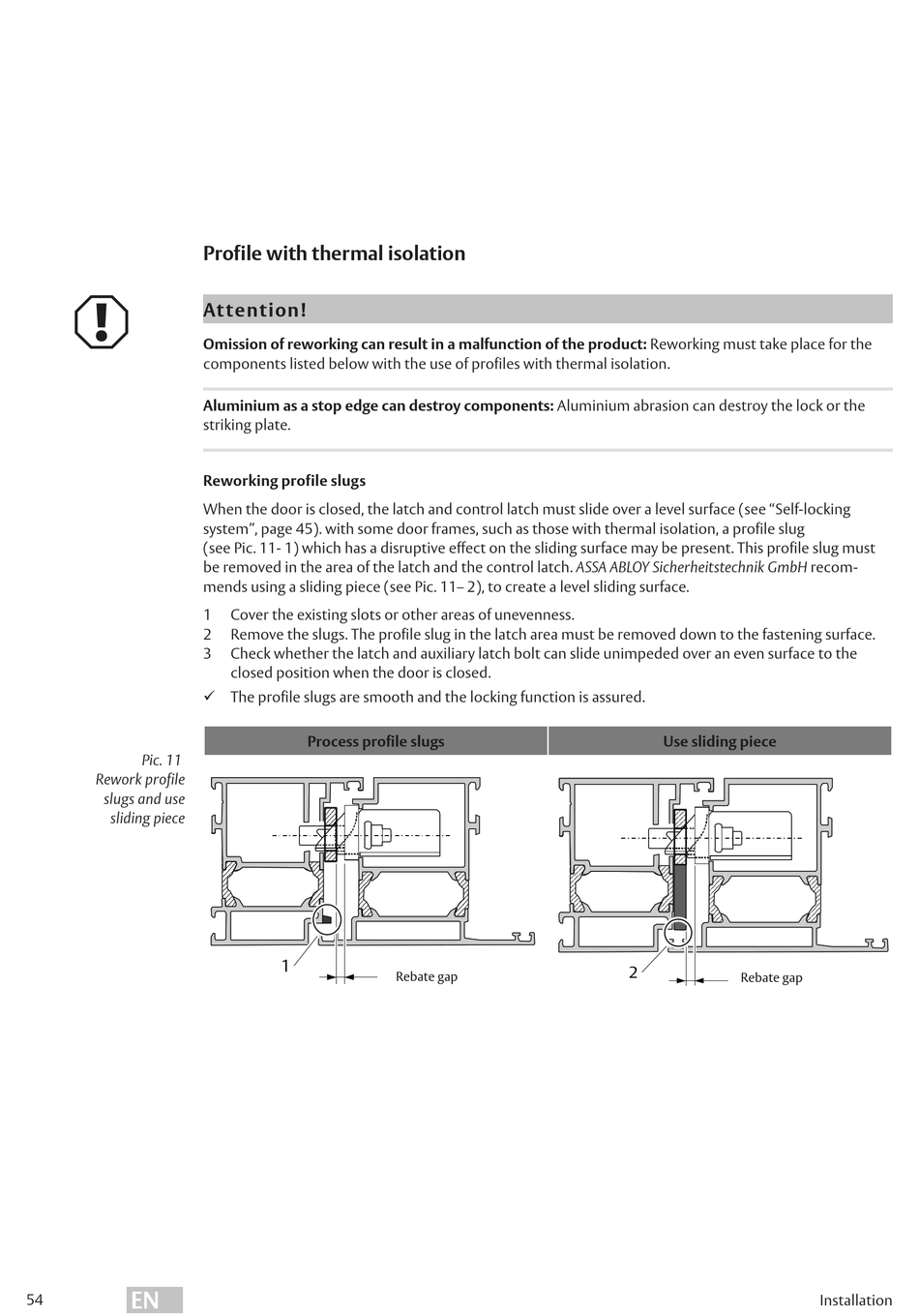

Pic. 11
Rework profile
slugs and use
sliding piece
EN
54

Profile with thermal isolation

At tention!
Omission of reworking can result in a malfunction of the product: Reworking must take place for the
components listed below with the use of profiles with thermal isolation.
Aluminium as a stop edge can destroy components: Aluminium abrasion can destroy the lock or the
striking plate.

Reworking profile slugs

When the door is closed, the latch and control latch must slide over a level surface (see "Self-locking
system", page 45). with some door frames, such as those with thermal isolation, a profile slug
(see Pic. 11- 1) which has a disruptive effect on the sliding surface may be present. This profile slug must
be removed in the area of the latch and the control latch. ASSA ABLOY Sicherheitstechnik GmbH recom-
mends using a sliding piece (see Pic. 11– 2), to create a level sliding surface.
1 Cover the existing slots or other areas of unevenness.
2 Remove the slugs. The profile slug in the latch area must be removed down to the fastening surface.
3 Check whether the latch and auxiliary latch bolt can slide unimpeded over an even surface to the
closed position when the door is closed.
9 The profile slugs are smooth and the locking function is assured.
Process profile slugs
1
Rebate gap
Use sliding piece
2
Rebate gap
Installation
