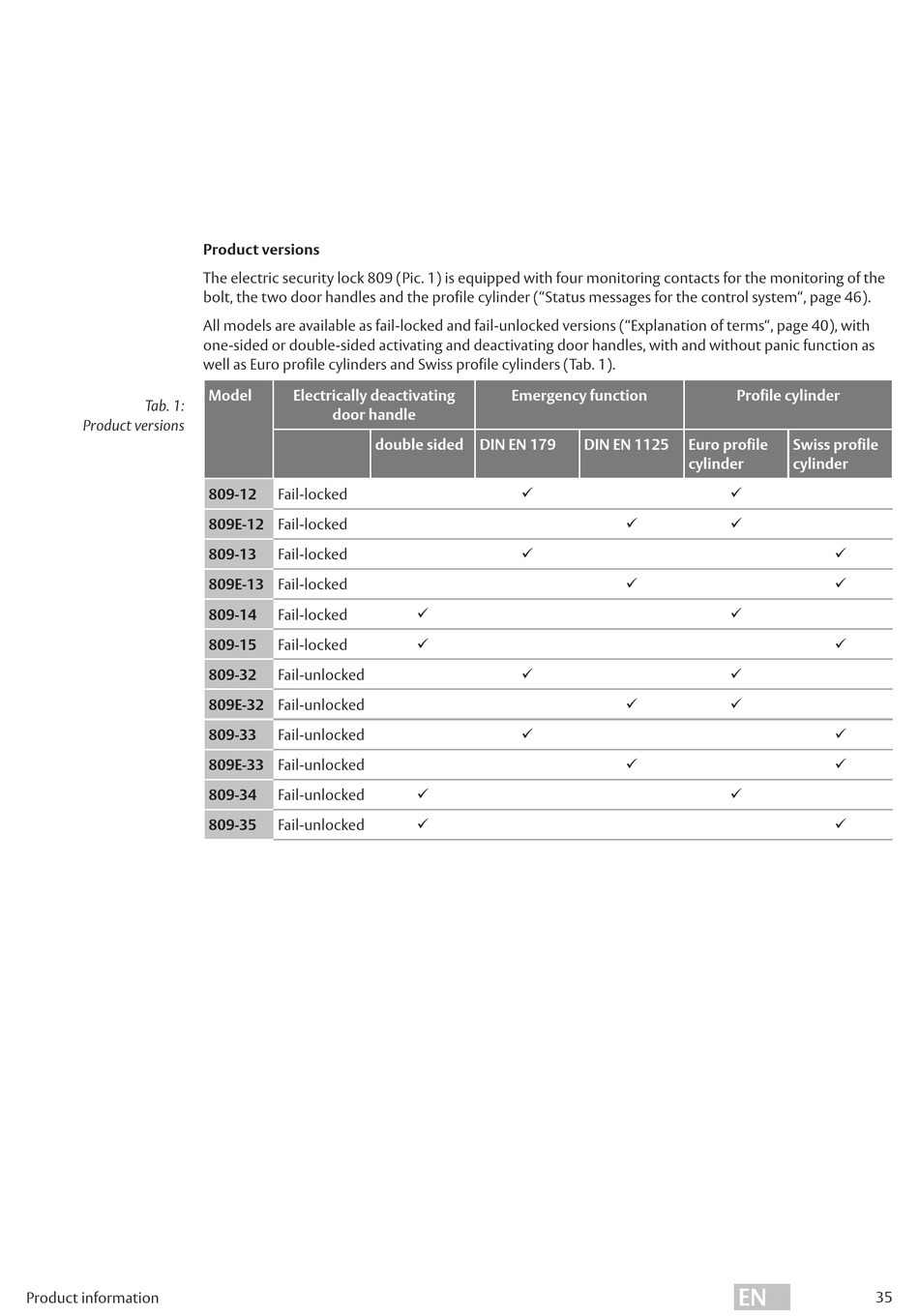

Tab. 1 :

Product versions

Product information
Product versions
The electric security lock 809 (Pic. 1) is equipped with four monitoring contacts for the monitoring of the
bolt, the two door handles and the profile cylinder ("Status messages for the control system", page 46).
All models are available as fail-locked and fail-unlocked versions ("Explanation of terms", page 40), with
one-sided or double-sided activating and deactivating door handles, with and without panic function as
well as Euro profile cylinders and Swiss profile cylinders (Tab. 1).
Model Electrically deactivating
door handle
double sided DIN EN 179
809-12 Fail-locked
809E-12 Fail-locked
809-13 Fail-locked
809E-13 Fail-locked
809-14 Fail-locked
809-15 Fail-locked
809-32 Fail-unlocked
809E-32 Fail-unlocked
809-33 Fail-unlocked
809E-33 Fail-unlocked
809-34 Fail-unlocked
809-35 Fail-unlocked
Emergency function
DIN EN 1125
9
9
9
9
9
9
9
9
Profile cylinder
Euro profile Swiss profile
cylinder cylinder
9
9 9
9
9
9
9 9
9
9
