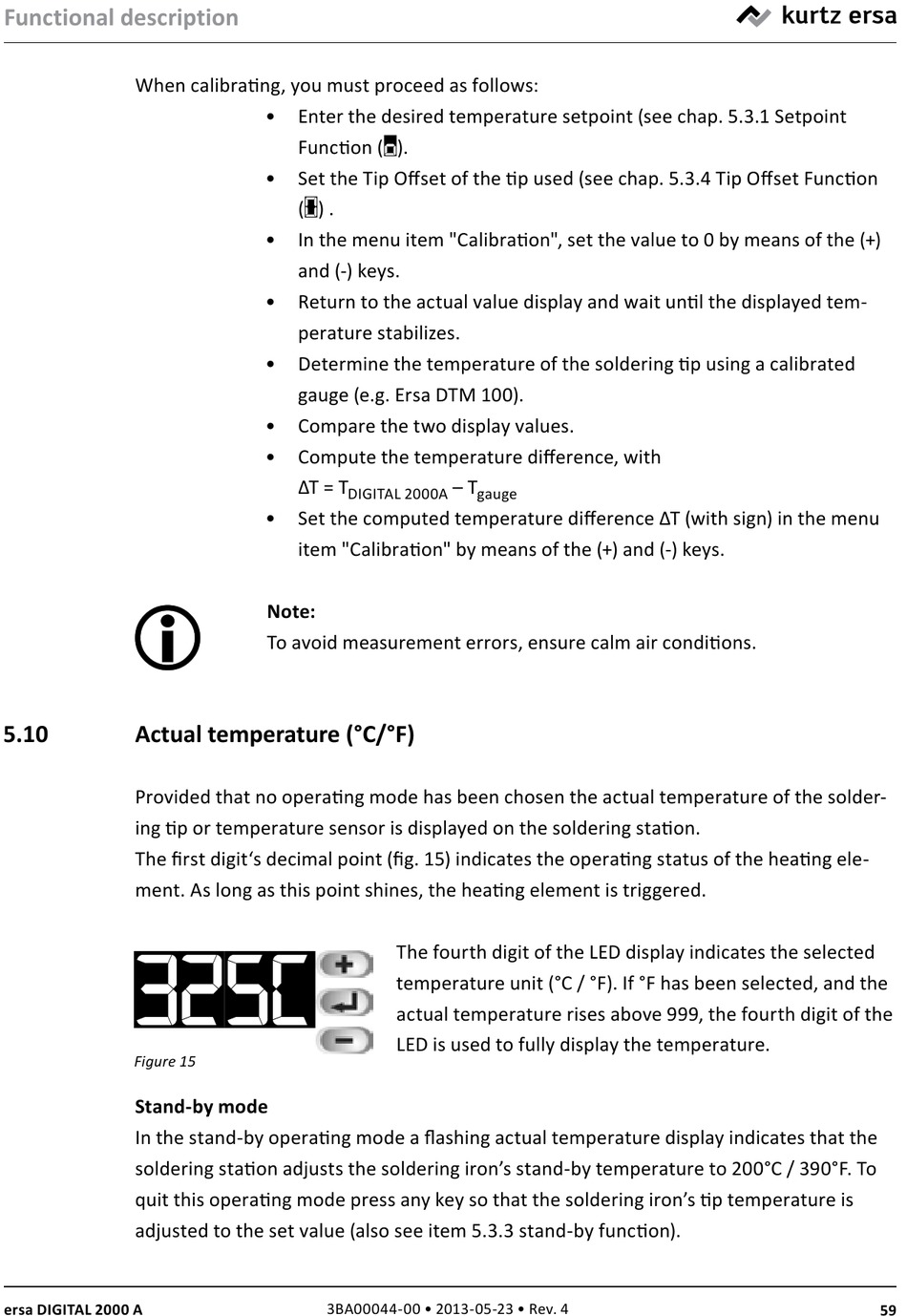

Functional description
When calibrating, you must proceed as follows:
5.10
Actual temperature (°C/°F)
Provided that no operating mode has been chosen the actual temperature of the solder-
ing tip or temperature sensor is displayed on the soldering station.
The first digit's decimal point (fig. 15) indicates the operating status of the heating ele-
ment. As long as this point shines, the heating element is triggered.
325C
Figure 15
Stand-by mode
In the stand-by operating mode a flashing actual temperature display indicates that the
soldering station adjusts the soldering iron's stand-by temperature to 200°C / 390°F. To
quit this operating mode press any key so that the soldering iron's tip temperature is
adjusted to the set value (also see item 5.3.3 stand-by function).
ersa DIGITAL 2000 A
•
Enter the desired temperature setpoint (see chap. 5.3.1 Setpoint
Function (o).
•
Set the Tip Offset of the tip used (see chap. 5.3.4 Tip Offset Function
(O) .
•
In the menu item "Calibration", set the value to 0 by means of the (+)
and (-) keys.
•
Return to the actual value display and wait until the displayed tem-
perature stabilizes.
•
Determine the temperature of the soldering tip using a calibrated
gauge (e.g. Ersa DTM 100).
•
Compare the two display values.
•
Compute the temperature difference, with
∆T = T
DIGITAL 2000A
•
Set the computed temperature difference ∆T (with sign) in the menu
item "Calibration" by means of the (+) and (-) keys.
Note:
To avoid measurement errors, ensure calm air conditions.
The fourth digit of the LED display indicates the selected
temperature unit (°C / °F). If °F has been selected, and the
actual temperature rises above 999, the fourth digit of the
LED is used to fully display the temperature.
3BA00044-00 • 2013-05-23 • Rev. 4
– T
gauge
