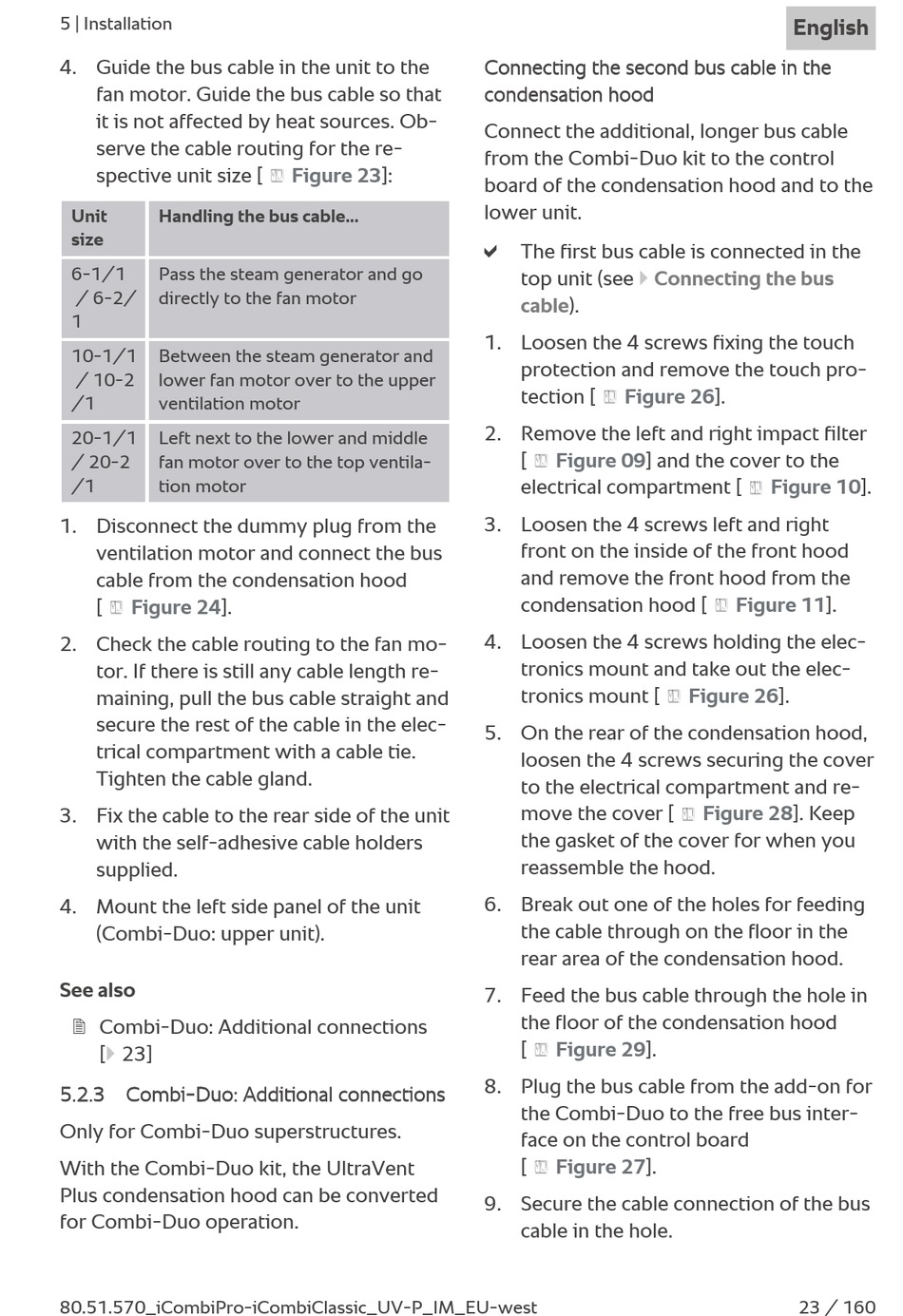

5 | Installation
4. Guide the bus cable in the unit to the
fan motor. Guide the bus cable so that
it is not affected by heat sources. Ob-
serve the cable routing for the re-
spective unit size [
Unit
Handling the bus cable...
size
6-1/1
Pass the steam generator and go
/ 6-2/
directly to the fan motor
1
10-1/1
Between the steam generator and
/ 10-2
lower fan motor over to the upper
/1
ventilation motor
20-1/1
Left next to the lower and middle
/ 20-2
fan motor over to the top ventila-
/1
tion motor
1. Disconnect the dummy plug from the
ventilation motor and connect the bus
cable from the condensation hood
[
Figure
24].
2. Check the cable routing to the fan mo-
tor. If there is still any cable length re-
maining, pull the bus cable straight and
secure the rest of the cable in the elec-
trical compartment with a cable tie.
Tighten the cable gland.
3. Fix the cable to the rear side of the unit
with the self-adhesive cable holders
supplied.
4. Mount the left side panel of the unit
(Combi-Duo: upper unit).
See also
2 Combi-Duo: Additional connections
[} 23]
5.2.3 Combi-Duo: Additional connections
Only for Combi-Duo superstructures.
With the Combi-Duo kit, the UltraVent
Plus condensation hood can be converted
for Combi-Duo operation.
80.51.570_iCombiPro-iCombiClassic_UV-P_IM_EU-west
Figure
23]:
Connecting the second bus cable in the
condensation hood
Connect the additional, longer bus cable
from the Combi-Duo kit to the control
board of the condensation hood and to the
lower unit.
a
The first bus cable is connected in the
top unit (see
} Connecting the bus
cable).
1. Loosen the 4 screws fixing the touch
protection and remove the touch pro-
tection [
Figure
2. Remove the left and right impact filter
[
Figure
09] and the cover to the
electrical compartment [
3. Loosen the 4 screws left and right
front on the inside of the front hood
and remove the front hood from the
condensation hood [
4. Loosen the 4 screws holding the elec-
tronics mount and take out the elec-
tronics mount [
5. On the rear of the condensation hood,
loosen the 4 screws securing the cover
to the electrical compartment and re-
move the cover [
the gasket of the cover for when you
reassemble the hood.
6. Break out one of the holes for feeding
the cable through on the floor in the
rear area of the condensation hood.
7. Feed the bus cable through the hole in
the floor of the condensation hood
[
Figure
29].
8. Plug the bus cable from the add-on for
the Combi-Duo to the free bus inter-
face on the control board
[
Figure
27].
9. Secure the cable connection of the bus
cable in the hole.
English
26].
Figure
10].
Figure
11].
Figure
26].
Figure
28]. Keep
23 / 160
