The Power pack 3080 supplies electricity to the
ATS3080.
To the interfaces on both sides of the housing,
à "Interface overview, Power pack 3080" on
page 15

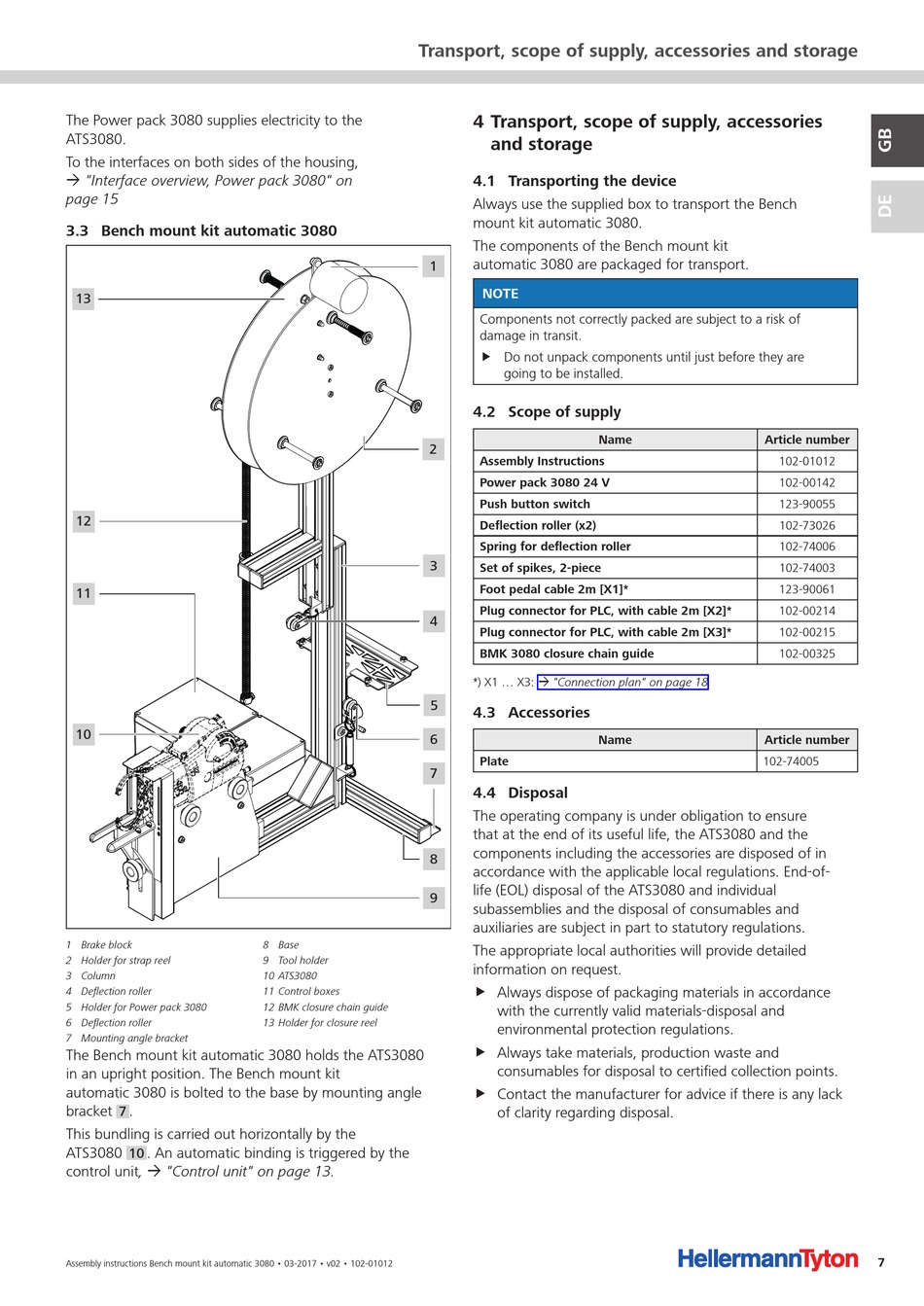

3 .3 Bench mount kit automatic 3080
13
12
11
10
1 Brake block
2 Holder for strap reel
3 Column
4 Deflection roller
5 Holder for Power pack 3080
6 Deflection roller
7 Mounting angle bracket
The Bench mount kit automatic 3080 holds the ATS3080
in an upright position. The Bench mount kit
automatic 3080 is bolted to the base by mounting angle
bracket .
7
This bundling is carried out horizontally by the
ATS3080 . An automatic binding is triggered by the
10
control unit, à "Control unit" on page 13.
Assembly instructions Bench mount kit automatic 3080 • 03-2017 • v02 • 102-01012
Transport, scope of supply, accessories and storage
1
2
3
4
5
6
7
8
9
8 Base
9 Tool holder
10 ATS3080
11 Control boxes
12 BMK closure chain guide
13 Holder for closure reel
4 Transport, scope of supply, accessories
and storage
4 .1 Transporting the device
Always use the supplied box to transport the Bench
mount kit automatic 3080.
The components of the Bench mount kit
automatic 3080 are packaged for transport.
NOTE
Components not correctly packed are subject to a risk of
damage in transit.
f Do not unpack components until just before they are
going to be installed.
4 .2 Scope of supply
Name
Assembly Instructions
Power pack 3080 24 V
Push button switch
Deflection roller (x2)
Spring for deflection roller
Set of spikes, 2-piece
Foot pedal cable 2m [X1]*
Plug connector for PLC, with cable 2m [X2]*
Plug connector for PLC, with cable 2m [X3]*
BMK 3080 closure chain guide
*) X1 ... X3: à "Connection plan" on page 18
4 .3 Accessories
Name
Plate
4 .4 Disposal
The operating company is under obligation to ensure
that at the end of its useful life, the ATS3080 and the
components including the accessories are disposed of in
accordance with the applicable local regulations. End-of-
life (EOL) disposal of the ATS3080 and individual
subassemblies and the disposal of consumables and
auxiliaries are subject in part to statutory regulations.
The appropriate local authorities will provide detailed
information on request.
f Always dispose of packaging materials in accordance
with the currently valid materials-disposal and
environmental protection regulations.
f Always take materials, production waste and
consumables for disposal to certified collection points.
f Contact the manufacturer for advice if there is any lack
of clarity regarding disposal.
Article number
102-01012
102-00142
123-90055
102-73026
102-74006
102-74003
123-90061
102-00214
102-00215
102-00325
Article number
102-74005
